1-31

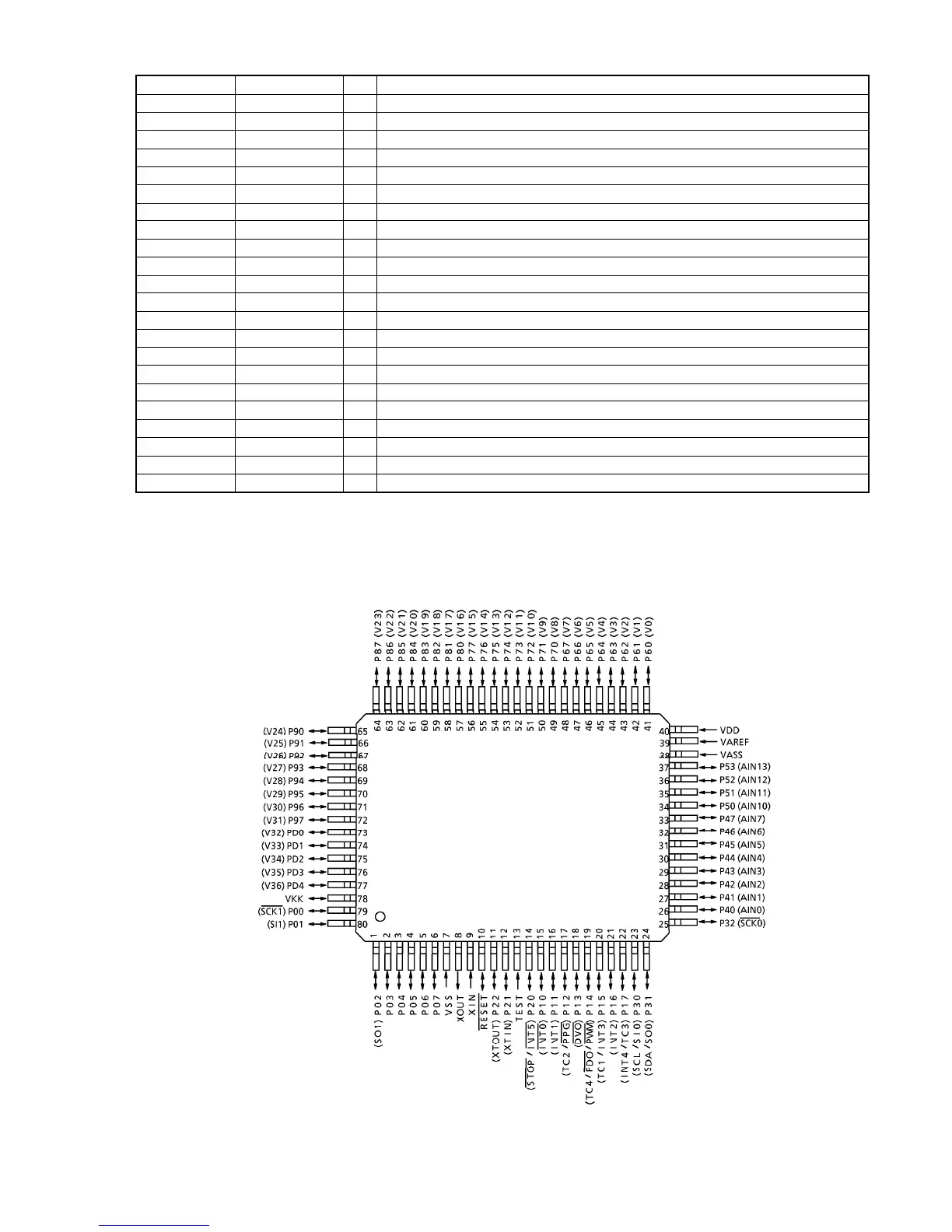

Pin No. Port Name I/O FUNCTION
59 P19 O VFT Segment output
60 P18 O VFT Segment output
61 P17 O VFT Segment output
62 P16 O VFT Segment output
63 P15 O VFT Segment output
64 P14 O VFT Segment output
65 P13 O VFT Segment output
66 P12 O VFT Segment output
67 P11 O VFT Segment output
68 P10 O VFT Segment output
69 P9 O VFT Segment output
70 P8 O VFT Segment output
71 P7 O VFT Segment output
72 P6 O VFT Segment output
73 P5 O VFT Segment output
74 P4 O VFT Segment output
75 P3 O VFT Segment output
76 P2 O VFT Segment output
77 P1 O VFT Segment output
78 VKK VFT Powewr supply
79 SCK O Serial clock output for Mecha unit
80 SIN(M to F) I Serial data input from Mecha unit
TMP87CH74
To Next Page
