1-5

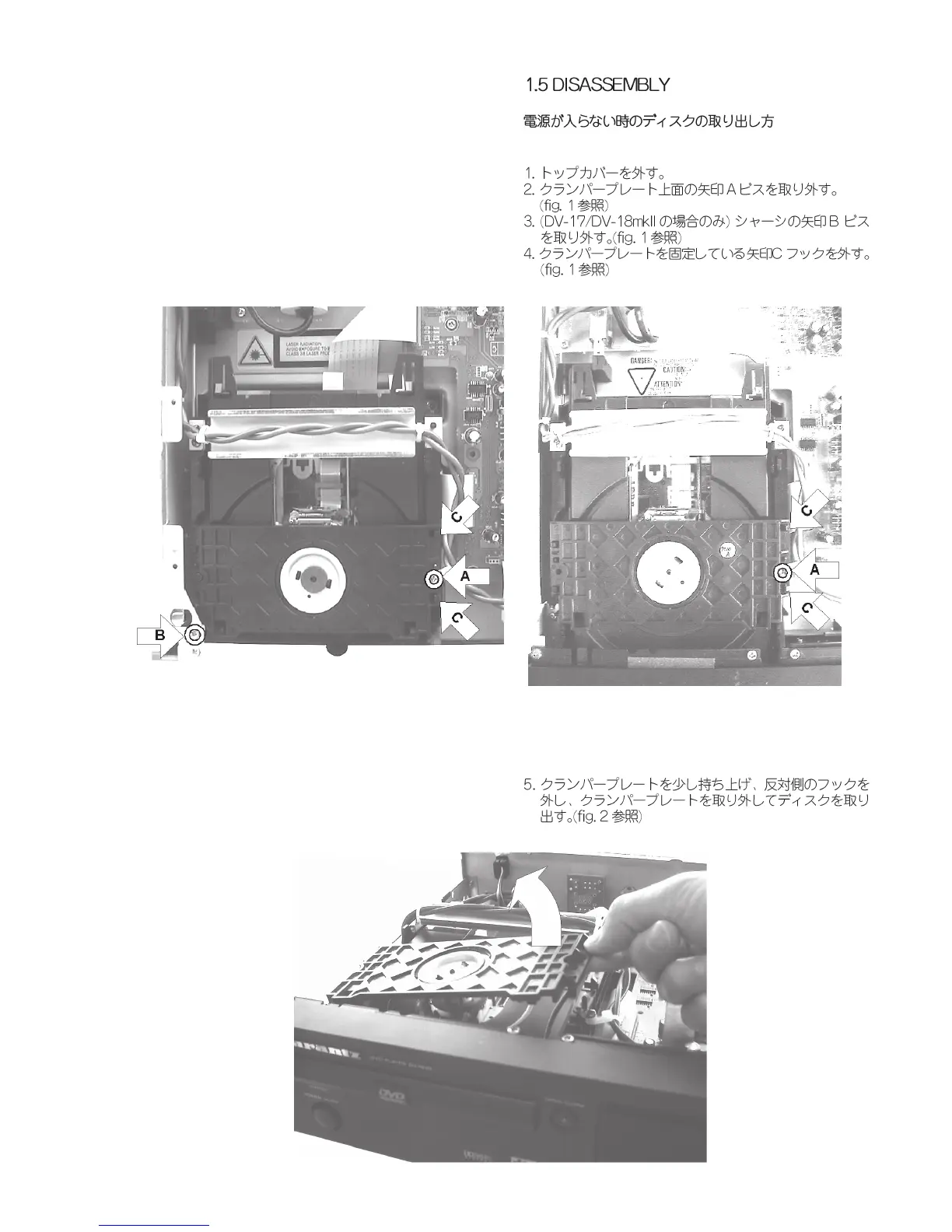

1.5 DISASSEMBLY
Taking the disc out for EMERGENCY (For example: when
It is not possible to turn on the product. The disc cannot
be taken out from the loader.)
1. Remove the top cover (001D).
2. Remove the A screw from the bridge on the loader base.
(see fig. 1)
3. Remove the B screw from the chassis <DV-17/DV-18mkII
only>. (see fig. 1)
4. Remove the two C hooks of the bridge from the loader
base. (see fig. 1)
5. Remove the bridge with clamper (see fig. 2). Then, It is
possible to take the disc out from the loader.
Fig. 1
DV7010DV-17/DV-18mkII
Fig. 2
