Marantz DV7010 - DVD Loader Exterior Parts List

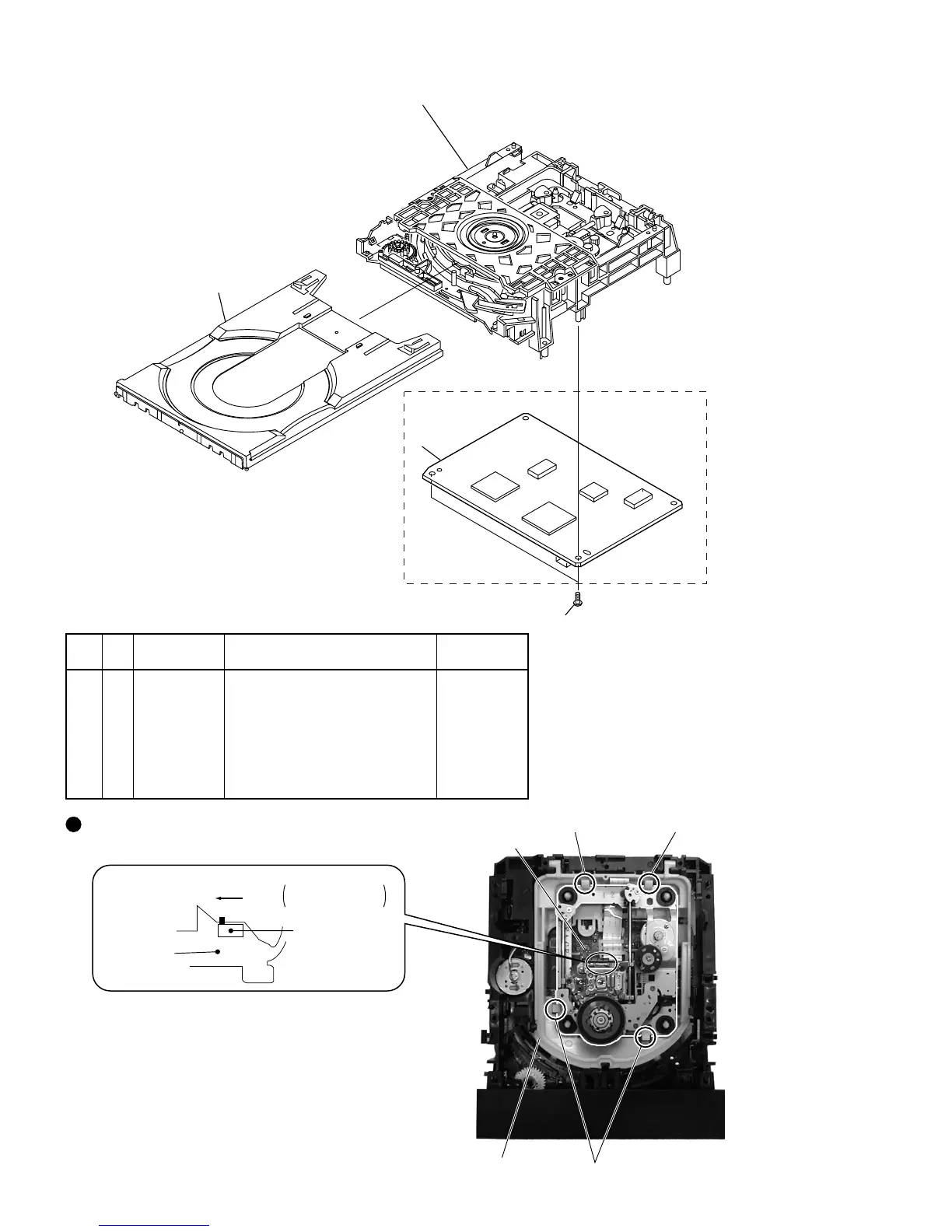

2.1 EXTERIOR
1
2
4
Refer to
"Service Manual for
DVD PCB Module"
3
(1) EXTERIOR PARTS LIST
2-1
Mark No.
Part No.
Description
Part No.
(for PCS) (for MJI)
1 — VWS1446, DVDM Assy DB-VPB210 ZK402K0210
1 — VWS1449, DVDM Assy DB-VPB211 ZK324J0210
1 9965 000 07628 VWS1447, DVDM Assy DB-VPB212 ZK402K0230
1 — VWS1448, DVDM Assy DB-VPB213 ZK402K0220
1 — VWS1450, DVDM Assy DB-VPB214 ZK324J0220
1 — VWS1451, DVDM Assy DB-VPB215 ZK408K0210
NSP 2 — VWT1174, Loader Assy —
3 9965 000 07934 VNL1858, Tray 402K163210
NSP 4 — PPZ30P080FMC, Screw —
Open
POWER SUPPLY
ASSY side
Short SW
Pickup
Flexible
Cable
Short
DISASSEMBLY OF TRAVERSE
MECHANISM ASSY
Traverse Mechanism
Assy-S
Float Base
(Top View)
Unhook (×2)
Unhook
Unhook
