Marantz DV7010 - Traverse Mechanism Assembly Parts List

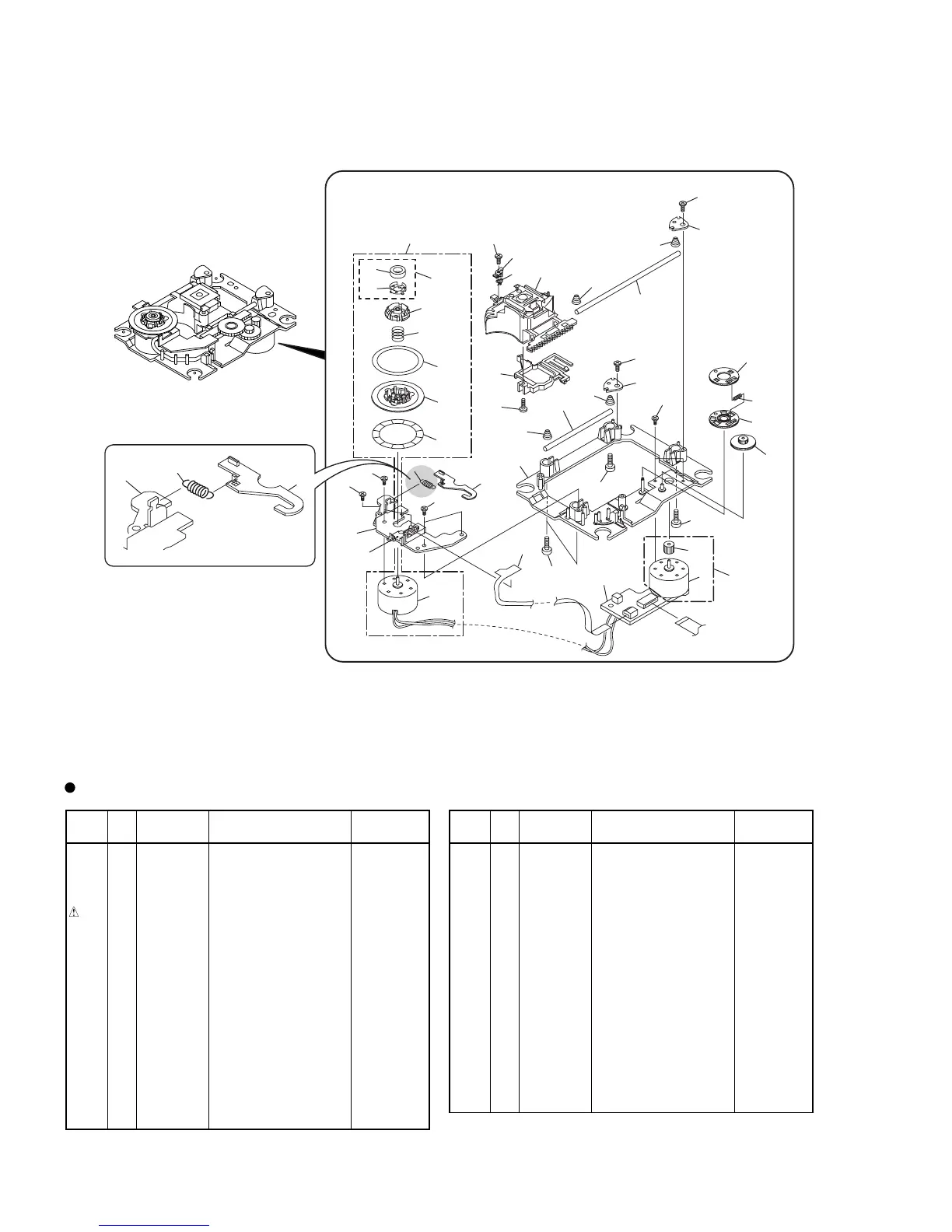

2.3 TRAVERSE MECHANISM ASSY-S
TRAVERSE MECHANISM ASSY-S PARTS LIST
• Top View
30
16
34
19
8
15
10
10
22
33
23
5
14
10
37
18
32
13
10
37
18
26
25
27
29
7
7
7
3
1
11
28
33
6
35
20
12
21
4
9
31
37
17
24
37
36
To
DVDM Assy
CN3
2
21
9
17
2-3
NSP 1 — VWG2048, SMEB Assy —
NSP 2 — VWG2009, FGSB Assy —
NSP 3 — VXM1079, Motor —
NSP 4 — VXM1084, Motor —
NSP 5 — VWY1055, Pickup Assy —
NSP 6 — DEC2040, Table Sheet —
NSP 7 — VBA1058, Screw —
NSP 8 — VBH1278, Centering Spring —
9 9965 000 07950 VBH1317, Hook Spring 296W115050
10 9965 000 07951 VBH1303, Skew Spring 296W115060
11 9965 000 07952 VBH1308, Gear Spring 296W115070
NSP 12 — VEC1959, Reflected Sheet —
NSP 13 — VLL1504, Guide Bar —
NSP 14 — VLL1505, Sub-guide Bar —
15 9965 000 07953 VNC1017, Hold Spring 296W115080
NSP 16 — VNE2070, Magnet Holder —
NSP 17 — VNE2154, Motor Base —
NSP 18 — VNE2155, Cover —
NSP 19 — VNL1746, Centering Ring —
NSP 20 — VNL1747, Disc Table —
21 9965 000 07954 VNL1770, Hook 296W258010
NSP 22 — VNL1802, FFC Holder —
NSP 23 — VNL1806, Mechanism Base —
NSP 24 — VNL1807, FG Holder —
25 9965 000 07955 VNL1808, Gear A 296W058090
26 9965 000 07956 VNL1809, Gear B 296W058100
27 9965 000 07957 VNL1810, Gear C 296W058110
28 9965 000 07958 VNL1811, Slider 296W125010
NSP 29 — VNL1814, Gear D —
NSP 30 — VYM1024, Magnet —
NSP 31 — JFZ17P025FZK, Screw —
NSP 32 — JGZ17P028FMC, Screw —
NSP 33 — VBA1051, Screw —
NSP 34 — VXX2507, Magnet Holder Assy —
35 9965 000 07959 VXX2649, Spindle Motor Assy *ZK000290R
36 9965 000 07960 VXX2650, Carriage Motor Assy *ZK000300R
NSP 37 — PBA1069, Screw —-
Mark No.
Part No.
Description
Part No.
(for PCS) (for MJI)
Mark No.
Part No.
Description
Part No.
(for PCS) (for MJI)
