1. TECHNICAL SPECIFICATIONS
General
System
DVD-Video, DVD-Audio, DVD-R/RW, Video CD, Super Audio
CD, CD, MP3 fi les and JPEG fi les
Power requirements
F version...................................................AC 100 V, 50/60 Hz
K version (China)......................................AC 220 V, 50/60 Hz
L version (Taiwan) .........................................AC 110 V, 60 Hz
N version ..................................................AC 230 V, 50/60 Hz
S version...................................................AC 230 V, 50/60 Hz
U version .......................................................AC 120 V, 60 Hz
Power consumption ........................................................ 28 W
Weight .......................................................4.6 kg (10 lb 2 oz)
Dimensions ..................... 440 (W) x 96.3 (H) x 305.5 (D) mm
(17.3 (W) x 3.8 (H) x 12 (D) in.)
Operating temperature ....... +5°C to +35°C (+41°F to +96°F)
Operating humidity ................. 5% to 85% (no condensation)
S-Video output
Y (luminance) - Output level ............................. 1 Vp-p (75 Ω)
C (color) - Output level ...............................286 mVp-p (75 Ω)
Jacks ................................................................S-VIDEO jack
Video output (2 individual outputs)
Output level .......................................................1 Vp-p (75 Ω)
Jacks .......................................................................RCA jack
Component video output (Y, C
B/PB, CR/PR)
Output level ...............................................Y : 1.0 Vp-p (75 Ω)
C
B/PB, CR/PR : 0.7 Vp-p (75 Ω)
Jacks .....................................................................RCA jacks
D1/D2 video output
Output level ...............................................Y : 1.0 Vp-p (75 Ω)
C
B/PB, CR/PR : 0.7 Vp-p (75 Ω)
Jacks ..................................................................... D terminal
HDMI output
Output Terminal ............................................................19-pin

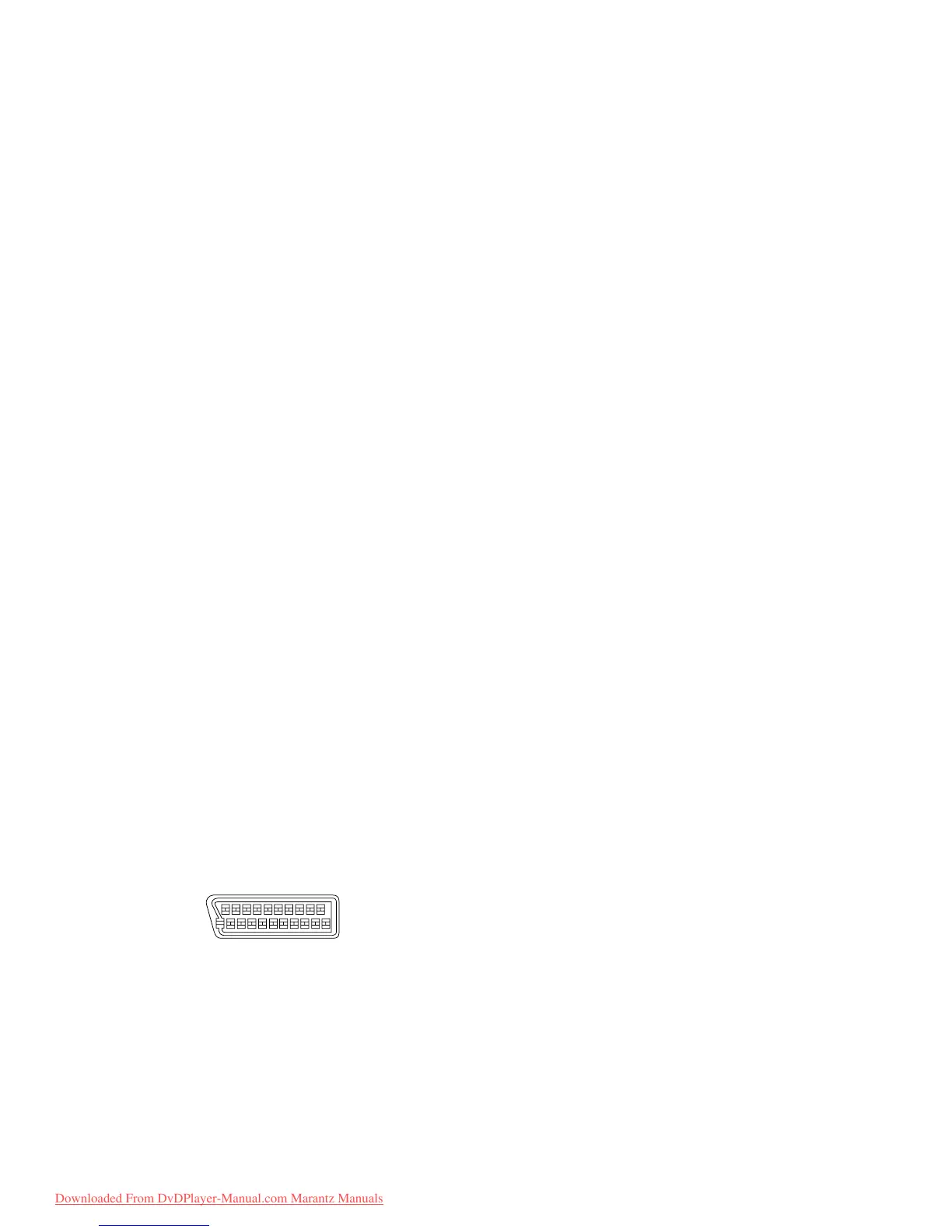

21-pin connector assignment (Europe model only)
AV connector output ....................................21-pin connector
This connector provides the video and audio signals for
connection to a compatible color TV or monitor.
Audio output
Output level
During audio output ............................... 2 Vrms (1kHz, 0 dB)
Number of channels .............................................................2
Jacks .......................................................................RCA jack
Audio output (multi-channel / L, R, C, SW, LS, RS)
Output level
During audio output ............................... 2 Vrms (1kHz, 0 dB)
Number of channels .............................................................6
Jacks .......................................................................RCA jack
Audio characteristics
Frequency response .............. 4Hz to 44kHz (DVD fs: 96kHz)
4Hz to 88kHz (DVD-Audio fs: 192kHz)
S/N ratio ...................................................................... 125 dB
Dynamic range ........................................................... 110 dB
Total harmonic distortion ........................................ 0.0012 %
Wow and fl utter:
Limit of measurement (±0.001% W. PEAK) or lower
Digital output
Optical digital output ..................................Optical digital jack
Coaxial digital output ...............................................RCA jack
Other terminals
Control in/out ...........................................................RCA jack
RS232C ................................................................................1
Accessories
Remote control .....................................................................1
AAA/AR03 dry cell batteries .................................................2
Audio/Video cable (yellow/red/white) ....................................1
System control cable ............................................................1
Power cable ..........................................................................1
User Guide (this manual)
