Marantz DV7600 - Page 41

54
QT01 : SiI9190 (HDMI )
SiI 9190 Features
PanelLink Cinema
TM
Transmitter
Industry-Standard
Compliance
• HDMI 1.0
• DVI 1.0
• EIA/CEA-861B
• HDCP 1.1
Digital Video Input
• Integrated PanelLink
®
core sup-
ports all DTV resolutions
(480i/576i/480p/576p/720p/1080i)
• Flexible video interface supports
DVD and HD MPEG decoders
- 12/24-bit RGB 4:4:4
- 12/24-bit YCbCr 4:4:4
- 16/20/24-bit YCbCr 4:2:2
- 8/10/12-bit YCbCr 4:2:2
(ITU.601 and 656)
• Integrated YCbCr-to-RGB color
space conversion
• 4:2:2 to 4:4:4 up-converter
• Programmable Data Enable (DE)
generator
Digital Audio Input
• Industry-standard S/PDIF input
• Supports IEC60958 2-channel PCM
(48kHz)
• Capable of carrying IEC61937
compressed audio (Dolby Digital,
DTS, etc.)
Power Management
• 3.3V core provides low-power
operation
• Flexible power-down modes
• Standby mode consumes less than
10mW
Content Protection
• Integrated High-bandwidth Digital
Content Protection (HDCP) cipher
engine
• Pre-programmed HDCP keys
- Simplify manufacturing process
- Most secure solution available
- Lower system, manufacturing costs
• Encrypts both video and audio
System Operation
• Register-programmable via slave I
2
C
interface
• Flexible interrupt registers with
interrupt pin
• Monitor detection supported through
hot plug and receiver detection

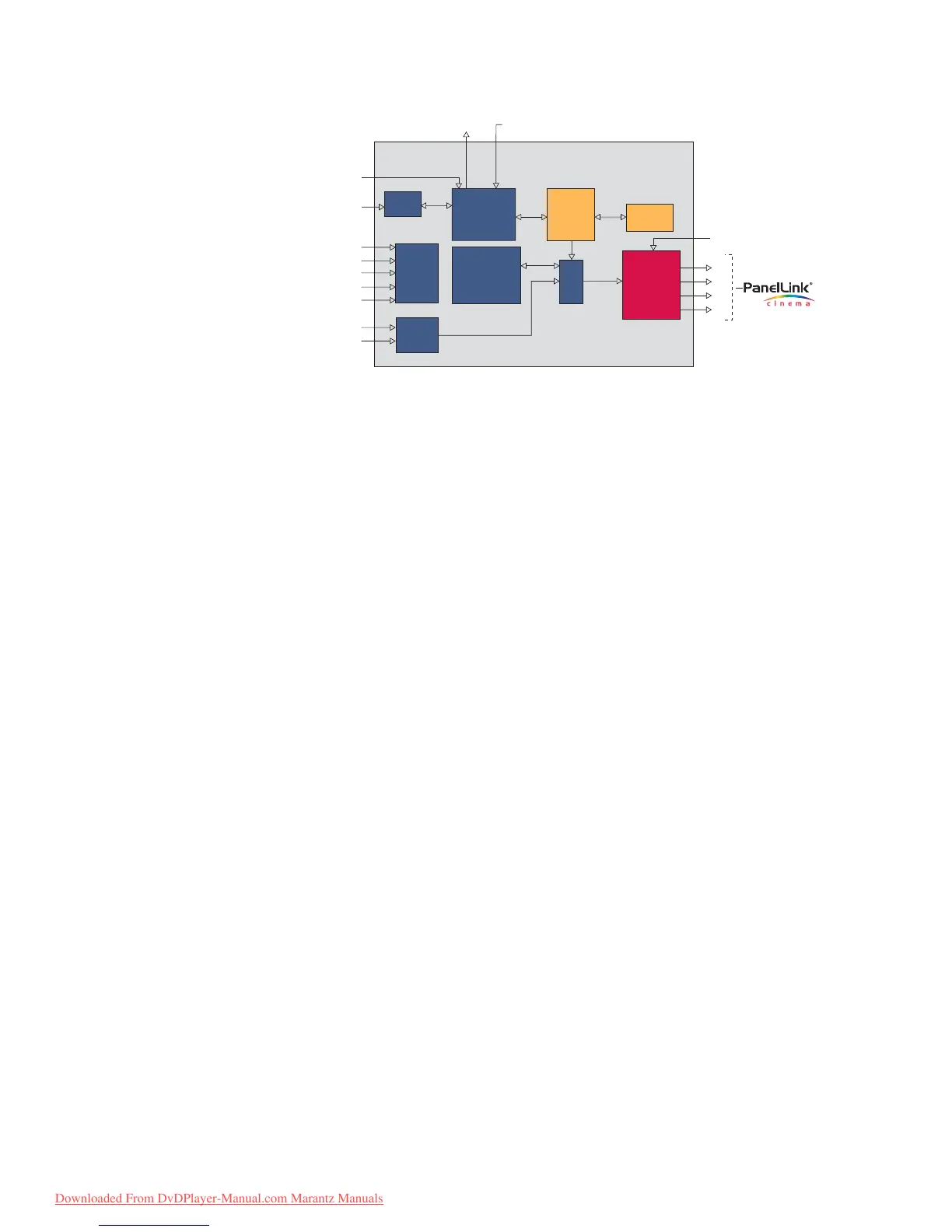

Reset
I
2
C
VSYNC
HSYNC
IDCK
DE
D[23-0]
INT
HPD
I
2
C
Registers
and
Configuration
Logic
E
2
PROM
HDCP Keys
Audio
Capture
YCbCr-to-RGB
Color Space
Converter/
4:2:2 to 4:4:4
Converter
Si I 9190
Video
Data
Capture
Logic/DE
Generator
EXT_SWING
Tx0
Tx1
Tx2
TxC
PanelLink
Transmitter
S/PDIF
MCLK
HDCP
Cipher
XOR
Mask
Silicon Image’s
SiI 9190 Starter Kit
(CP9000HDMI)
Contents include:
Hardware
• HDMI Mother Board
• SiI 9190 Transmitter Daughter Board
• SiI 9993 Receiver Daughter Board
• HDMI to HDMI cable
Software
• DemoCP Transmitter Software Tool
• HDMIGear Receiver Software Tool
Documentation
• User’s Guide
• Data Sheets
• Application Notes
