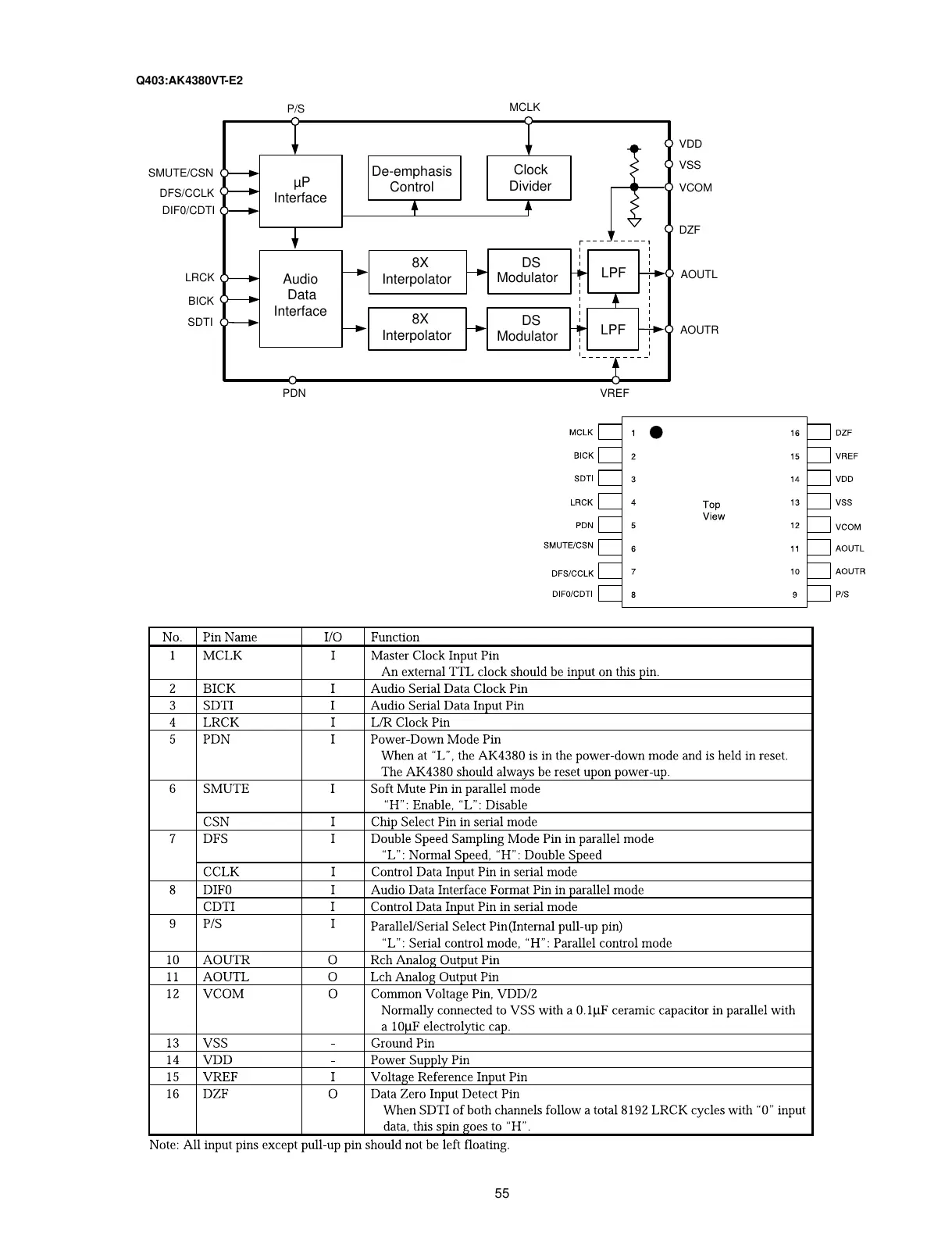

55
Q403:AK4380VT-E2
LRCK
BICK
SDTI
Audio
Data
Interface
MCLK
PDN
DS
Modulator
AOUTL
8X
Interpolator
LPF
AOUTR
LPF
VDD
VSS
VCOM
De-emphasis
Control
P/S
VREF
µP
Interface
Clock
Divider
SMUTE/CSN
DFS/CCLK
DIF0/CDTI
DZF
DS
Modulator
8X
Interpolator
