6

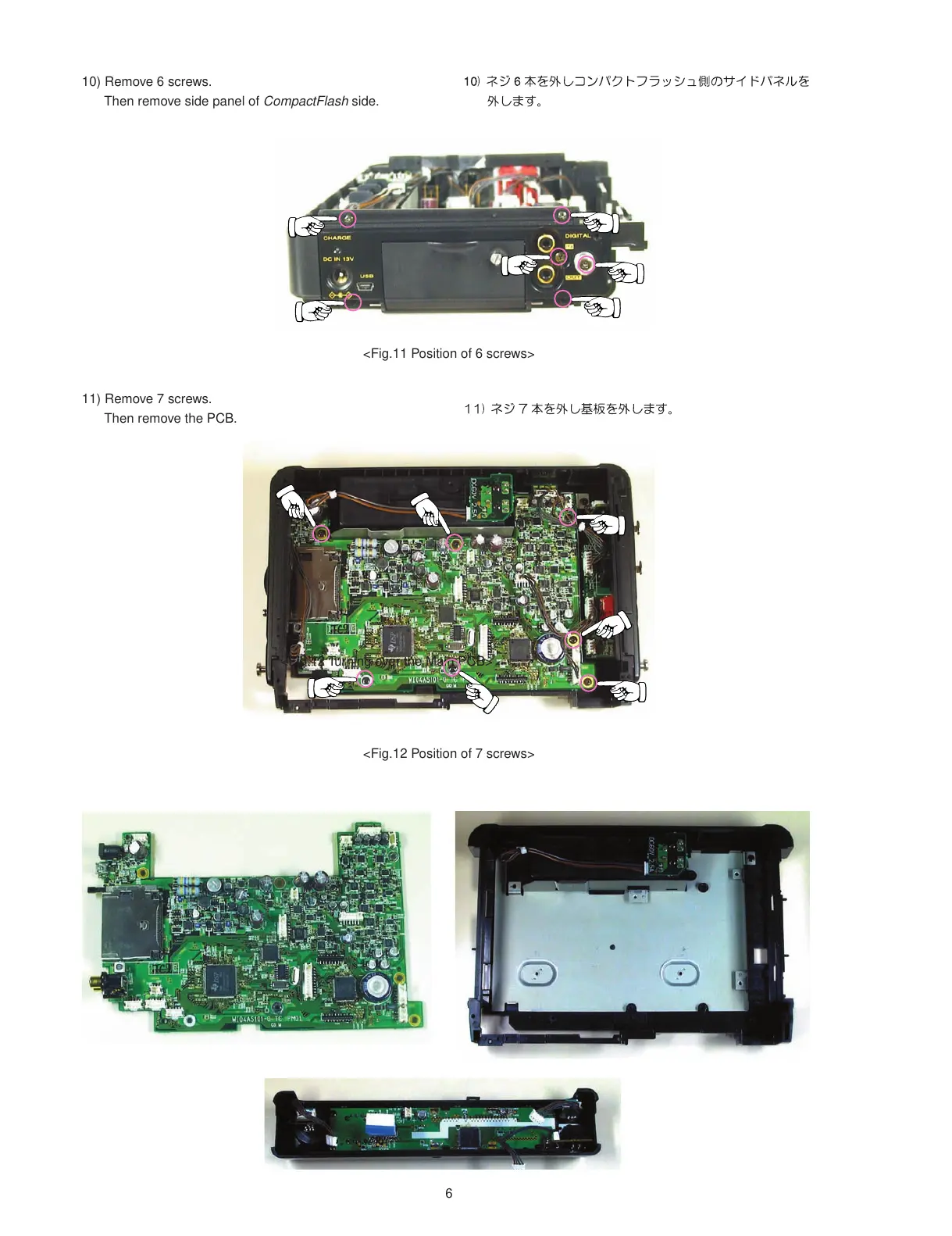

10) Remove 6 screws.
Then remove side panel of CompactFlash side.
11) Remove 7 screws.
Then remove the PCB.
<Fig.12 Turning over the Main PCB>
<Fig.11 Position of 6 screws>
<Fig.12 Position of 7 screws>
