Marantz SA8001 Service Manual

1-1
UPDATE DISC
Update of the CPU (IC731) ....................................................................... 90M-SA7001DVR

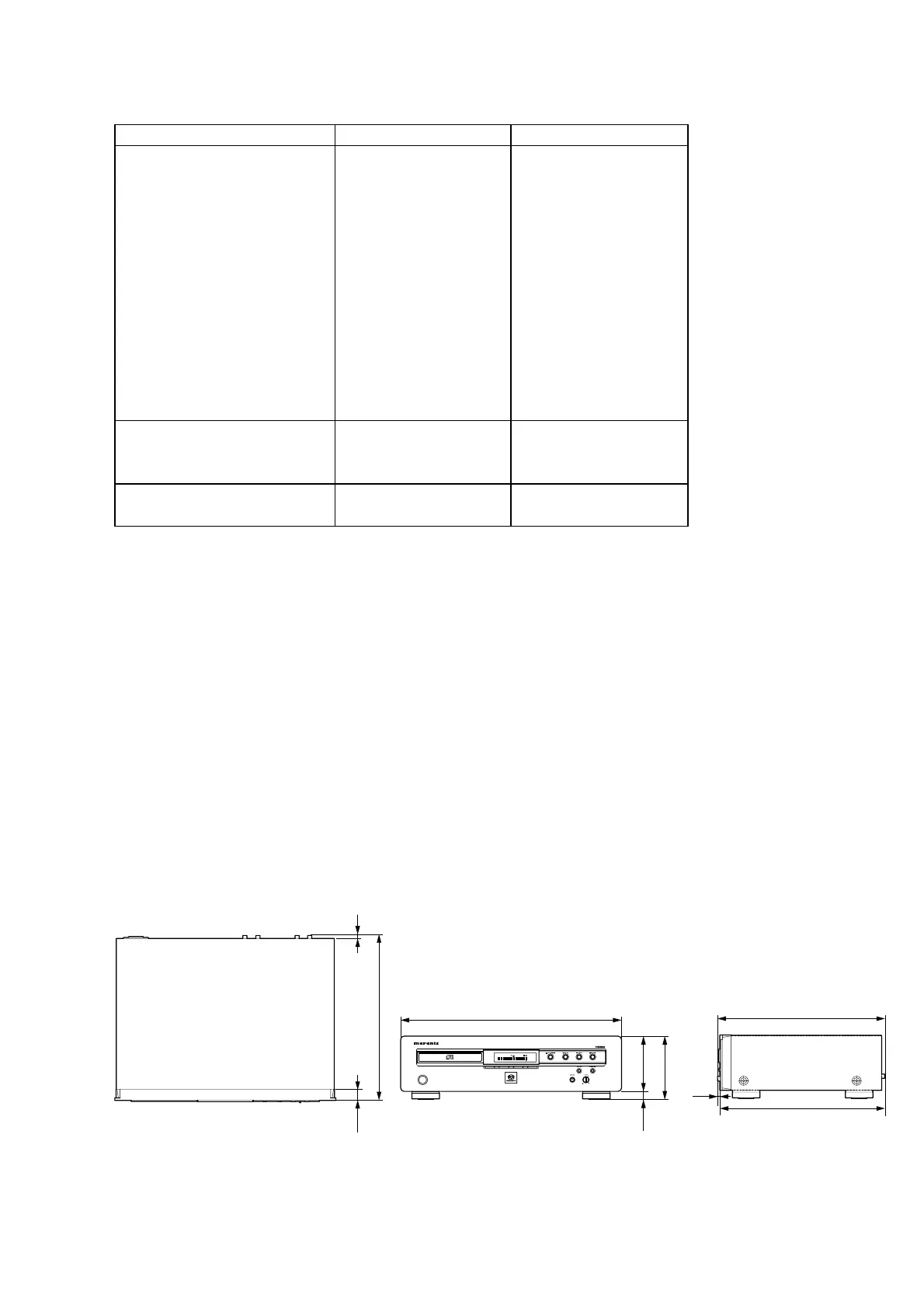

1. TECHNICAL SPECIFICATIONS AND UPDATE DISC
POWER ON/OFF
POWER ON/OFF
15/16 (22.5)
13 3/16 (334.5)
7/16 (12)
PROG ALL TOTAL SING
AMS
REMAIN SACD
RNDM TRK A – B
1
1 TEXT 2 34 5 6 7 8 9 10 11 12 1314 15 16 17 18 19 20 STEREO
POWER ON/OFF
POWER ON/OFF
SUPER AUDIO CD PLAYER SA8001
PROG ALL TOTAL SING
AMS
REMAIN SACD
RNDM TRK A – B
1
1 TEXT 2 34 5 6 7 8 9 10 11 12 1314 15 16 17 18 19 20 STEREO
POWER ON/OFF
POWER ON/OFF
DISPLAY OFF TEXT TIME SOUND MODE
4 5/16 (110.0)
3/4 (18.0)
5 1/16 (128.0)
17 5/16 (440)
Super Audio CD CD
Audio Characteristics
Analog output
Channels 2channels 2channels
Frequency range 2Hz — 100kHz 2Hz — 20kHz
Frequency characteristics 2Hz — 50kHz (-3dB) 2Hz — 20kHz
Dynamic range 112dB 100dB
THD (1kHz) 0.0010% 0.0020%
Wow & Flutter Precision of quartz Precision of quartz
Output level 2.3V RMS stereo 2.3V RMS stereo
Digital output
Output level (Cinch JACK) — 0.5Vp-p (75Ω)
Output level (Optical) — -19dBm
Headphone output level 0.5W / 32Ω (max, Vol.) 0.5W / 32Ω (max, Vol.)
Optical Readout System
Laser AlGaAs AlGaAs
Wave length 650nm 780nm
Signal format 1-bit DSD 16-bit linear PCM
Sampling frequency 2.8224MHz 44.1kHz
Power Supply
Input Voltage, Frequency [/F] .................................................................... AC 100V 50/60Hz
[/K] .................................................................... AC 220V 50/60Hz
[/U] ......................................................................... AC 120V 60Hz
Power Consumption ....................................................................................................... 19W
Cabinet, etc.
Dimensions ........................................................................................... 440 × 128 × 339mm
Net weight .....................................................................................................................8.0kg
Operating temperatures .................................................................................. +5°C ~ +35°C
Operating humidity .............................................................................5 ~ 90% (without dew)
Accessories
• Remote control unit (RC8001SA) ......................................................................................1
• AAA (R03) Batteries ..........................................................................................................2
• AC Power cord ...................................................................................................................1
• Audio cable ...............................................................................................................1 pairs
• Remote connection Cable ................................................................................................1
• User’s Guide ......................................................................................................................1
Dimensions
POWER ON/OFF
POWER ON/OFF
13 5/16 (339)
3/16
(4.5)
13 3/16 (334.5)
Unit : inch (mm)

Marantz SA8001 Specifications

General

Brand	Marantz
Model	SA8001
Category	CD Player
Language	English
