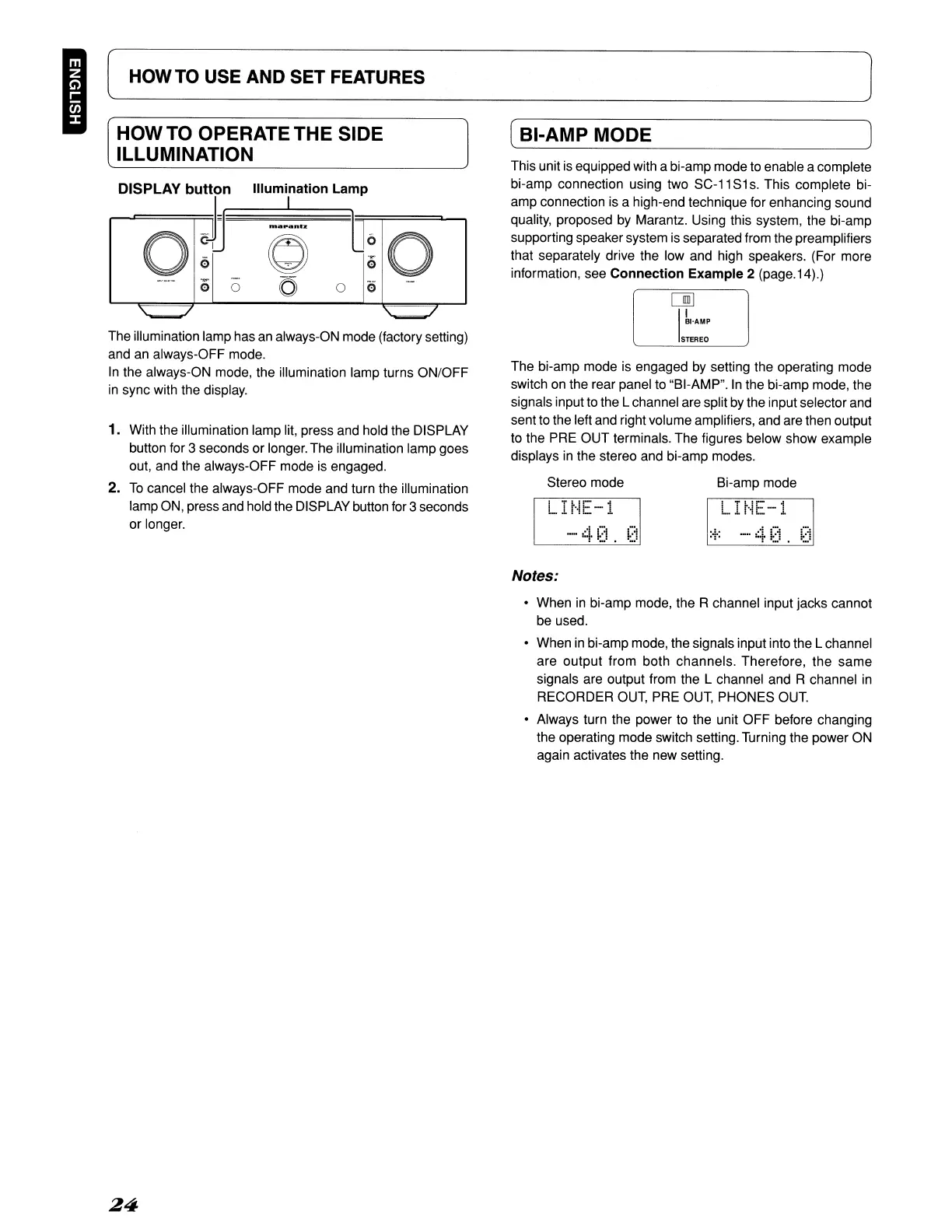

Page #30 background image
The illumination lamp has
an
always-ON mode (factory setting)
and
an
always-OFF mode.
In
the always-ON mode, the illumination lamp turns ON/OFF
in
sync with the display.
Bi-amp mode
L
H~E-l
:+:
,-,,40.0
--4[1.0
Stereo mode
L
H~E-1
The bi-amp mode
is
engaged by setting the operating mode
switch on the rear panel to "BI-AMP".ln the bi-amp mode, the
signals input to the L channel are split
by
the input selector and
sent to the left and right volume amplifiers, and are then output
to the PRE OUT terminals. The figures below show example
displays
in
the stereo and bi-amp modes.
This unit
is
equipped with a bi-amp mode to enable a complete
bi-amp connection using two SC-11 S1
s.
This complete bi-
amp connection is a high-end technique for enhancing sound
quality, proposed
by
Marantz. Using this system, the bi-amp
supporting speaker system
is
separated from the preamplifiers
that separately drive the low and high speakers. (For more
information, see
Connection
Example
2 (page.14).)
C@]
I
~I-AMP
STEREO
]
('-B_I-_AM_P_M_O_DE
J
Illumination
Lamp
I
DISPLAY
bUJ"
o:~
lnapanlZ
°:0
CO
--
e
-
0)
e
--
0 0
~
~
1.
With the illumination lamp lit, press and hold the DISPLAY
button for 3 seconds or longer. The illumination lamp goes
out, and the always-OFF mode
is
engaged.
2.
To
cancel the always-OFF mode and turn the illumination
lamp ON, press and hold the DISPLAY button for 3 seconds
or longer.
I
[HOW TO USE
AND
SET
FEATURES
HOW TO OPERATE THE SIDE
ILLUMINATION
Notes:
o When
in
bi-amp mode, the R channel input jacks cannot
be used.
o When
in
bi-amp mode, the signals input into the L channel
are output from both channels. Therefore, the same
signals are output from the L channel and R channel
in
RECORDER OUT, PRE OUT, PHONES
OUT
o Always turn the power to the unit OFF before changing
the operating mode switch setting. Turning the power ON
again activates the new setting.
