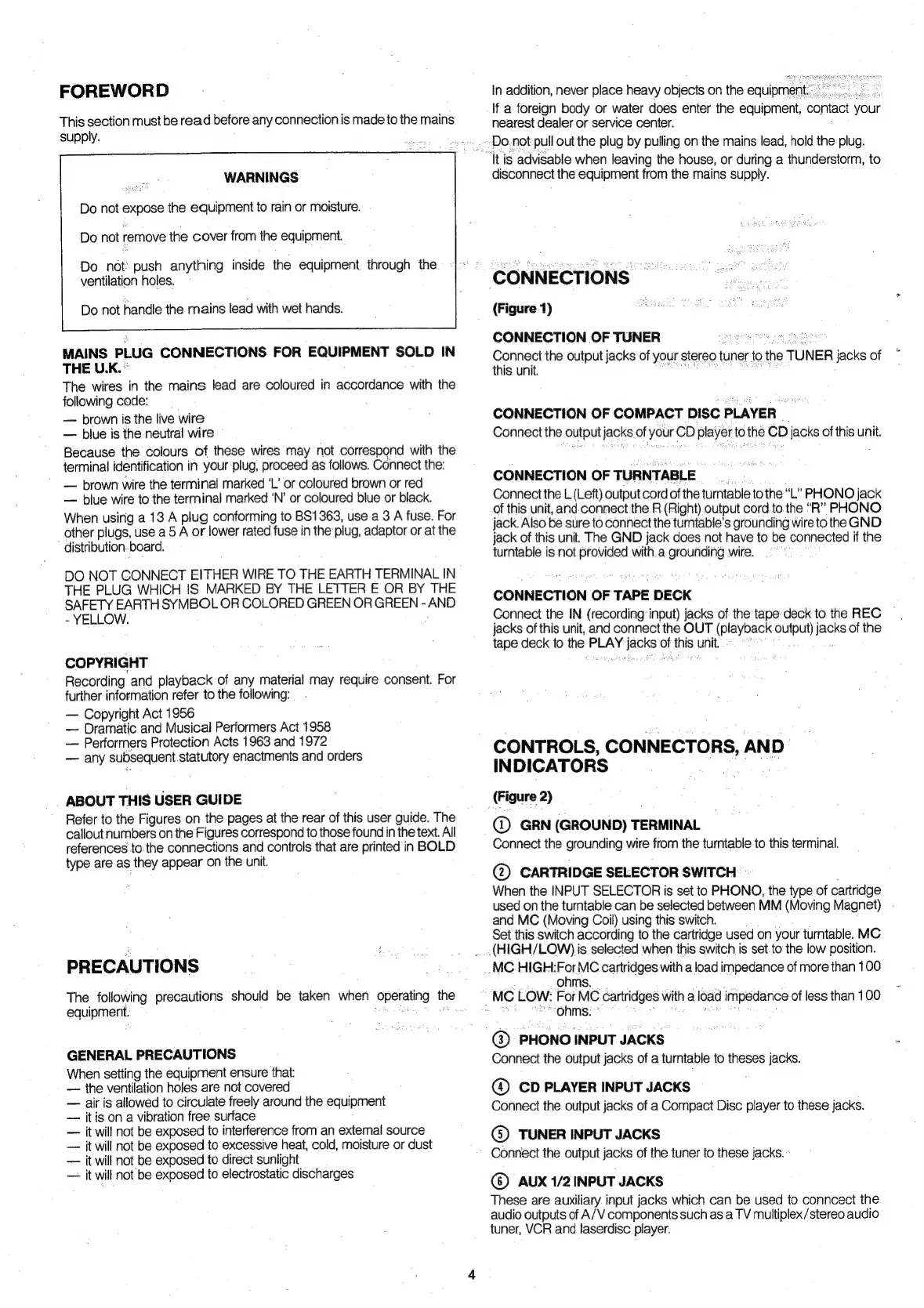

FOREWORD
This
section
must
be
read
before
any
connection
is
made
to
the
mains
supply.
WARNINGS
Do
not
expose
the
equipment
to
rain
or
moisture.
Do
not
remove
the
cover
from
the
equipment.
Do
not’
push
anything
inside
the
equipment.
through
the
ventilation
holes.
Do
not
handle
the
mains
lead
with
wet
hands.
MAINS
PLUG
CONNECTIONS
FOR
EQUIPMENT
SOLD
IN
THE
U.K.~
The
wires
in
the
mains
lead
are
coloured
in
accordance
with
the
following
code:
—
brown
is
the
live
wire
—
blue
is
the
neutral
wire
Because
the
colours
of
these
wires
may
not
correspond
with
the
terminal
identification
in
your
plug,
proceed
as
follows.
Connect
the:
—
brown
wire
the
terminal
marked
‘L’
or
coloured
brown
or
red
—
blue
wire
to
the
terminal
marked
‘N’
or
coloured
blue
or
black.
When
using
a
13
A
plug
conforming
to
BS1363,
use
a
3
A
fuse.
For
other
plugs,
use
a
5
A
or
lower
rated
fuse
in
the
plug,
adaptor
or
at
the
’
distribution.board.
DO
NOT
CONNECT
EITHER
WIRE
TO
THE
EARTH
TERMINAL
IN
THE
PLUG
WHICH
IS
MARKED
BY
THE
LETTER
E
OR
BY
THE
SAFETY
EARTH
SYMBOL
OR
COLORED
GREEN
OR
GREEN
-
AND
-
YELLOW.
COPYRIGHT
Recording
and
playback
of
any
material
may
require
consent.
For
further
information
refer
to
the
following:
—
Copyright
Act
1956
—
Dramatic
and
Musical
Performers
Act
1958
—
Performers
Protection
Acts
1963
and
1972
—
any
subsequent
statutory
enactments
and
orders
ABOUT
THIS
USER
GUIDE
Refer
to
the
Figures
on
the
pages
at
the
rear
of
this
user
guide.
The
callout
numbers
on the
Figures
correspond
to
those
found
in
the
text.
Alll
references
to.the
connections
and
controls
that
are
printed
in
BOLD
type
are
as
they
appear
on
the
unit.
PRECAUTIONS
The
following
precautions
should
be
taken
when
“Operaling
he
Seen
GENERAL
PRECAUTIONS
When
setting
the
equiprnent
ensure
that:
—
the
ventilation
holes
are
not
covered
—
air is
allowed
to
circulate
freely
around
the
equipment
—
itis
on
a
vibration
free
surface
—
it
will
not
be
exposed
to
interference
from
an
external
source
—
it
will
not
be
exposed
to
excessive
heat, cold,
moisture
or
dust
—
it
will
not
be
exposed
to
direct
sunlight
—
it
will
not
be
exposed
to
electrostatic
discharges
In
addition,
never
place
heavy
objects
on
the
equipment.
2
If
a
foreign
body
or
water
does
enter
the
equipmeni,
contact
your
nearest
dealer
or
service
center.
a
Do-not
pull
out
the
plug
by
pulling
on
the
mains
lead,
hold
the
plug.
It
is
advisable
when
leaving
the
house,
or
during
a
thunderstorm,
to
disconnect
the
equipment
from
the
mains
supply.
~
CONNECTIONS
_
(Figure
1)
CONNECTION
OF
TUNER
Connect
the
output
jacks
of
your
stereo
tuner
to
the
TUNER
jacks
of
this
unit.
CONNECTION
OF
COMPACT
DISC
PLAYER
|
Connect
the
output
jacks
of
your
CD
player
to
the
CD
jacks
of
this
unit.
CONNECTION
OF
TURNTABLE
Connect
the
L
(Left)
output
cord
of
the
turntable
to
the
“L”
PHONO
jack
of
this
unit,
and.connect
the
R
(Right)
output
cord.to
the
“R”
PHONO
jack.
Also
be
sure
to
connect
the
turntable’s
grounding
wire
to
the
GND
jack
of
this
unit.
The
GND
jack
does
not
have
to
be
connected
if
the
turntable
is
not
provided
with
a
grounding
wire.
CONNECTION
OF
TAPE
DECK
Connect
the
IN
(recording
input)
jacks
of
the
tape
deck
to
the
REC
|
jacks
of
this
unit,
and
connect
the
OUT
(playback
ae
Ee
of
the
tape
deck
to
the
PLAY
ieee
se
this
unit
CONTROLS,
CONNECTORS,
AND
INDICATORS
(Figure
2)
@
GRN
(GROUND)
TERMINAL
Connect
the
grounding
wire
from
the
turntable
to
this
terminal.
®
CARTRIDGE
SELECTOR
SWITCH
When
the
INPUT
SELECTOR
is
set
to
PHONO,
the
type
of
cartridge
used
on
the
turntable
can
be
selected
between
MM
(Moving
Magnet)
-
and
MC
(Moving
Coil)
using
this
switch.
Set
this
switch
according
to
the
cartridge
used
on
your
turntable.
MC
(HIGH/LOW)
is
selected
when
this
switch
is
set
to
the
low
position.
_MC.HIGH:For
MC
cartridges
with
a
load
impedance
of
more
than
100
ohms.
;
MC
LOW:
For
MC
Cartridges
with
a
load
impedance
of
less
than
100
“ohms:
*
'@
PHONO
INPUT
JACKS
Connect
the
output
jacks
of
a
turntable
to
theses
jacks.
@®
CD
PLAYER
INPUT
JACKS
Connect
the
output
jacks
of
a
Compact
Disc
player
to
these
jacks.
©
TUNER
INPUT
JACKS
Connect
the
output
jacks
of
the
tuner
to
these
jacks.
@)
AUX
1/2
INPUT
JACKS
These
are
auxiliary
input
jacks
which
can
be
used
to
conncect
the
audio
outputs
of
A/V
components
such
as
a
TV
multiplex/stereo
audio
tuner,
VCR
and
laserdisc
player.
