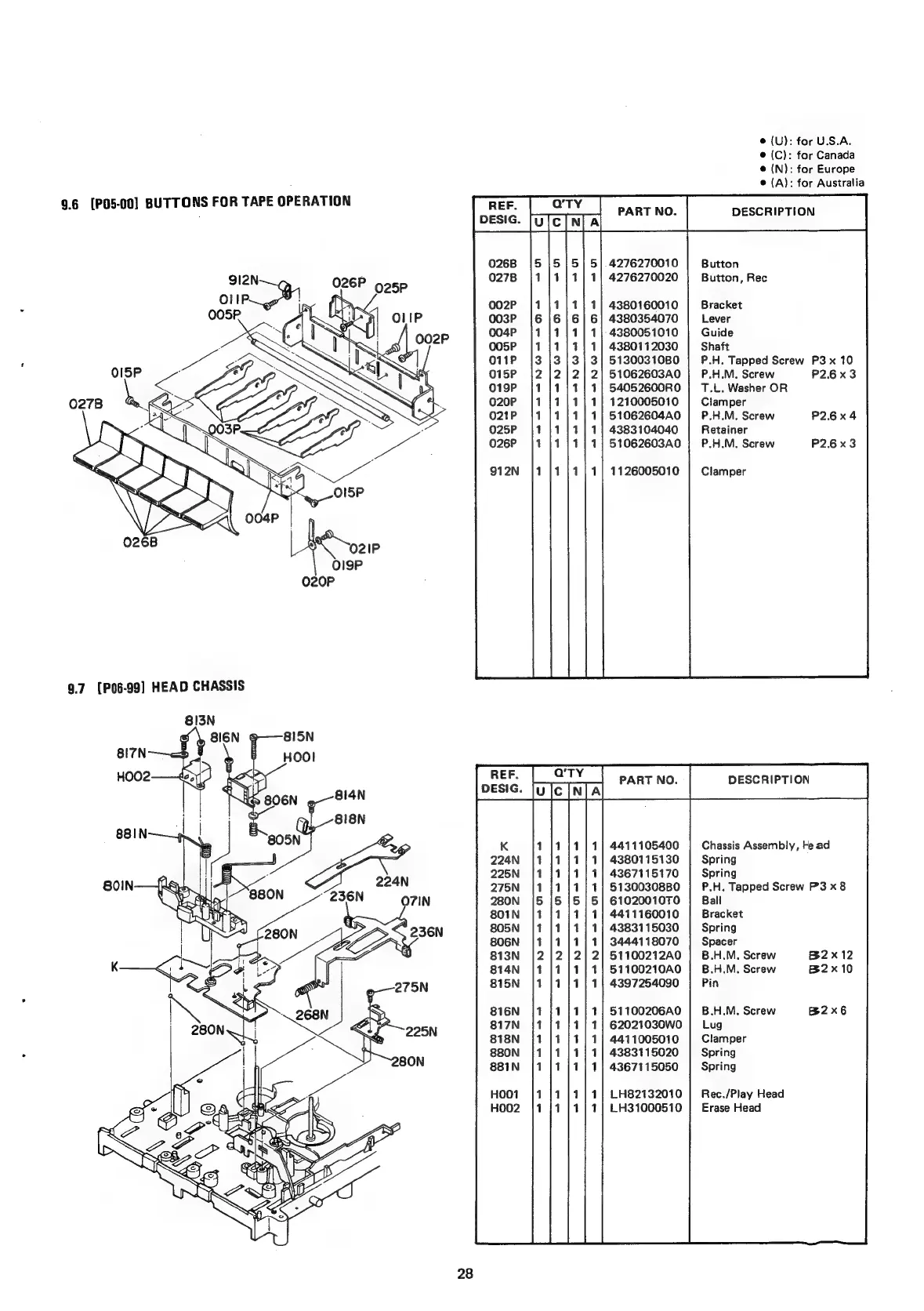

9.6 [P05-00] BUTTONS FOR TAPE OPERATION
[U[c|N] Al
4276270010 Button
4276270020 Button, Rec
— Ol
4380160010 Bracket
4380354070 Lever
4380051010 Guide
4380112030 Shaft
51300310B0 | P.H. Tapped Screw P3 x 10
51062603A0 | P.H.M. Screw P2.6 x 3
54052600RO | T.L. Washer OR
1210005010 Clamper
51062604A0 | P.H.M. Screw P2.6x4
4383104040 Retainer
51062603A0 ; P.H.M. Screw P2.6x3
aw BeBe WI@ oD So eee NWe Ye Da aera ABN Wwe ama
ee ee ee ee Oe eo ey
_ _ — =
1126005010 Clamper
9.7
(P06-99]
HEAD
CHASSIS
8I3N
SIGN apes
SI7N HOO!
u |c [N| al
4411105400 Chassis Assembly, He ad
4380115130 Spring
4367115170 Spring
51300308B0
P.H. Tapped Screw P3 x 8
61020010TO | Ball
4411160010 Bracket
4383115030 Spring
3444118070 Spacer
51100212A0
51100210A0
4397254090
B.H.M. Screw B2x 12
B.H.M. Screw B2x 10
Pin
51100206A0 | B.H.M. Screw
62021030W0 | Lug
4411005010 Clamper
4383115020 Spring
4367115050 Spring
LH82132010
LH31000510
Rec./Play Head
Erase Head
