DIRECT INPUT CONNECTION
When you desire to have high quality sound reproduction,
connect the input signal to DIRECT INPUT jacks and switch
the INPUT MODE switch to DIRECT INPUT position.
The LEVEL controls on the rear panel cannot be used in
this mode (Fixed input level).
SERIAL NO.SERIAL NO.
AC INAC IN
OUTOUT
ININ
MODEL NO.
SM6100
/
U1B
MADE IN JAPAN
RR LL
120V AC 60H
Z
1.8A
WARNING : SHOCK HAZARD - DO NOT OPEN AVIS : RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR.
SPEAKERSPEAKER SYSTEMSSYSTEMS
AA AA
BB BB
SPEAKERS IMPEDANCESPEAKERS IMPEDANCE
SYSTEMSYSTEM
AA ANDAND B : MINIMUM 8B : MINIMUM 8
OHMSOHMS
((
BIBI
--
WIREWIRE
))
SYSTEMSYSTEM
A A OROR B B : MINIMUM 4 : MINIMUM 4
OHMSOHMS
LL
MAXMAXMINMINMAXMAXMINMIN
RR
RR
LL
DIRECTDIRECT
INPUTINPUT
LEVELLEVEL
VARIABLEVARIABLE
INPUTINPUT
THRUTHRU
OUTPUTOUTPUT
RR
LL
UNSWITCHEDUNSWITCHED
120V 60H120V 60H
ZZ
100W 0.8A MAX100W 0.8A MAX
AC OUTLETAC OUTLET
REMOTEREMOTE
CONTROLCONTROL
LR
OFF
ON
OFF
ON
OFF
ON
AUX/DVD
CD
REC SELECTOR
OFF
COPY
LOUDNESS
SOURCE DIRECT
SPEAKER
MIN
MAX
PHONO
TUNER
CD-R
MD/TAPE
CD-R
-
+
-
+
VOLUME
L
R
PHONO
CD
TUNER
AUX/DVD
CD-R
MUTE
INPUT SELECTOR
MD/TAPE
MD/TAPE
BASS
PHONES
POWER ON/OFF
BALANCE
TREBLE
Preamplifier
Speaker systems

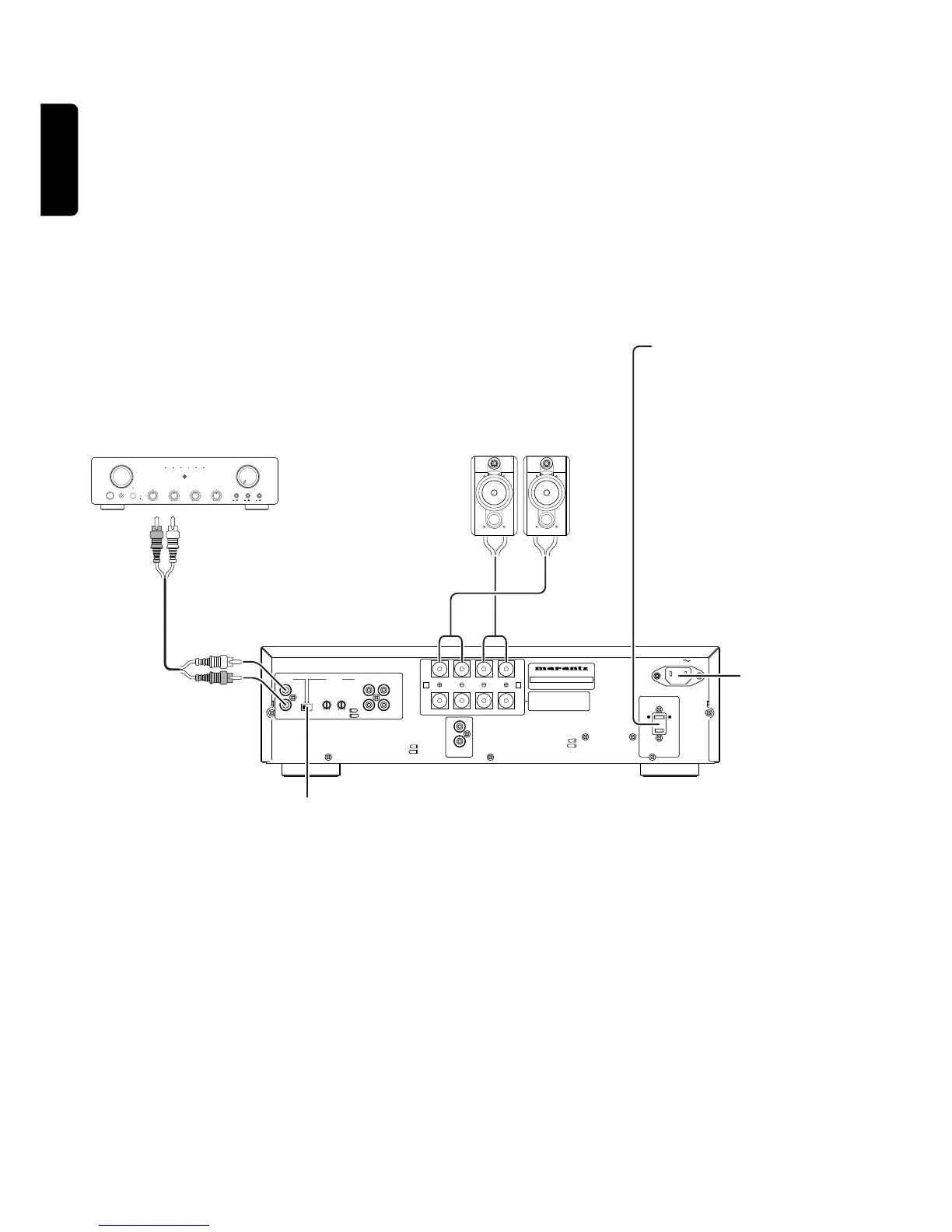

Connect the right channel
speaker system to the “R”
output jacks, and the left
channel speaker system to
the “L” output jacks.
To output jacks
(PRE OUTPUT)
Set to DIRECT INPUT.
For the best sound quality, we recommend that the LEVEL controls
be set to the MIN position at the DIRECT INPUT connection.
UNSWITCHED AC OUTLET
Use this outlet as the power supply
for a component that does not
need to be turned on and off by the
main power switch. The maximum
power capacity of this outlet is
100W. Do not connect a device
that consumes a great deal of
power into this outlet.
To AC power outlet
(120V AC only)
