Marantz SR1010 User Manual

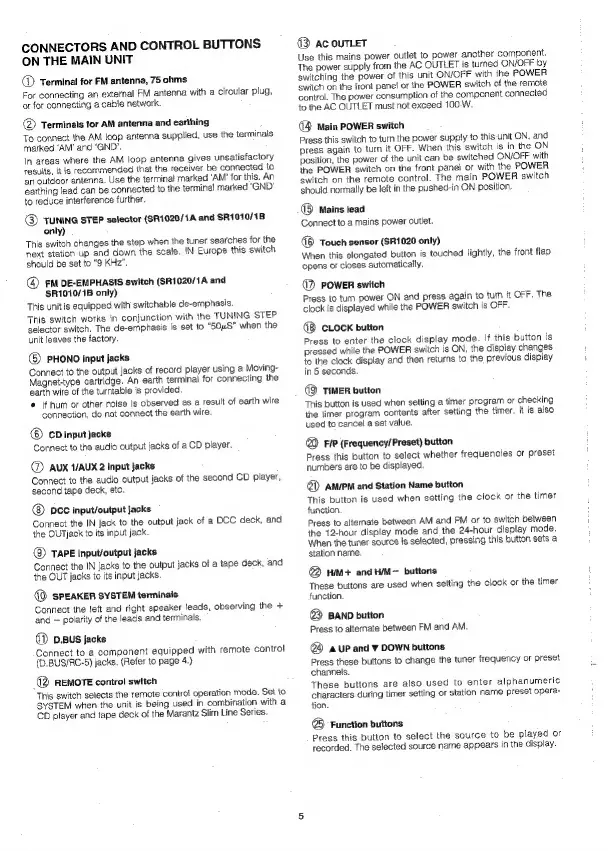

CONNECTORS
AND
CONTROL
BUTTONS
ON
THE
MAIN
UNIT
iO) Terminal for FM antenna, 75 ohms
For
connecting
an
external
FM
antenna
with
a
circular
plug,
or
for
connecting
a
cable
network.
@
Terminals
for
AM
antenna
and
earthing
To
connect
the
AM
loop
antenna
supplied,
use
the
terminais
marked
‘AM’
and
‘GND’.
In
areas
where
the
AM
loop
antenna
gives
unsatisfactory
results,
it
is
recommended
that
the
receiver
be
connected
to
an
outdoor
antenna.
Use
the
terminal
marked
‘AM’
for
this.
An
earthing
lead
can
be
connected
to
the
terminal
marked
"GND"
to
reduce
interference
further.
®
TUNING
STEP
selector
(SR1020/1A
and
$R1010/1B
only)
This
switch
changes
the
step
when
the
tuner
searches
for
the
next
station
up
and
down
the
scale.
IN
Europe
this
switch
should be set to “8 KHz”.
@)
FM
DE-EMPHASIS
switch
(SR1020/1A
and
$R1010/1B
only)
This
unit
is
equipped
with
switchable
de-emphasis.
This
switch
works
in
conjunction
with
the
TUNING
STEP
selector
switch.
The
de-emphasis
is
set
to
“50uS”
when
the
unit
leaves
the
factory.
©) PHONO input jacks
Connect
to
the
output
jacks
of
record
player
using
a
Moving-
Magnet-type
cartridge.
An
earth
terminal
for
connecting
the
earth
wire
of
the
turntable
is
provided,
|f
hum
or
other
noise
is
observed
as
a
result
of
earth
wire
connection,
do
not
connect
the
earth
wire.
® CD input jacks
Connect
to
the
audio
output
jacks
of
a
CD
player.
@® AVX 1/AUX 2 input jacks
Connect
to
the
audio
output
jacks
of
the
second
CD
player,
second
tape
deck,
etc.
DCC input/output jacks
Connect
the
IN
jack
to
the
output
jack
of
a
DCC
deck,
and
the
OUTjack
to
its
input
jack.
@® TAPE input/output jacks
Connect
the
IN
jacks
to
the
output
jacks
of
a
tape
deck,
and
the
OUT
jacks
to
its
input
jacks.
(Q SPEAKER SYSTEM terminais
Connect
the
left
and
right
speaker
feads,
observing
the
+
and
—
polarity
of
the
leads
and
terminals.
@ D.BUs jacks
Connect
to
a
component
equipped
with
remote
control
(D.BUS/RC-5)
jacks.
(Refer
to
page
4)
ie) REMOTE control switch
This
switch
selects
the
remote
control
operation
mode.
Set
to
SYSTEM
when
the
unit
is
being
used
in
combination
with
a
CD
player
and
tape
deck
of
the
Marantz
Slim
Line
Series.
® ac ourTLeT
Use
this
mains
power
outiet
to
power
another
component.
The
power
supply
from
the
AC
OUTLET
is
turned
ON/OFF
by
switching
the
power
of
this
unit
ON/OFF
with
the
POWER
‘switch
on
the
front
panel
or
the
POWER
switch
of
the
remote
control.
The
power
consumption
of
the
component
connected
to
the
AC
OUTLET
must
not
exceed
100.W.
(} Main POWER switch
Press
this
switch
to
turn
the
power
supply
to
this-unit
ON,
and
press
again
to
turn
it
OFF.
When
this
switch
is
in
the
ON
position,
the
power
of
the
unit
can
be
switched
ON/OFF
with
the
POWER
switch
on
the
front
panel
or
with
the
POWER
switch
on
the
remote
control.
The
main
POWER
switch
should
normally
be
eft
in
the
pushed-in
ON
position,
4 ® Mains lead
Connect to a mains power outlet.
4® Touch sensor (SR1020 only)
When
this
elongated
button
is
touched
lightly,
the
front
flap
opens
or
closes
automatically.
@® POWER switch
Press
to
turn
power
ON
and
press
again
to
tum
it
OFF.
The
clock
is
displayed
while
the
POWER
switch
is
OFF.
48 CLOCK button
Press
to
enter
the
clock
display
mode.
If
this
button
is
pressed
while
the
POWER
switch
is
ON,
the
display
changes
to
the
clock
display
and
then
returns
to
the
previous
display
in
5
seconds.
(9 TIMER button
This
button
is
used
when
setting
a
timer
program
or
checking
the
timer
program
contents
after
setting
the
timer.
It
is
also
used
to
cancel
a
set
value.
@ F/P (Frequency/Preset) button
Press
this
button
to
select
whether
frequencies
or
preset
numbers
are
to
be
displayed.
@ AM/PM and Station Name button
This
button
is
used
when
setting
the
clock
or
the
timer
function.
Press
to
alternate
between
AM
and
PM
or
to
switch
between
the
12-hour
display
mode
and
the
24-hour
display
mode.
When
the
tuner
source
is
selected,
pressing
this
button
sets
a
station
name.
@ wiM+ and H/M— buttons
These
buttons
are
used
when
setting
the
clock
or
the
timer
function.
@ BAND button
Press to alternate between FM and AM.
@ «up and ¥ DOWN buttons
Press
these
buttons
to
change
the
tuner
frequency
or
preset
channels.
These
buttons
are
also
used
to
enter
alphanumeric
characters
during
timer
setting
or
station
name
preset
opera-
tion.
® Function buttons
Press
this
button
to
select
the
source
to
be
played
or
recorded.
The
selected
source
name
appears
in
the
display.
