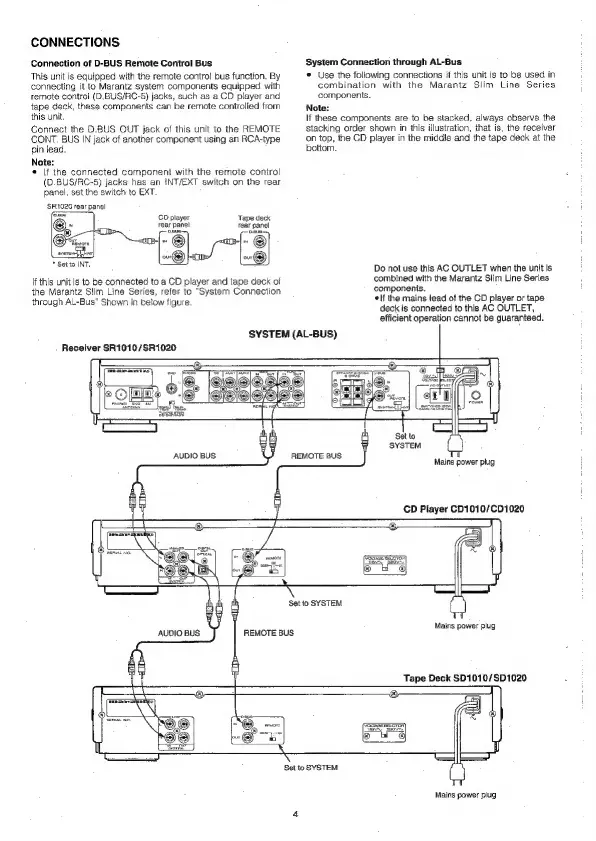

CONNECTIONS
Connection of D-BUS Remote Control Bus
This unit is equipped with the remote control bus function. By
connecting it to Marantz system components equipped with
remote control (D.BUS/RC-5) jacks, such as a CD player and
tape deck, these components can be remote controlied from
this unit.
Connect the D.BUS OUT jack of this unit to the REMOTE
CONT. BUS IN jack of another component using an RCA-type
pin lead.
Note:
© If the connected component with the remote control
(D.BUS/RC-5) jacks has an iNT/EXT switch on the rear
panel, set the switch to EXT.
SR1020 rear panel
CD player
rear panel
* Set to INT.
If this unit is to be connected to a CD player and tape deck of
the Marantz Slim Line Series, refer to “Systern Connection
through AL-Bus” Shown in below figure.
SYSTEM (AL-BUS)
Receiver SR1010/SR1020
AUDIO BUS
REMOTE BUS
System Connection through AL-Bus
* Use the following connections if this unit is to be used in
combination with the Marantz Slim Line Series
components.
Note:
If these components are to be stacked, always observe the
stacking order shown in this illustration, that is, the receiver
‘on top, the CD player in the middle and the tape deck at the
bottom.
Do not use this AC OUTLET when the unit is
combined with the Marantz Slim Line Series
components.
elf the mains lead of the CD player or tape
deck is connected to this AC OUTLET,
efficient operation cannot be guaranteed.
Mains power plug
CD Player CD1010/CD1020
AUDIO BUS
Set to SYSTEM
Mains power plug
Tape Deck SD1010/SD1020
Set to SYSTEM
Mains power plug
