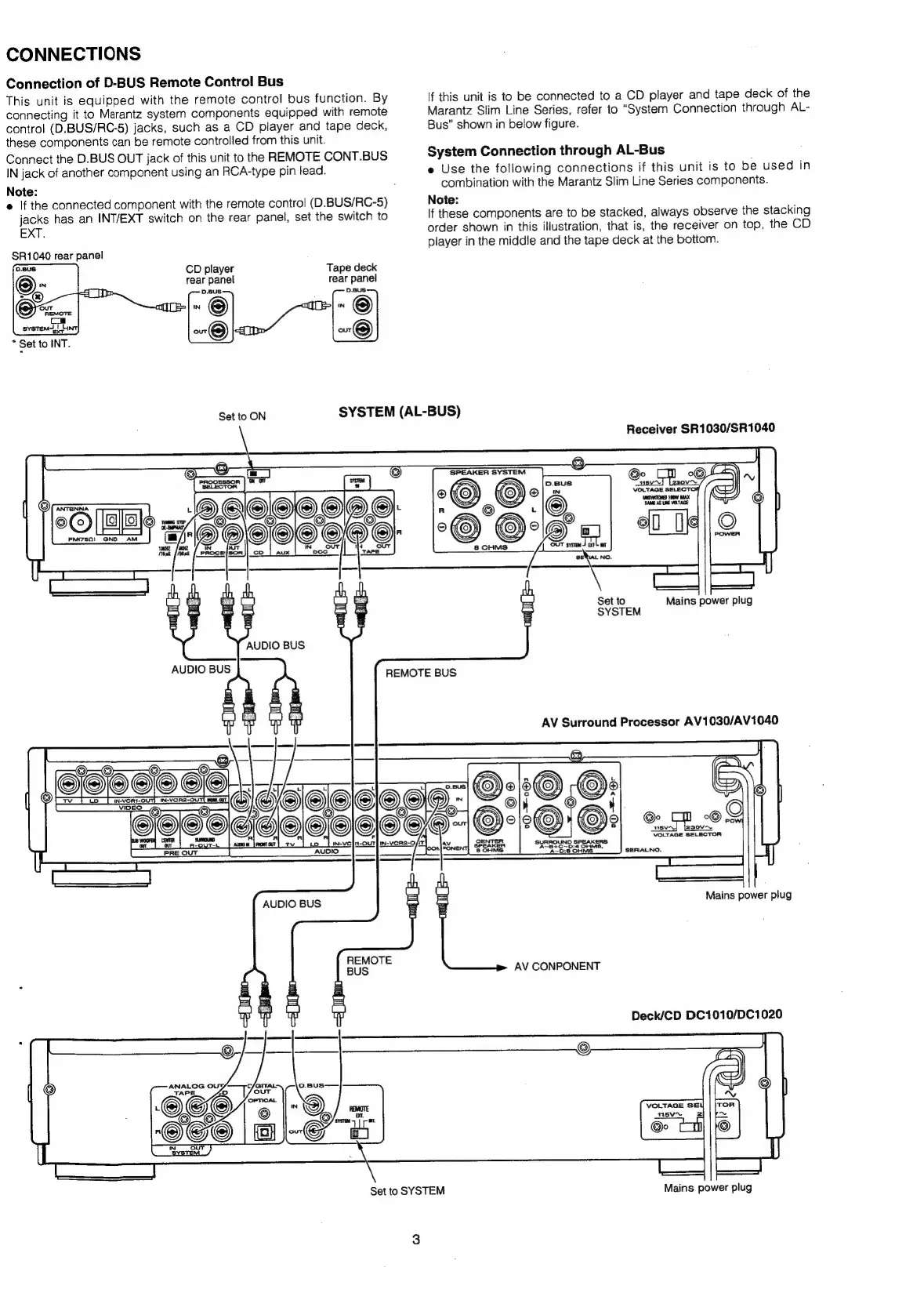

CONNECTIONS
Connection of D-BUS Remote Control Bus
This
unit
is
equipped
with
the
remote
control
bus
function.
By
connecting
it
to
Marantz
system
components
equipped
with
remote
control
(D.BUS/RC-5)
jacks,
such
as
a
CD
player
and
tape
deck,
these
components
can
be
remote
controlled
from
this
unit.
Connect
the
D.BUS
OUT
jack
of
this unit
to
the
REMOTE
CONT.BUS
IN
jack
of
another
component
using
an
RCA-type
pin
lead.
Note:
e
If
the
connected
component
with
the
remote
control
(D.BUS/RC-5)
jacks
has
an
INT/EXT
switch
on
the
rear
panel,
set
the
switch
to
EXT.
SR1040 rear panel
CD player Tape deck
rear pane! rear panel
D.BUSs. 0.BUS
és ‘
our) en ae BES)
Set to ON
AUDIO BUS
BUS
Set to SYSTEM
REMOTE BUS
REMOTE
If
this unit
is
to
be
connected
to
a
CD
player
and
tape
deck
of
the
Marantz
Slim
Line
Series,
refer
to
“System
Connection
through
AL-
Bus”
shown
in
below
figure.
System
Connection
through
AL-Bus
e
Use
the
following
connections
if
this
unit
is
to
be
used
in
combination
with
the
Marantz
Slim
Line
Series
components.
Note:
If
these
components
are
to
be
stacked,
always
observe
the
stacking
order
shown
in
this
illustration,
that
is,
the
receiver
on
top,
the
CD
player in the middle and the tape deck at the bottom.
SYSTEM (AL-BUS)
Receiver SR1030/SR1040
Set to Mains power plu
SYSTEM 2 sia
AV Surround Processor AV1030/AV1040
©. Tn ©
SVC) 230v~
VOLTAGE SELECTOR
Mains power plug
AV CONPONENT
Deck/CD DC1010/DC1020
VOLTAGE SEI
15SV~ 2
@°> Cw
Mains power plug
