Video conversion function

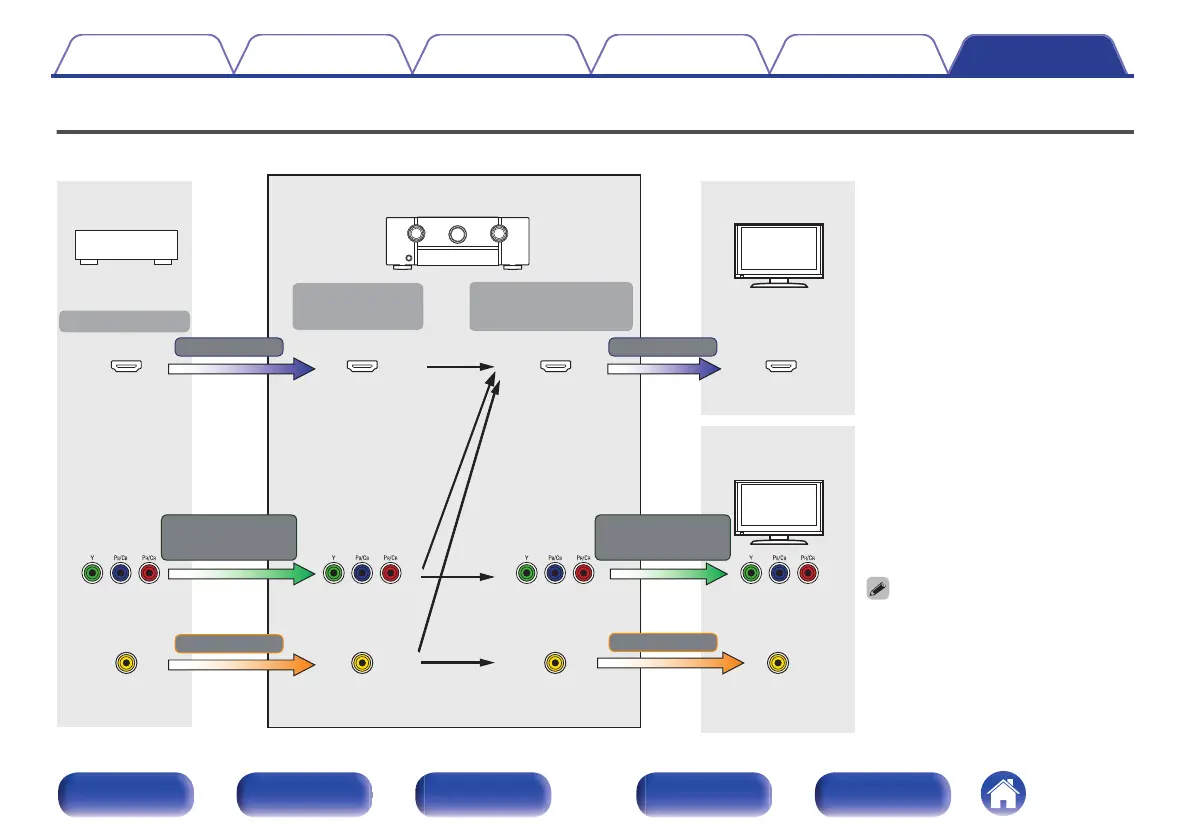

This unit automatically converts the input video signals as shown in the diagram before outputting them to the TV.
0
The MAIN ZONE Video Conversion
function is compatible with the following
formats: NTSC, PAL, SECAM,
NTSC4.43, PAL-N, PAL-M and PAL-60.
0
When component video signals are
used, only 480i and 576i signals are
converted to HDMI signals.
Video device
Output
This unit
Input (IN)
Output
(MONITOR OUT)
HDMI signal
HDMI signal
HDMI connector
HDMI connector HDMI connector HDMI connector
Component video
connectors
Component video
connectors
Component video
connectors
Component video
connectors
Component
video signal
Component
video signal
Video connector Video connector
Video signal
HDMI-compatible TV
HDMI-incompatible TV
Video connector Video connector
Video signal
