Connecting 9.1-channel speakers
This system, which is based on a 5.1-channel system, plays back up to 9.1-channels at the same time.
You can connect speakers for up to 11-channels for MAIN ZONE. When you connect speakers for 10 or more channels, the output speakers automatically
switch according to the input signal and sound mode.
o

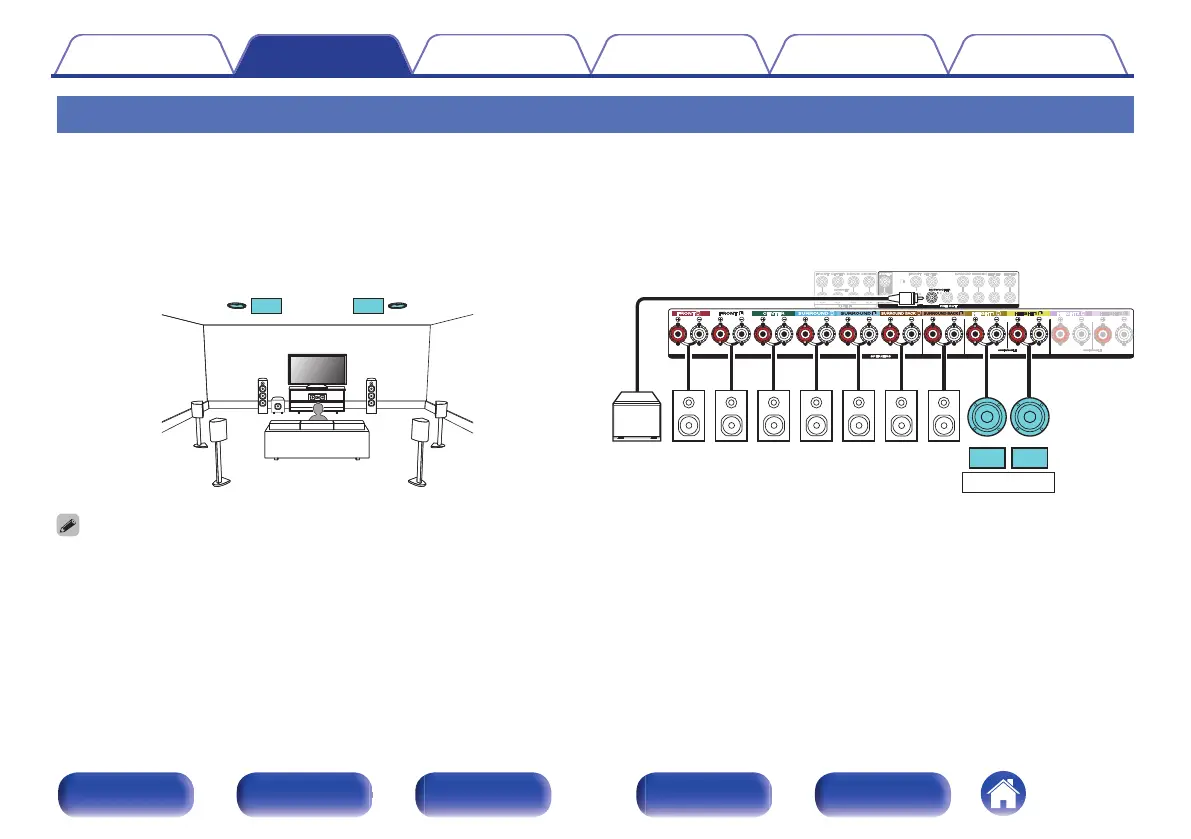

Example connection when using one set of ceiling speakers
.
C
FL FR
SBL
SBR
SW
SL SR
TML TMR
0
Set “Height” - “Height Sp” to “2ch” in the menu when connecting in this
configuration. (v p. 218)
.
TMR TML
HEIGHT 1
z
SBR SBL
FR FL C SR SL
SW
z
The top front or top rear speakers can be connected instead of the top middle
speakers. In this case, set the ceiling speakers to be connected under “Height” -
“Layout” in the menu. (v p. 219)
