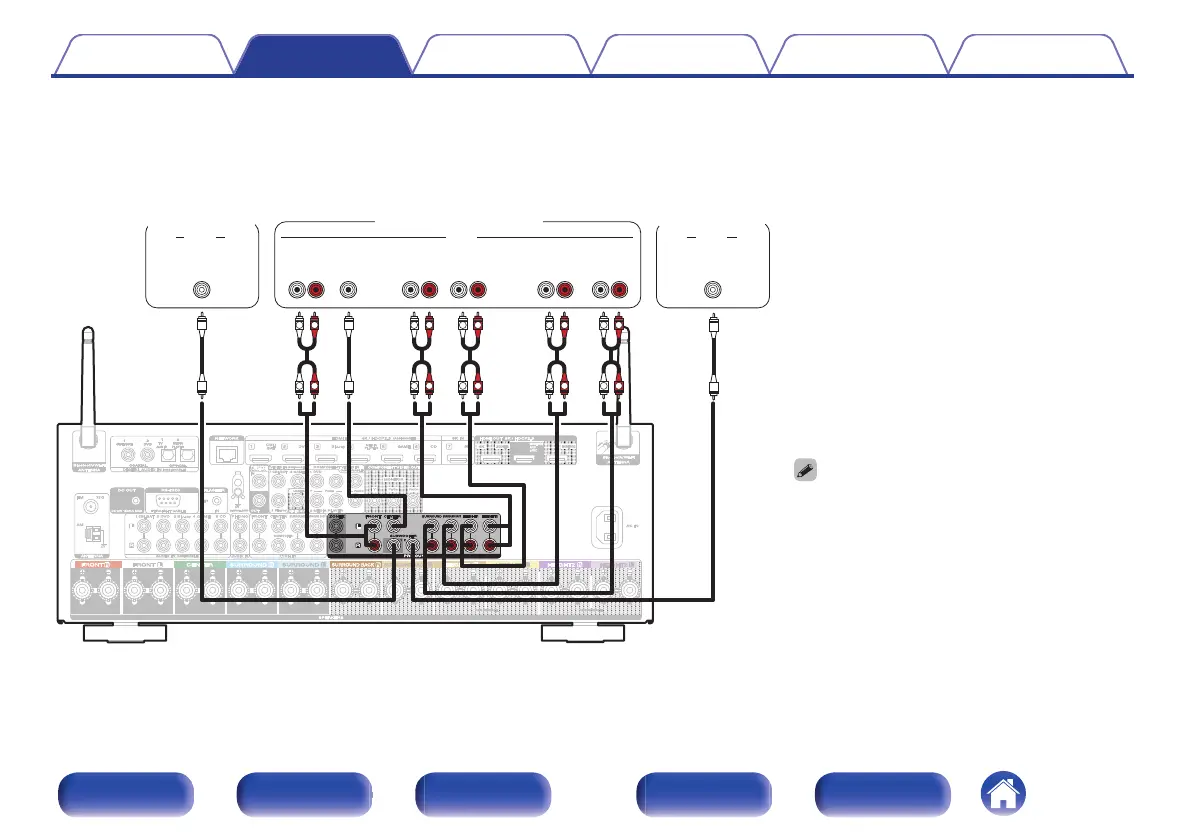

Connecting an external power amplifier
You can use this unit as a pre-amp by connecting an external power amplifier to the PRE OUT connectors. By adding a power amplifier to each
channel, the realness of the sound can be further enhanced.
Select the terminal to use and connect the device.
0
Set “Assign Mode” to “Pre Amplifier” if connecting all
channels to the Pre-out connectors using an external
amplifier. (v p. 217)
This stops operation of the internal power amplifier
of this unit, reducing interference in the pre amplifier
created by the power amplifier.
0
When using just one surround back speaker,
connect it to the left channel (L) terminal.
L
L
R
R
L
L
R
R
L
L
R
R
L
L
R
R
L
L
R
R
CENTER
RL
FRONT
AUDIO
SUB-
WOOFER
2
AUDIO
SUB-
WOOFER
1
AUDIO
SURROUND
BACK
RL
SURROUND
RL
RL
HEIGHT2 HEIGHT1
RL
Subwoofer
(Primary)
Subwoofer
(Secondary)
Power amplifier
