Marathon Electric PANCAKE GENERATOR - Three Phase Connections

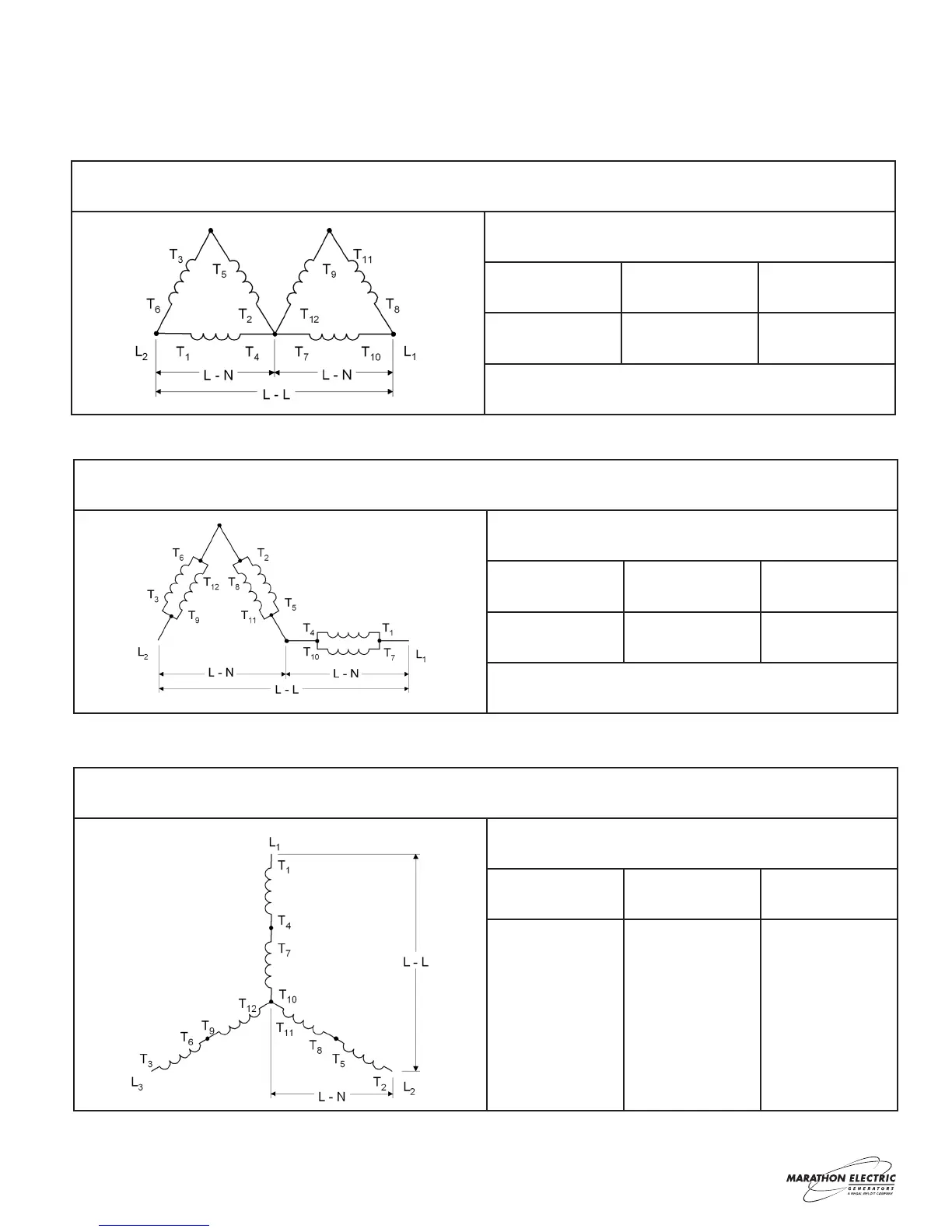

DOUBLE DELTA–SINGLE PHASE CONNECTION
VOLTAGE
L-L L-N
60 HZ 240 120
LOW ZIG ZAG–SINGLE PHASE CONNECTION
VOLTAGE
L-L L-N
60 HZ 240 120
12 LEAD HIGH VOLTAGE (SERIES) WYE (STAR) CONNECTION
VOLTAGE
L-L L-N
60 HZ
480
460
440
416
277
266
254
240
Three phase, 12 lead generator connections.
Note: 12 lead Pancake generators are not broad range voltage machines. The voltages available in a given three
phase connection are model specific. Refer to the generator nameplate, or the factory, with the generator model
number, for the voltage available from your unit in any of the below listed connections.
