Marathon Electric PANCAKE GENERATOR - Page 8

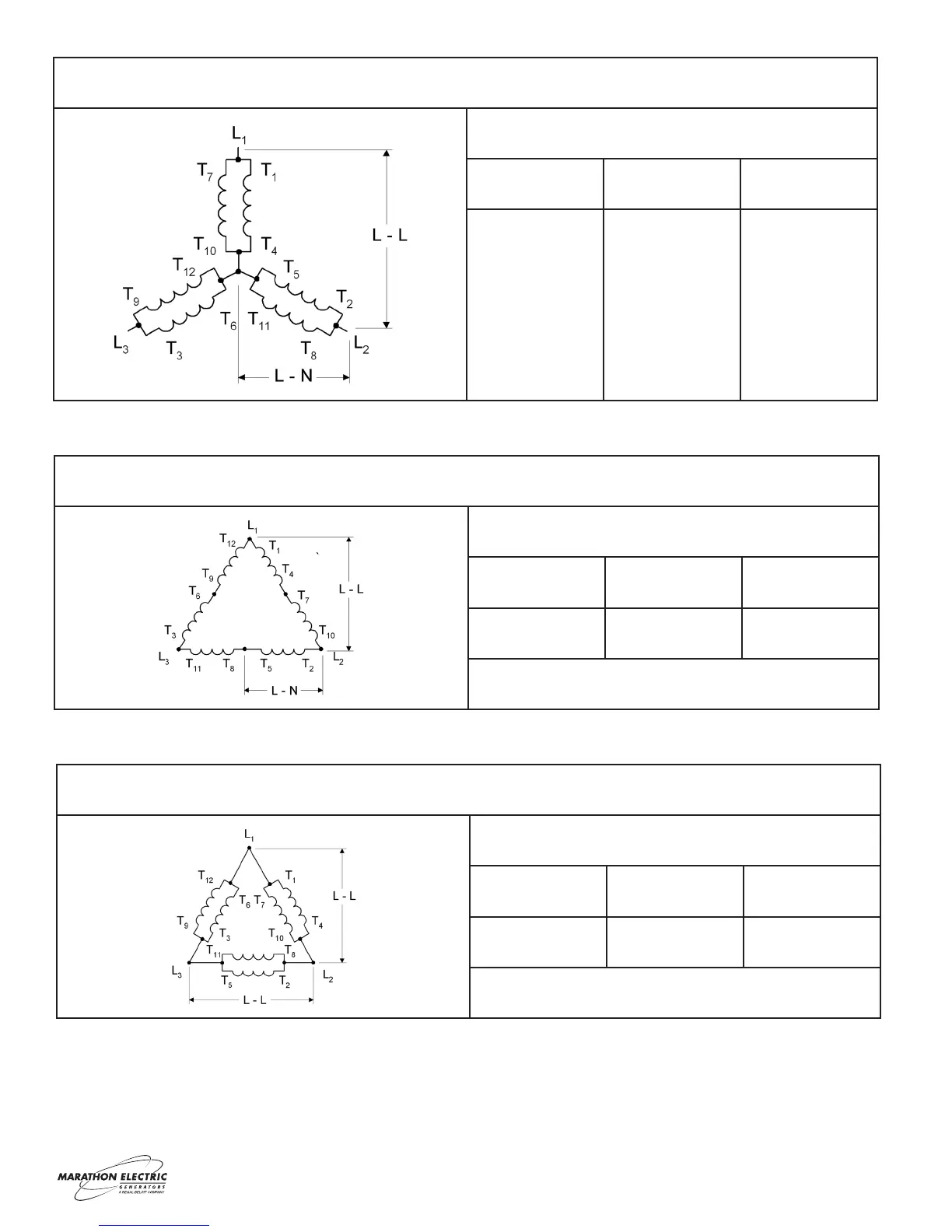

12 LEAD HIGH VOLTAGE (PARALLEL) WYE (STAR) CONNECTION
VOLTAGE
L-L L-N
60 HZ
240
230
220
208
139
120
127
120
12 LEAD HIGH VOLTAGE (SERIES) DELTA CONNECTION
VOLTAGE
L-L L-N
60 HZ 240 120
12 LEAD HIGH VOLTAGE (PARALLEL) DELTA CONNECTION
VOLTAGE
L-L L-N
60 HZ 120 N.A.
