Technical Specifications & Assembly
MAX BIN WASTE STORAGE SYSTEM
Tray and Slide Installation
Tray and Slide Installation

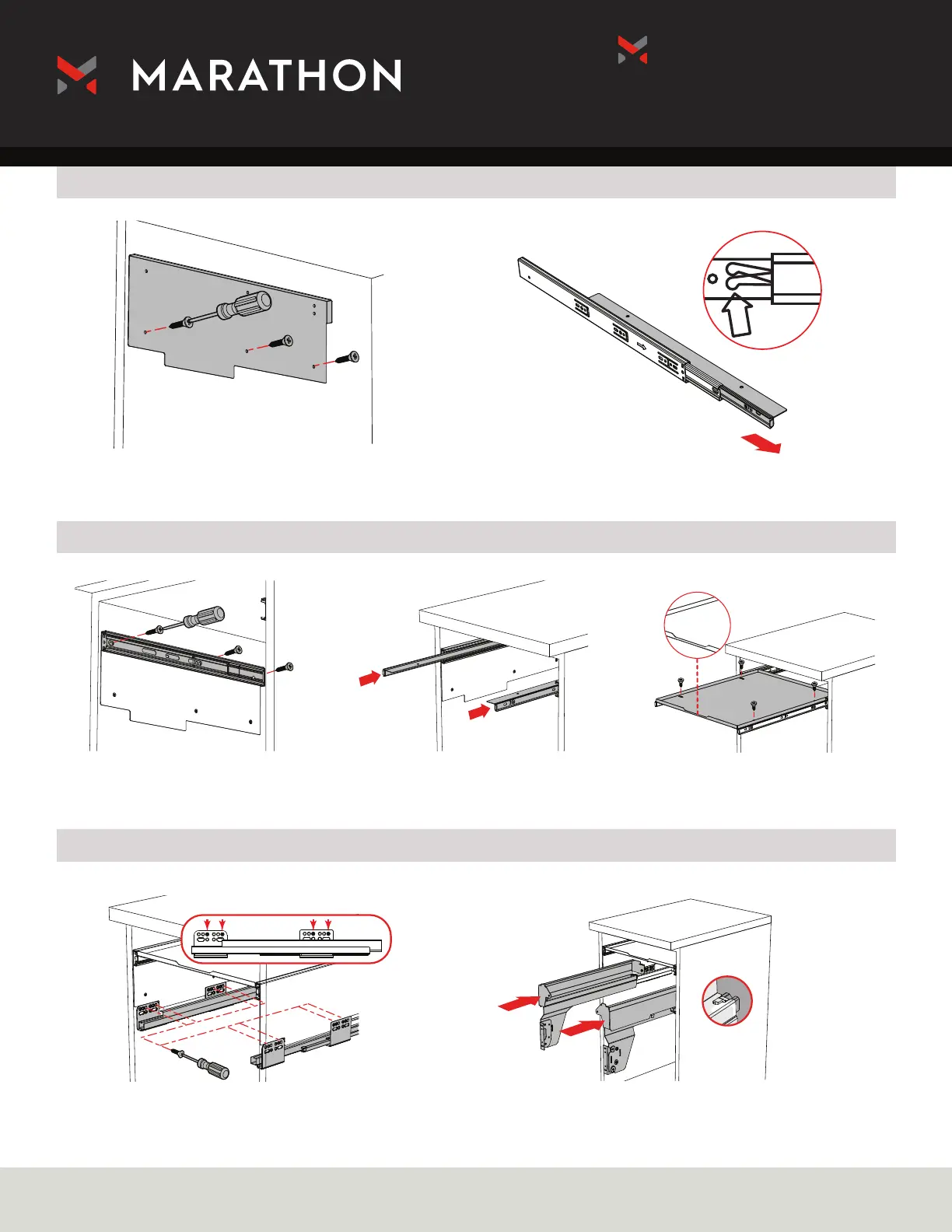

Waste System Slide Installation
Attach both left and right metal plates to cabinet wall using
supplied screws.
Install the top runners with another 6
bracket screws.
Release left and right tray runners from bracket.
Install top runner brackets.
Makes click sound.
Align screw mounting tabs with slots in the bottom of
the bracket. Affix with screws.
Install metal tray loosely with screws,
allowing for adjustment.
Install Waste System brackets onto slides. Makes a click sound.
To Next Page
