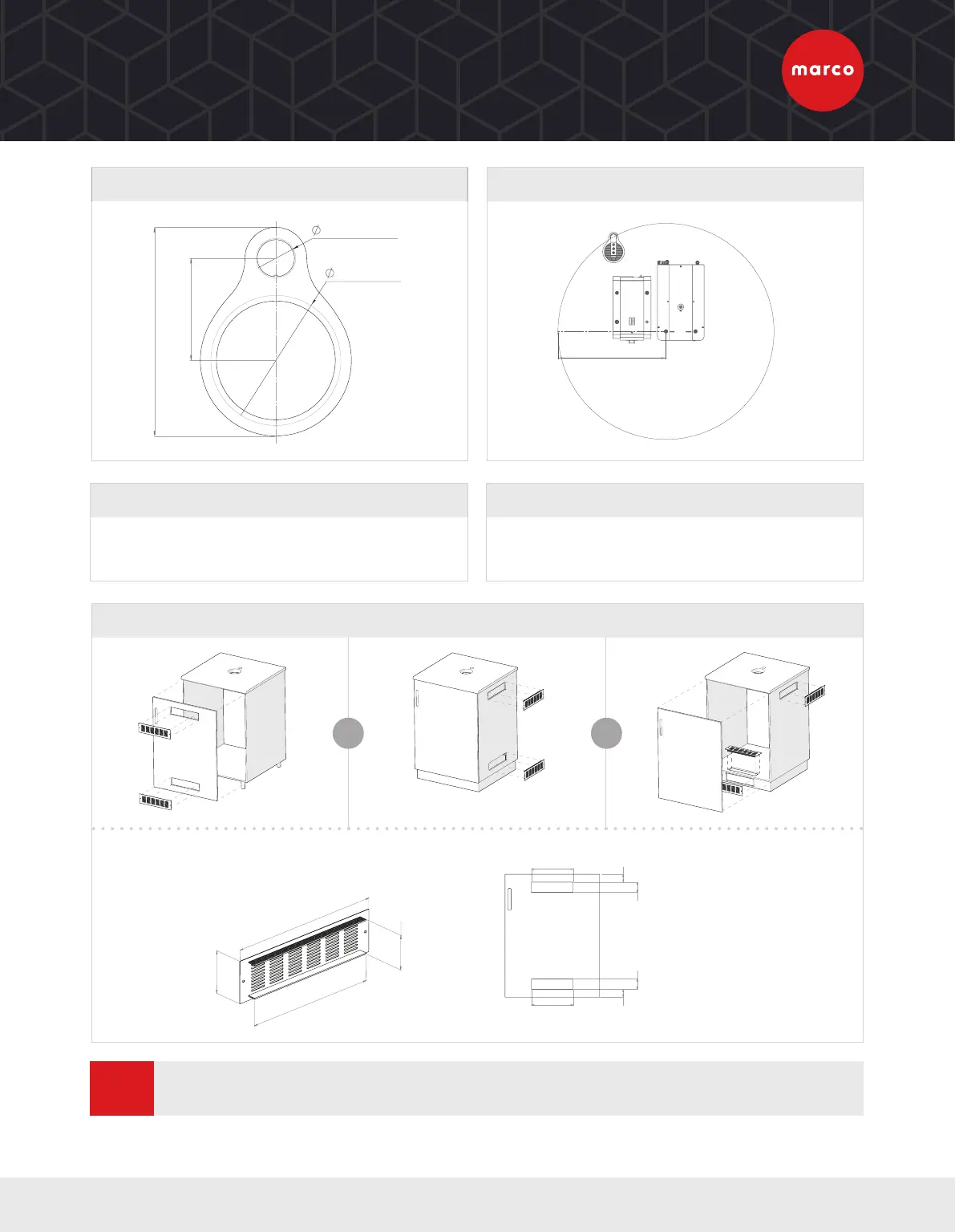

Marco MIX UC3 - FRIIA System Installation Requirements; Counter Cut-Outs; Font Placement Radius; Cabinet and Ventilation

For more information visit www.marcobeveragesystems.com
RADIUS OF MAXIMUM FONT PLACEMENT
COUNTER CUT
-
OUTS
4”/100mm
For drip-tray only
1.25”/32mm
3.25”/82.5mm
6.6”/168mm
VENTILATION
OR OR
23.6”/600mm
Standard
800mm high
cabinet
3.1”/80mm
11.8”/300mm
10.2”/260mm
2.5”/
65mm
1.9”/50mm
2.5”/
65mm
10.4”/265mm
10.4”/265mm
1.9”/50mm
2.5”/65mm
It is essential to allow for two ventilation points when installing FRIIA. Vents are not supplied. Where possible,
we recommend removing the back of your cabinet.
PLEASE
NOTE
CABINET
Min: 800mm (h) x 600mm (w) x 600mm (d) with 100mm clearance
around machines all sides
OPERATING ENVIRONMENT
Cannot exceed temperature of 35°C
FRIIA SYSTEM OVERVIEW
