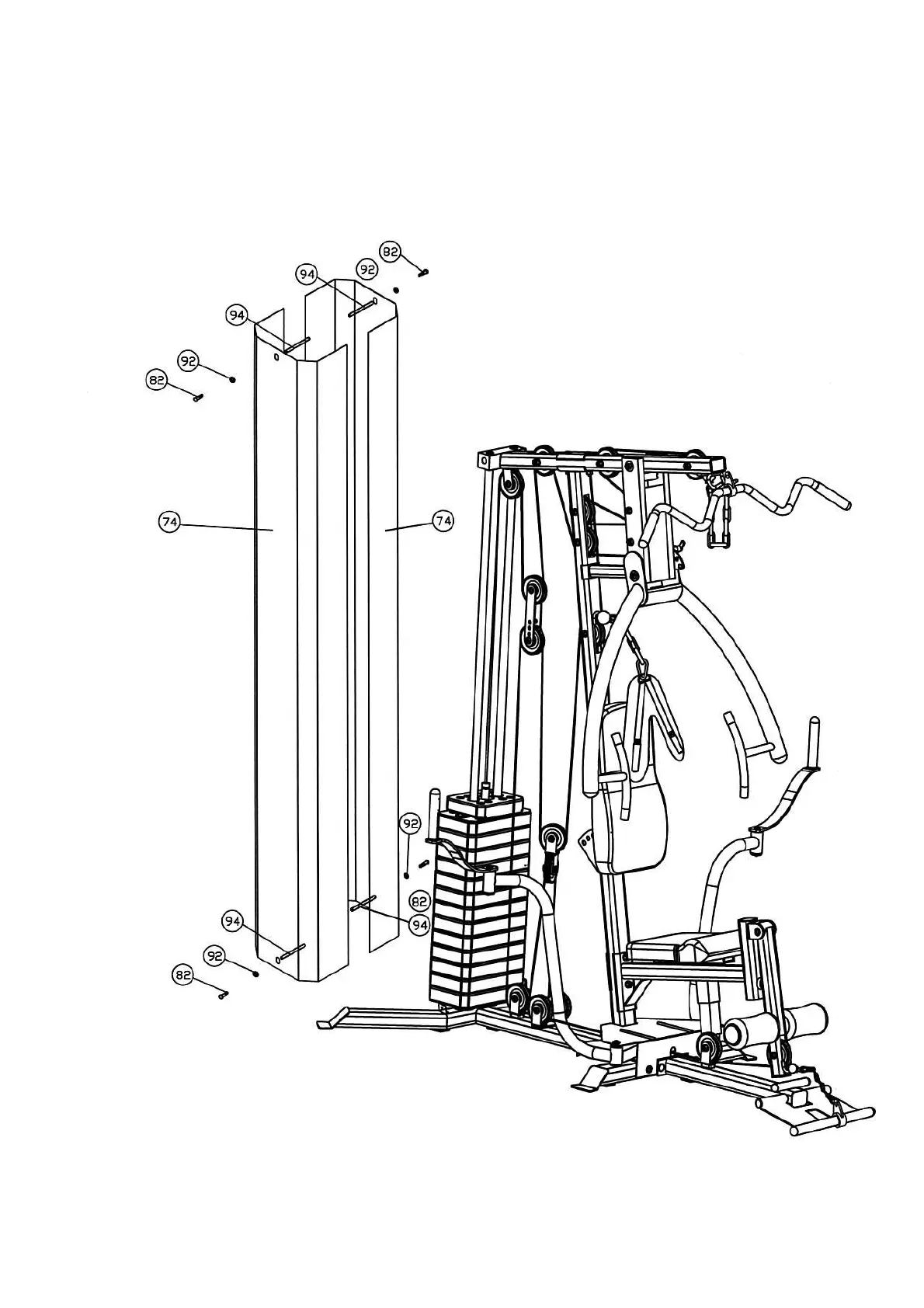

Step 10 (See Diagram 10)
A.) Attach the two Weight Stack Covers (#74) with four 3” Sleeve (#94) to the Upper Frame (#1)
and Rear Stabilizer (#15).
B.) Secure them with four M10 x 3¾” Allen Bolts (#82) and four Ø ¾” Washers (#92).
DIAGRAM 10
25
