STEP 4 (See Diagram 4)
A.) Attach the Seat (#32) to the Seat Post (#6). Secure it with two M8 x 1 5/8” Allen Bolts (#86)
and Ø 5/8” Washers (#88).
B.) Insert the Seat Post into the opening on the Seat Support Frame (#7). Thread the Lock Knob
(#40) into the hole on the Seat Support Frame to lock the Seat at selected height.
C.) Insert the Foam Tube (#23) halfway through the hole on the Leg Developer (#8). Push two
Foam Rolls (#48) onto the Foam Tube from both ends. Plug two Foam Roll End Caps (#61)
into the Ends.

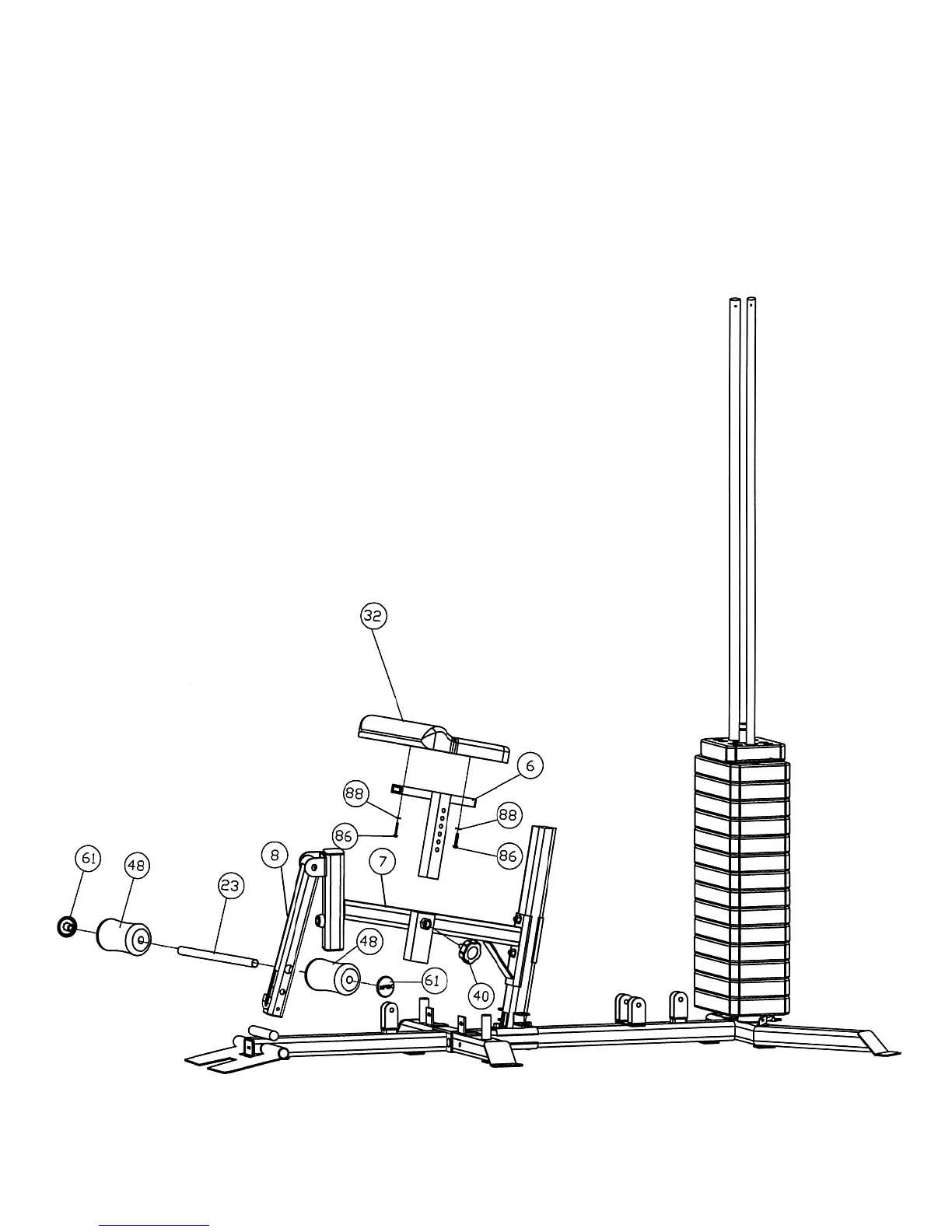

DIAGRAM 4
12
