STEP 2 (See Diagram 2)
A.) Do not tighten Nuts and Bolts until instructed to do so.
B.) Install a Front Leg End Cap (#20) onto the bottom of Front Leg (#5). Attach the Front
Leg to the Main Seat Support (#3). Secure it with three M8 x 5/8” Allen Bolts (#35) and
three Ø 5/8” Washers (#40).
C.) Attach the Main Seat Support (#3) to the Cross Brace (#4). Attach the Main Seat
Stabilizer (#9) to the Main Seat Support. Align the holes. Secure the Main Seat
Support, Main Stabilizer, and Cross Brace together with two M10 x 2 3/8” Carriage
Bolts (#34), two Ø ¾” Washers (#39), and two M10 Aircraft Nuts (#43).
D.) Attach the other end of Main Seat Stabilizer (#9) to the Front Leg (#5). Secure it with
one M8 x 5/8” Allen Bolt (#35) and Ø 5/8” Washer (#40).
E.) Securely tighten all Nuts and Bolts previously installed.

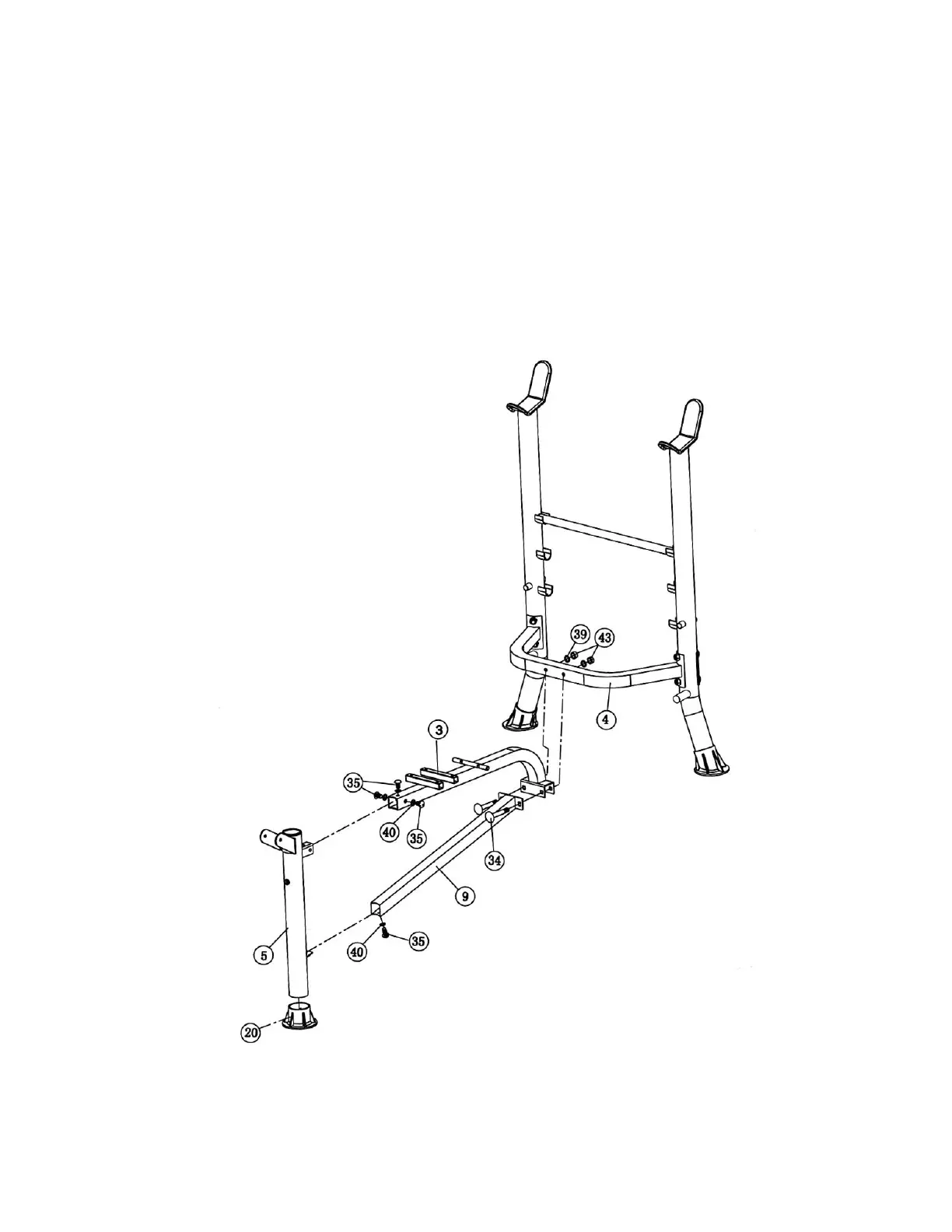

DIAGRAM 2
6
