ASSEMBLY INSTRUCTION
Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches
NOTE: It is strongly recommended that two or more people assemble this machine
to avoid possible injury.
STEP 1 (See Diagram 1)
A.) Weight bench should be placed on a flat, level, clear surface during workout
and storage to avoid any potential injuries. Should a level surface be
unavailable, please ensure that the incline or decline is no more than 3 degrees
for optimal safety and performance.
B.) Do not tighten Nuts and Bolts until instructed to do so.
C.) Install the two Upright End Caps (#17) onto the bottom of the Right & Left Upright
Beams (#1 & #2). Secure each Cap with a ST5 Screw (#42).
D.) Connect the two Upright Beams by a Cross Brace (#4) in the Mid-span. Secure them
with two M10 x 3 1/8” Carriage Bolts (#33), one Curved Bracket (#12), two ¾”
Washers (#39), and two M10 Aircraft Nuts (#43) on each end of the Cross Brace.
E.) Place the Backrest Adjustment Bar (#32) onto the selected slots on the Upright Beams
to obtain desired incline for the Backrest.

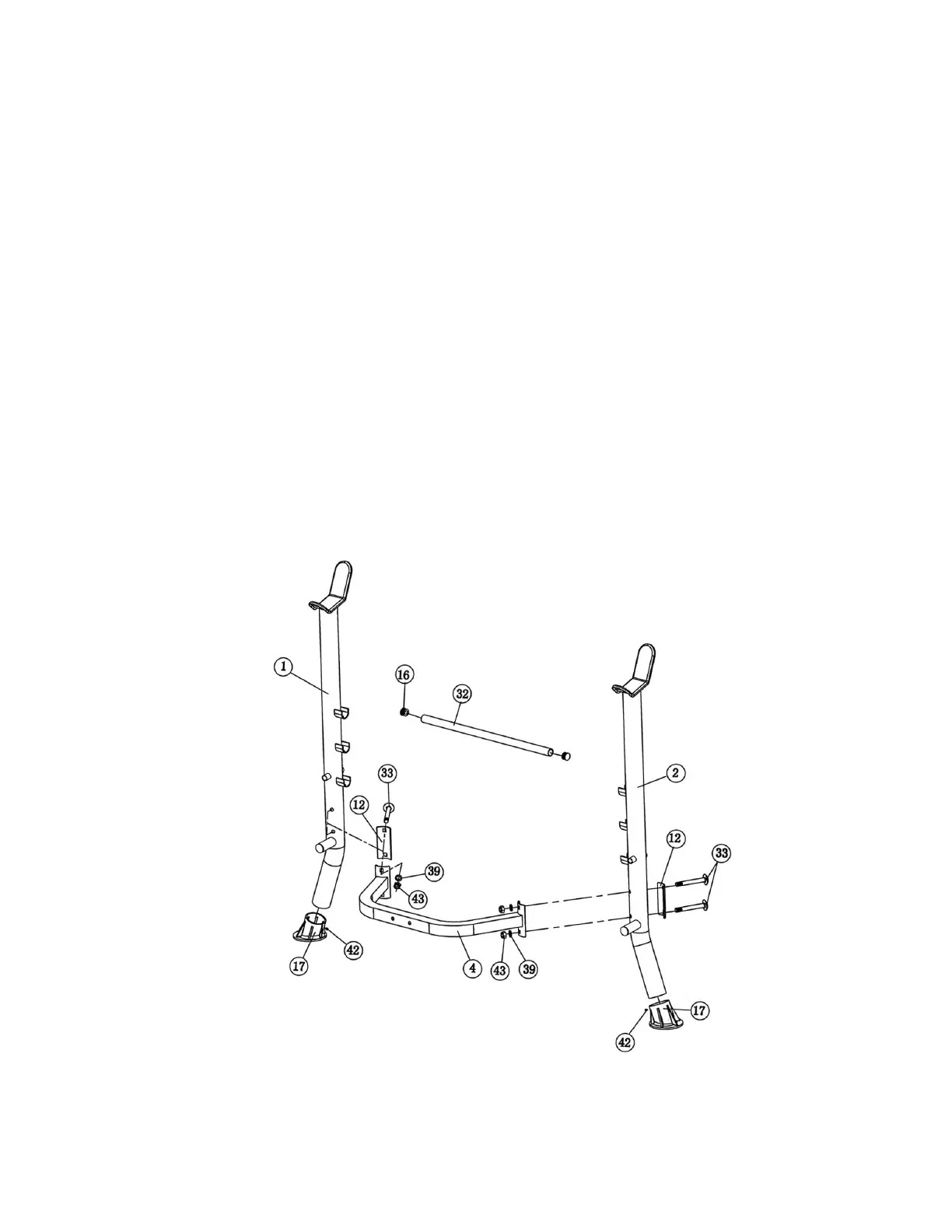

DIAGRAM 1
5
To Next Page
