STEP 4 (See Diagram 4)
A.) Attach the Backrest Supports (#10) onto both ends of the pivot on the Main Seat Support
(#3). Place the other end rest against the Backrest Adjustment Bar (#32).
B.) Place the Backrest Board (#31) onto the Backrest Supports. Secure it with four M6 x 1 ½”
Hex Bolts (#46) and Ø ½” Washers (#41).
C.) Place the Seat Pad (#30) onto the Main Seat Support. Secure it with four M6 x 1 3/8” Hex
Bolts (#38) and Ø ½” Washers (#41).

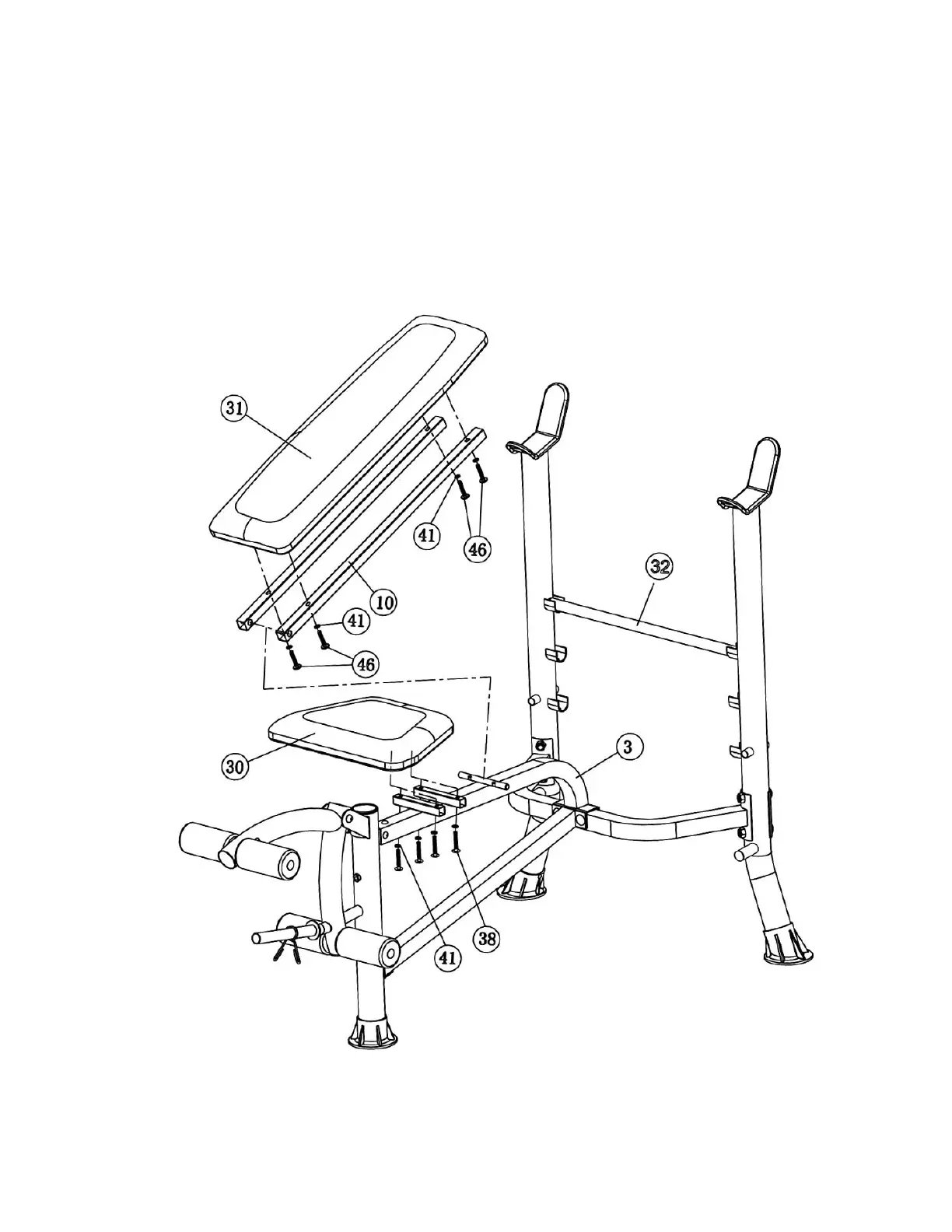

DIAGRAM 4
8
