©IMPEX INC. www.impex-fitness.com 11

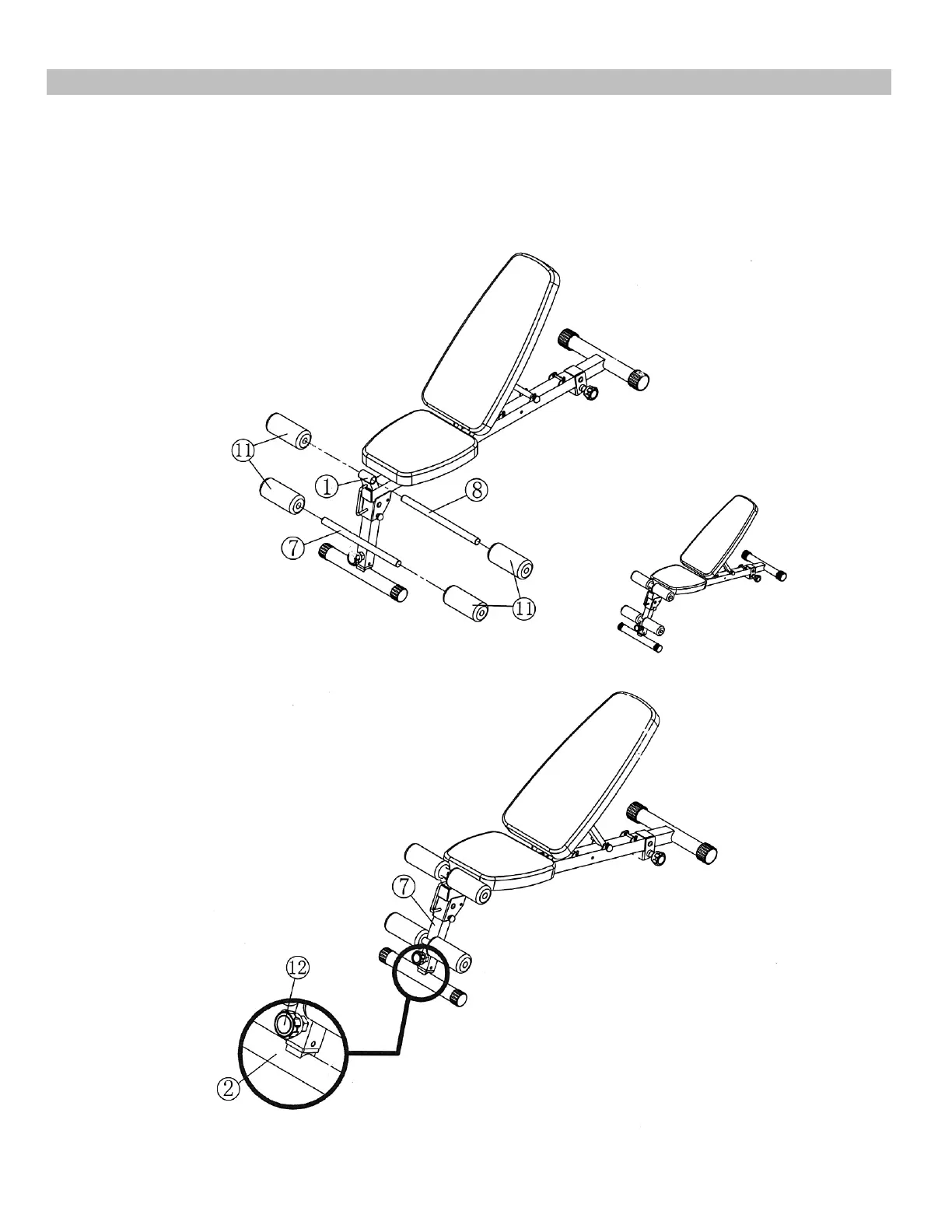

FOAM ROLL INSTALLATION
A.) Insert Foam Tube (#8) into the opening on Main Seat Support (#1). Slide two Foam Rolls (#11)
onto the Tube from each end.
B.) Slide two Foam Rolls onto the tube on Leg Support Frame from each end.
C.) Loosen the Lock Knob (#12) on Leg Support Frame, select height of Front Support and fasten the
Lock Knob to securely lock Front Support in position at selected height.
