7

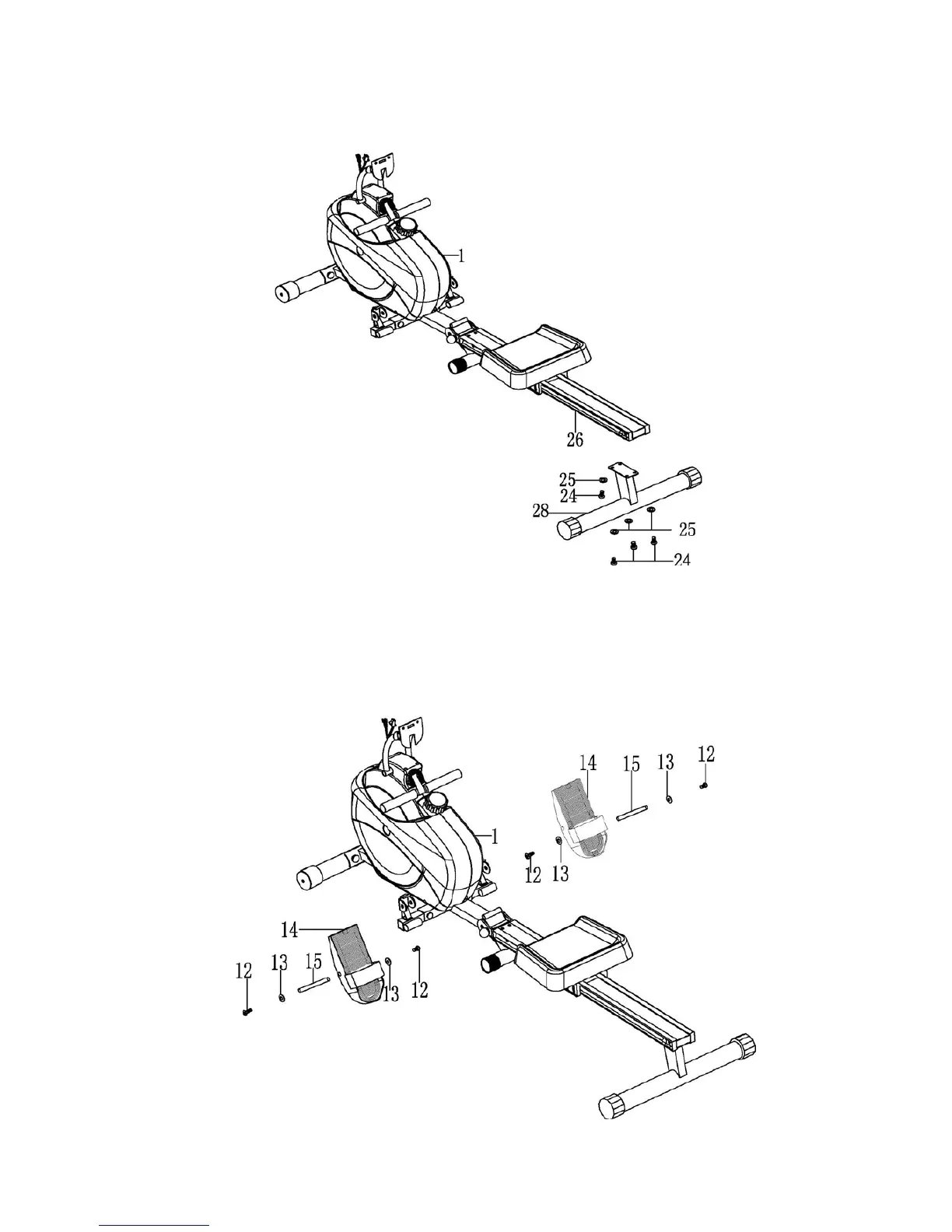

Step 3
Attach the rear stabilizer (28) to back of the slide rail (26). Secure using four allen bolts (24)
and four washers (25).
Step 4
 Remove the allen bolts (12), washers (13) and the axle (15) from the left pedal (14L).
 Attach the left pedal (14L) to the left bracket of the pedal support tube (17). Slide the
axle (15) through the left pedal (14L). Secure using two allen bolts (12) and two
washers (13).
 Repeat the above procedure for right pedal (14R).
