STEP 5

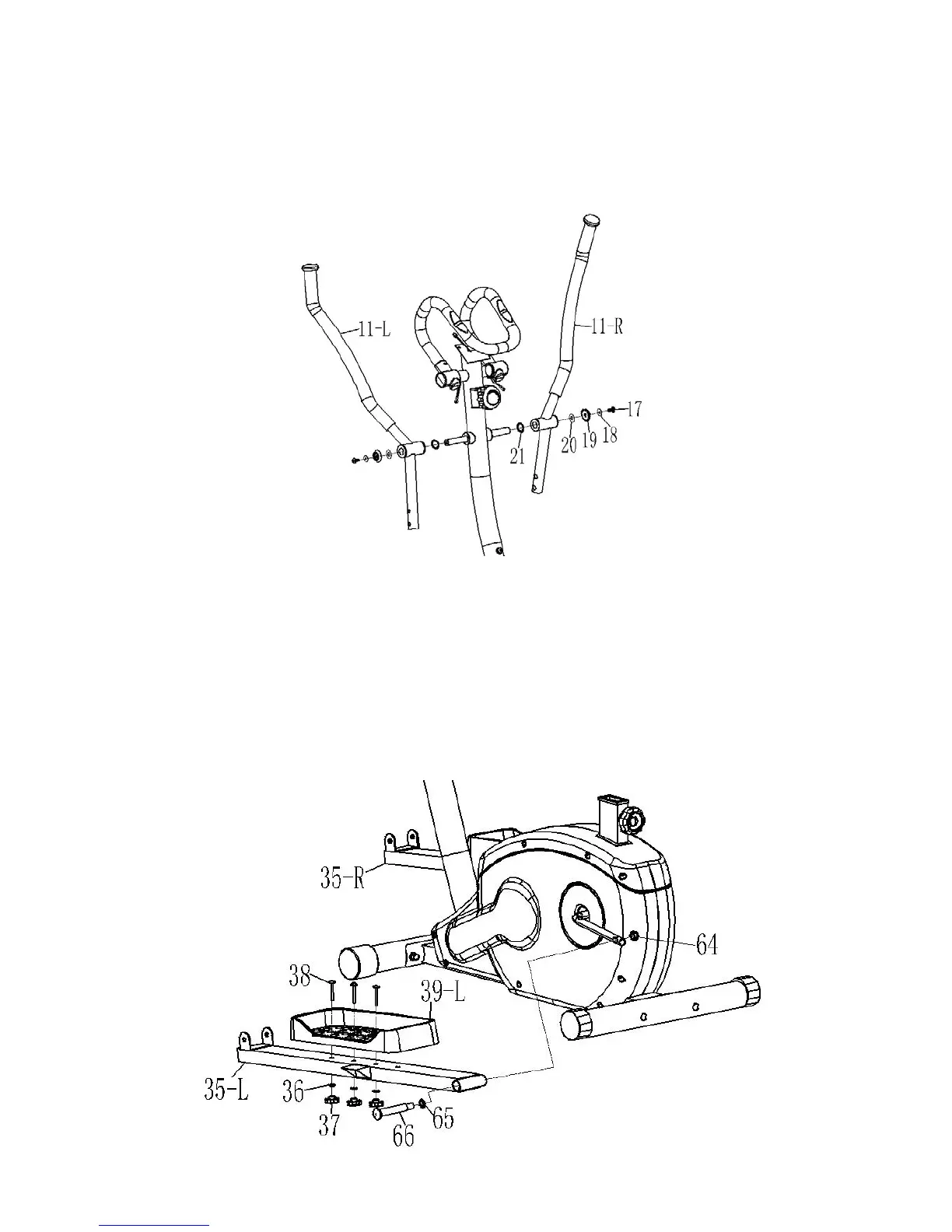

Assemble the upper movable handlebar right (11-R) onto the handlebar post and secure into
position using 1 wavy washer (21), flat washer (20), plastic washer (19), flat washer (18) and allan
head bolt with blue dot (17).
Repeat the above procedure for the upper movable handlebar left (11-L).
STEP 6
Assemble the left pedal (39-L) onto the left pedal arm (35-L) and secure into position using 3 bolts
(38), small flat washers (36) and adjustment knobs (37).
Assemble the pedal arm assembly onto the main frame and secure using 1 pedal hinge bolt (66-L),
Flat Washer (65), and nylon lock nut (64). Note; the pedal hinge bolts left & right are marked L &
R respectfully. The left hand hinge bolt uses a Left Hand Thread.
Repeat the above procedure for the Right Pedal Arm (35-R).
To Next Page
