Mareno 70 Series - Installation Diagram

APPENDICE - ANHANG -APPENDIX - APPENDICE - APÉNDICE - AANHANGSEL
SERIE 70
Mod. AC7-..., AC7FG-..., AC7FE-...

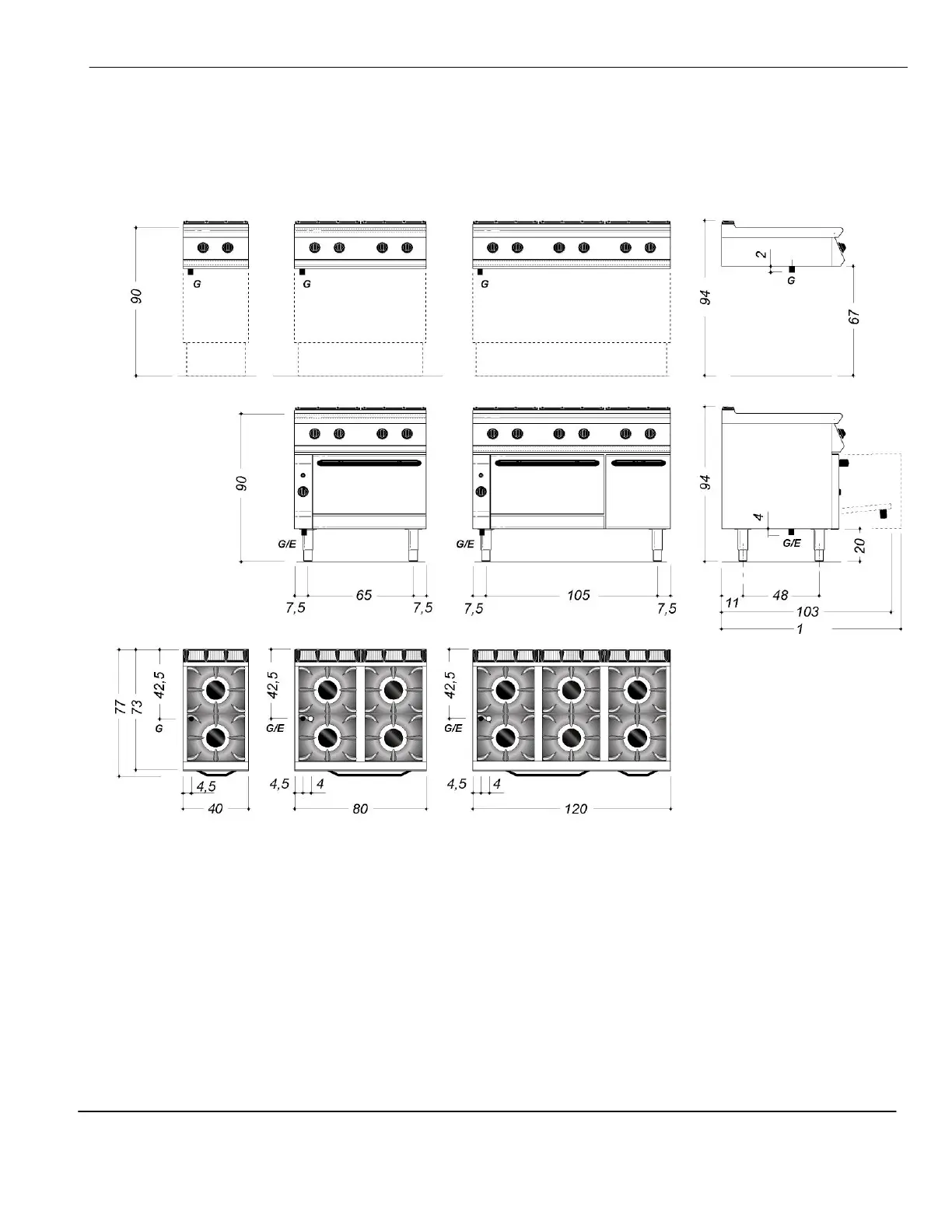

INSTALLATION DIAGRAM
Measurements in cm
Key
G - Gas connection ISO 7/1 R3/4
E - Electric cable stress relief
