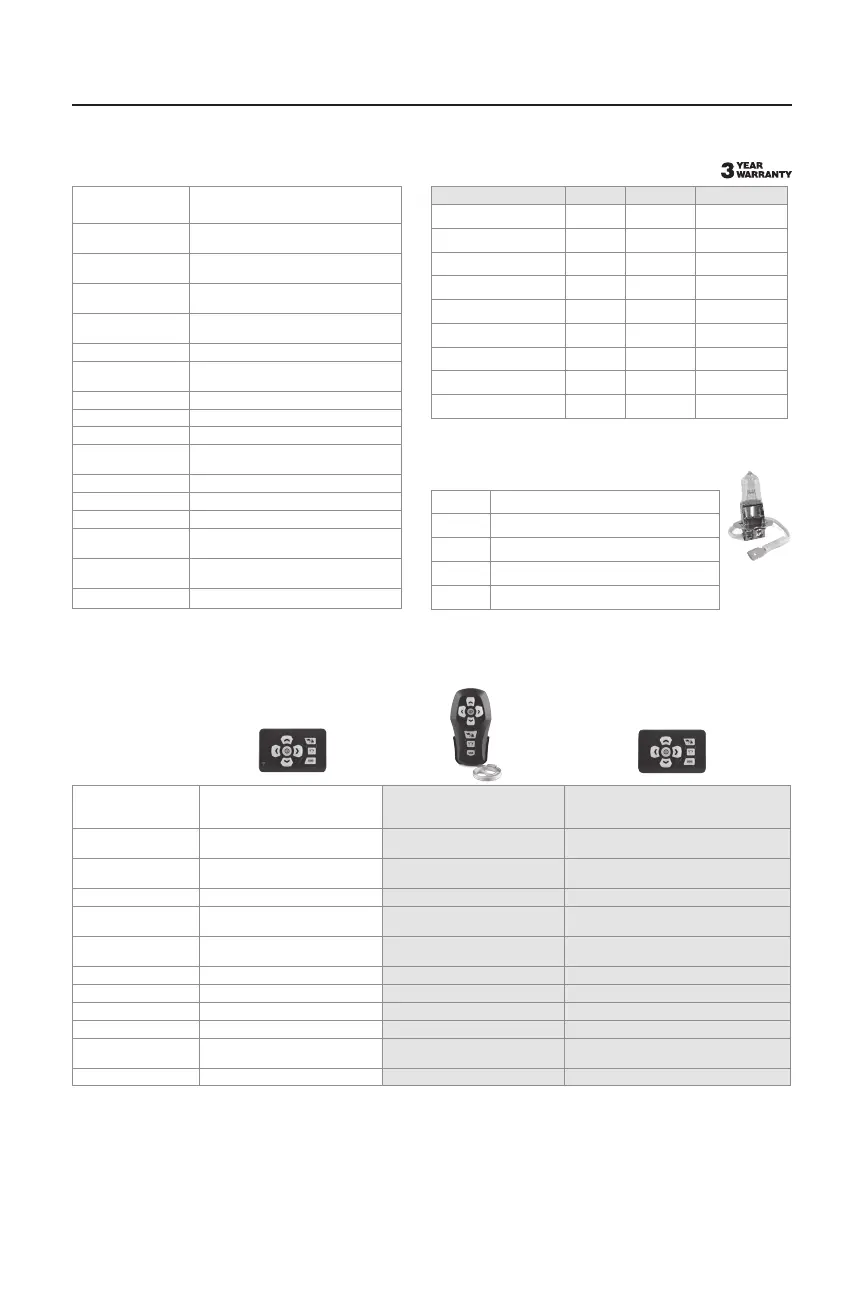

Precision Spotlight Instructions
6
Description Color Item #
OEM #
12/24 Volt, 100 Watt white
SPL-12W
—
12/24 Volt, 100 Watt black
SPL-12B
—
12/24 Volt, 100 Watt chrome
SPL-12C
—
12 Volt, 100 Watt white — SPL-12W.OEM
12 Volt, 100 Watt black — SPL-12B.OEM
12 Volt, 100 Watt chrome — SPL-12C.OEM
24 Volt, 100 Watt white — SPL-24W.OEM
24 Volt, 100 Watt black — SPL-24B.OEM
24 Volt, 100 Watt chrome — SPL-24C.OEM
Remote Specifications
Included *
Wireless Bridge Remote
(SPLR-2)
(Optional) †
Hand Held Bridge Remote
(SPLR-1)
(Optional) s
Wired Bridge Remote
(SPLR-3)
Power
12 or 24 Volt
(hard wired to power)
CR2450 button
cell battery
12 or 24 Volt
(hard wired to spotlight)
Current draw
(idle / in use)
negligible negligible negligible
Wireless range
200 ft (65m) 200 ft (65m) —
Estimated
battery life
—
> 40 hours
(continuous use)
—
Dimensions
3.5"W x 2.25"H x .75"D
88mm x 57mm x 19mm
2.0"W x 3.78"H x 1"D
51mm x 96mm x 25mm
3.5"W x 2.25"H x .75"D
88mm x 57mm x 19mm
Weight
2.12 oz. (60g) 2.82 oz. (80g) 2.12 oz. (60g)
Housing material
UV resistant PC/ASA UV resistant PC/ASA UV resistant PC/ASA
Button material
Silicone (glow in the dark) Silicone (glow in the dark) Silicone (glow in the dark)
Wire
16AWG — 24AWG
Operating
temp range
5°F to 113°F (-15°C to 45°C) 5°F to 113°F (-15°C to 45°C) 5°F to 113°F (-15°C to 45°C)
IP Rating
IP54 IP56 IP54
* There is no wiring required from the spotlight to the bridge remote. The spotlight and the bridge remote must be wired locally to power.
†
The hand held bridge remote includes a wrist lanyard and a surface mount cradle.
s The wired bridge remote requires hard wiring of 2 leads from the spotlight to the bridge.
Replacement Parts
202319
12V, H3 halogen replacement bulb
202320
24V, H3 halogen replacement bulb
SPLR-1
Spotlight remote, wireless hand-held
SPLR-2
Spotlight remote, wireless bridge mount
SPLR-3
Spotlight remote, wired bridge mount
Bulb
100 Watt, H3 Halogen (replaceable)
(12 Volt installed / 24 Volt included)
Power
(Input voltage)
12 Volt or 24 Volt
(note: must match bulb with voltage)
Current draw
(idle / in use)
0.03 Amps / 7.0 Amps
Peak beam
intensity
210,000 cp
Peak beam
distance
917 ft (280 m)
Lux @ 66' (20m)
525 Lux
Coverage at 66'
(20 m)
132 sq Ft
(12 sq m)
Rotatation
370° (built in limit stops)
Tilt
120° Tilt (75°◦up and 45° down)
Wireless range
200 ft (65m)
Dimensions
7.5"W x 7.5"H x 9.25"D
(19cm x19cm x 23.5cm)
Weight
3.30 lbs (1.5 kg)
Housing material
UV resistant PC/ASA
Lens material
UV resistant Lexan
®
Wire type
16 AWG power
24 AWG control
Operating
temp range
5°F to 113°F (-15°C to 45°C)
IP Rating
IP56
Tested in accordance with ANSI/NEMA standard FL1
