27
RS-232
123456
pin 2 = Rx from PC
pin 3 = Tx to PC
pin 5 = ground
Note that only qualified technicians should attempt to make use
of the special capabilities afforded by this communications port.
AC power connector (on bottom)
This input accepts AC power from the AC mains (via the supplied
AC cable).
Connect the female end of this cable to the Nº360. Connect the
male end of this cable to wall outlet or to an “unswitched” conve-
nience outlet like those found on many audio components.

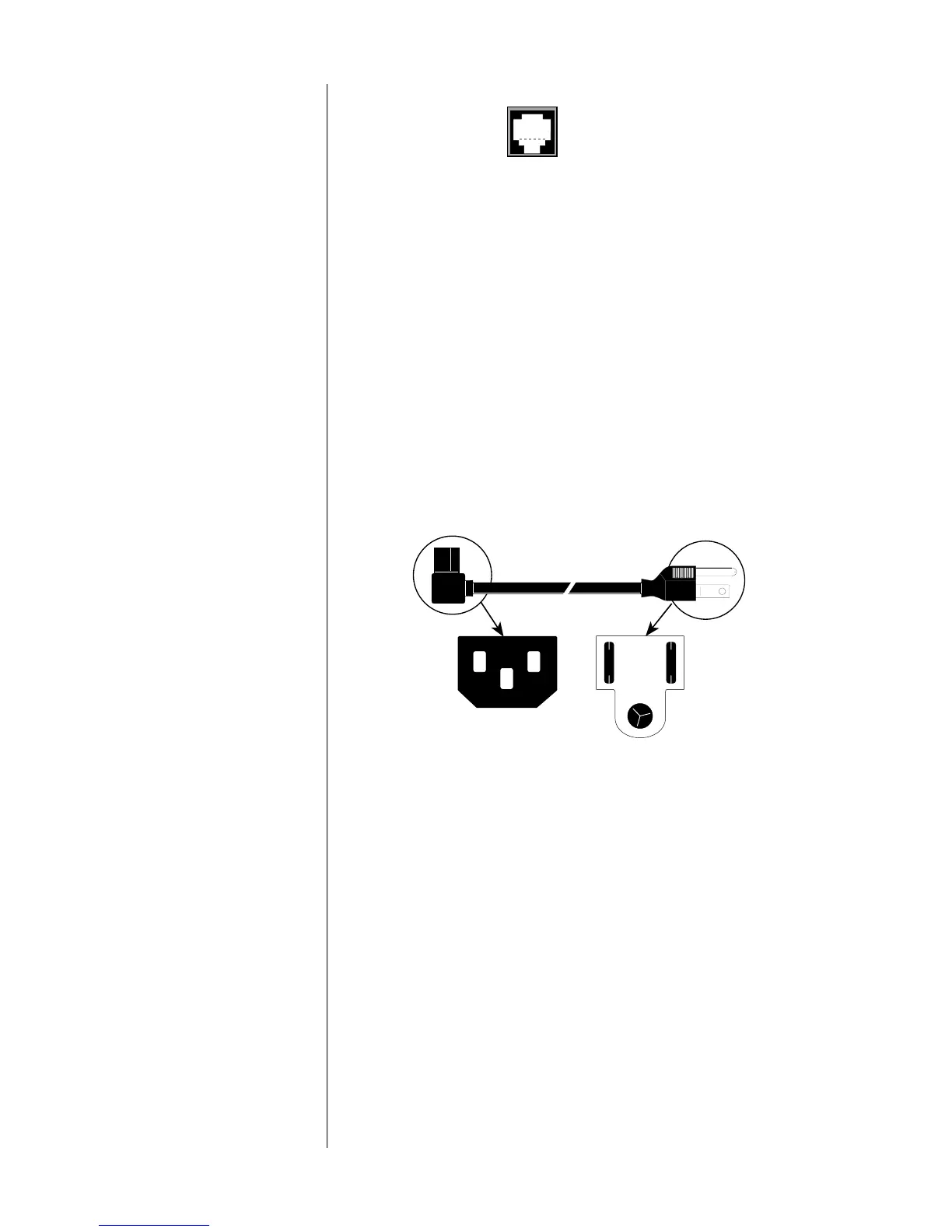

AC power cord polarity
To Nº360
To AC mains
1
3
2
1
2
3
1 = Line (hot)
2 = Neutral
3 = Earth ground
