519 AUDIO PLAYER / OWNER’S MANUAL
ENGLISH
GETTING STARTED

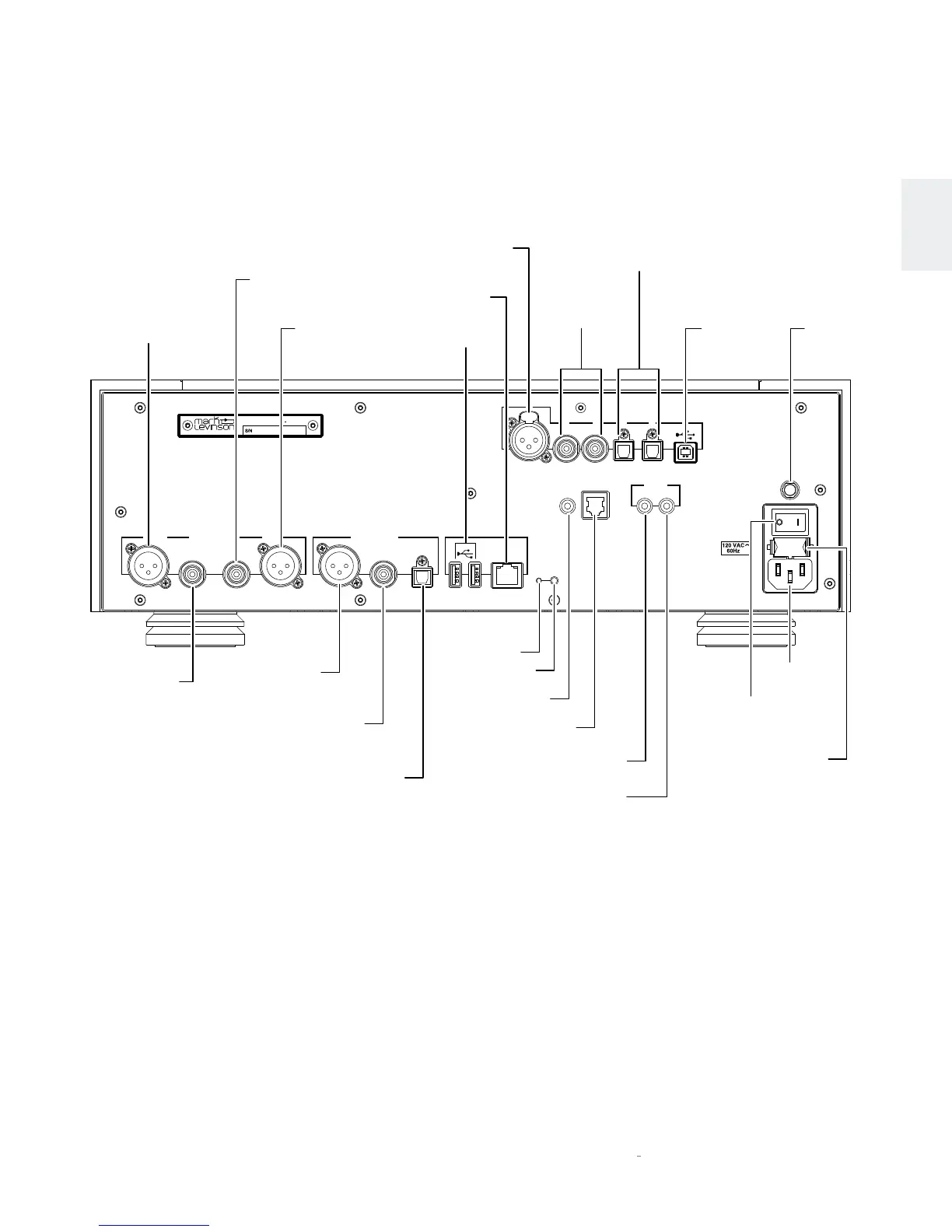

REARPANEL OVERVIEW
digital inputs
digital inputs
~ ac mains
70W
1
2 3 4 5 6
ethernet
IR
input
RS-232
outin
trigger
digital outputs
Harman International Indust ries, Inc.
reset
wps
antenna
analog outputs
RIGHT
LEFT
Designed and assembled in U.S.A.
AUDIO PLAYER N
o
519
S/N
Power
Switch
AC Mains
Connector
USB Digital
Audio Input
Connector
Antenna
Connector
Left Channel
Balanced output
connector
Right Channel
Balanced output
connector
Fuse Compartment
(see rear-panel
labeling for value)
Balanced
AES/EBU
Digital Input
Connector
Ethernet Connector
Coaxial
Digital Input
Connectors
Optical
Digital Input
Connectors
Optical
Digital Output
Connector
Coaxial
Digital Output
Connector
Balanced AES/EBU
Digital Output
Connector
IR Input
Connector
WPS button
Reset button
RS-232 Connector
Trigger Input
Connector
Trigger Output
Connector
Left Channel
Single-ended
output connector
Right Channel
Single-ended
output connector
USB
connector
