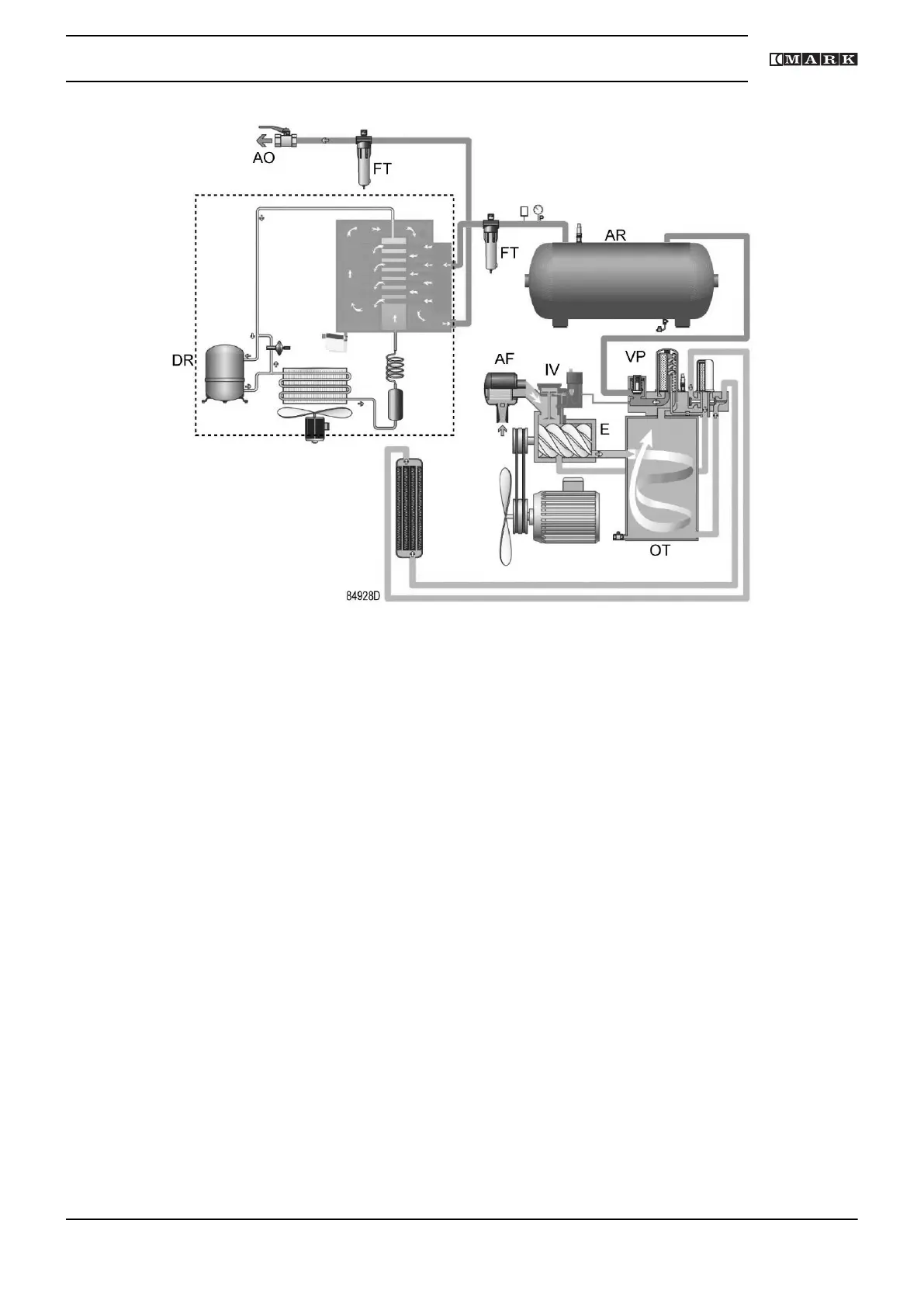

Air flow, Tank-mounted with dryer
Air drawn through filter (AF) and open inlet valve (IV) into compressor element (E) is
compressed. Compressed air and oil flow into oil separator/tank (OT). The air is discharged via
minimum pressure valve (Vp), air receiver (AR) and air dryer (DR) towards the air outlet (AO).
The unit has 2 filters (FT). The G filter (coarse) is located upstream the dryer, the C filter (fine) is
located downstream the dryer.
Instruction book
2920 7201 40 15
