(29) to such an extent that the
bottom fabric pocket can be fed
into the keyway of the front pro-
file. Insert the spline (31) into the
cover pocket and place the fabric
bullet (32) in the keyway (do not
screw it down tight yet).
50 cm.

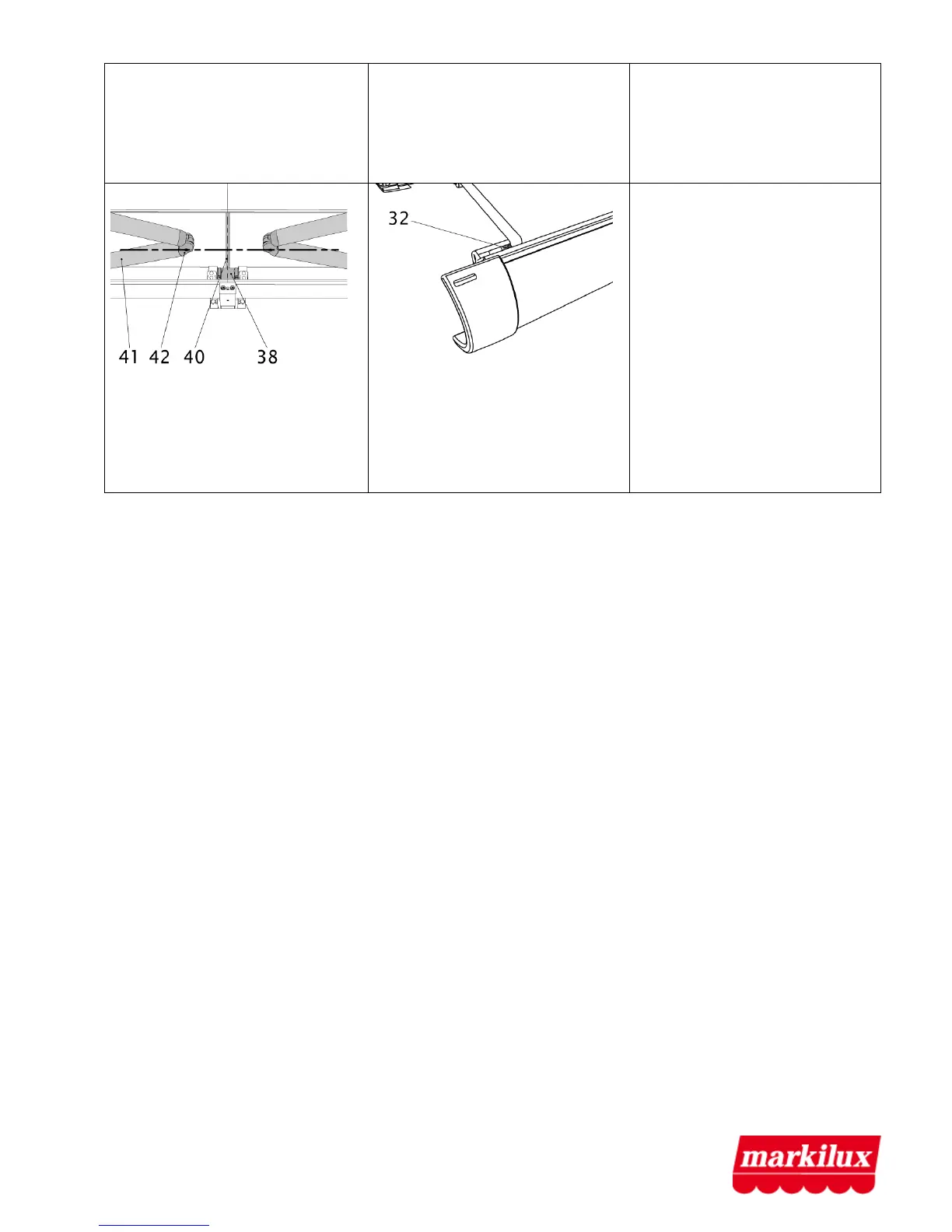

25. Adjust the folding arms (41) of
both units so that the elbow joints
(42) are in a straight line.
The seam in the middle of the fab-
ric (40) has to be centered on the
moving belt in the Rolltex bearing
(38).
26. Screw the fabric bullets down
tight (32) on both sides of the
front profile.
27. Adjust the pitch as you
would for a single awning sys-
tem.
See point "4" of the Installation
Instructions for single awnings:
"Setting the awning pitch ".
