These instructions for the replacement of defective illuminants at your markilux underglass awning is to be read and observed.
Exclusively LED lights, which have a very long operating life are used for the lighting of your markilux 879 / 779.
In case of a defective LED-Line, kindly contact your specialist dealer.
If an LED-Spot is defective you can change it yourself.
Regularly check the awning for signs of wear and damage to cables and lamps. If damages occur, an authorised markilux specialist
dealer is to be entrusted with the adjustment.
Awnings which need to be fixed must not be used. Only spare parts released by markilux may be used.
Electrical installation or repairs must be carried out according to the installation specifications
DIN VDE 0100 by a qualified electrician only.
The lighting system must be disconnected from the electricity supply during work on the system (unplug, switch o fuse). Switch on the
lighting only when all cable connections have been established completely.
chapter Lighting type Article no.
7.2 1 piece LED spotlight with plug in the front profile 714881
1 2 3
4
714881
1
2 3

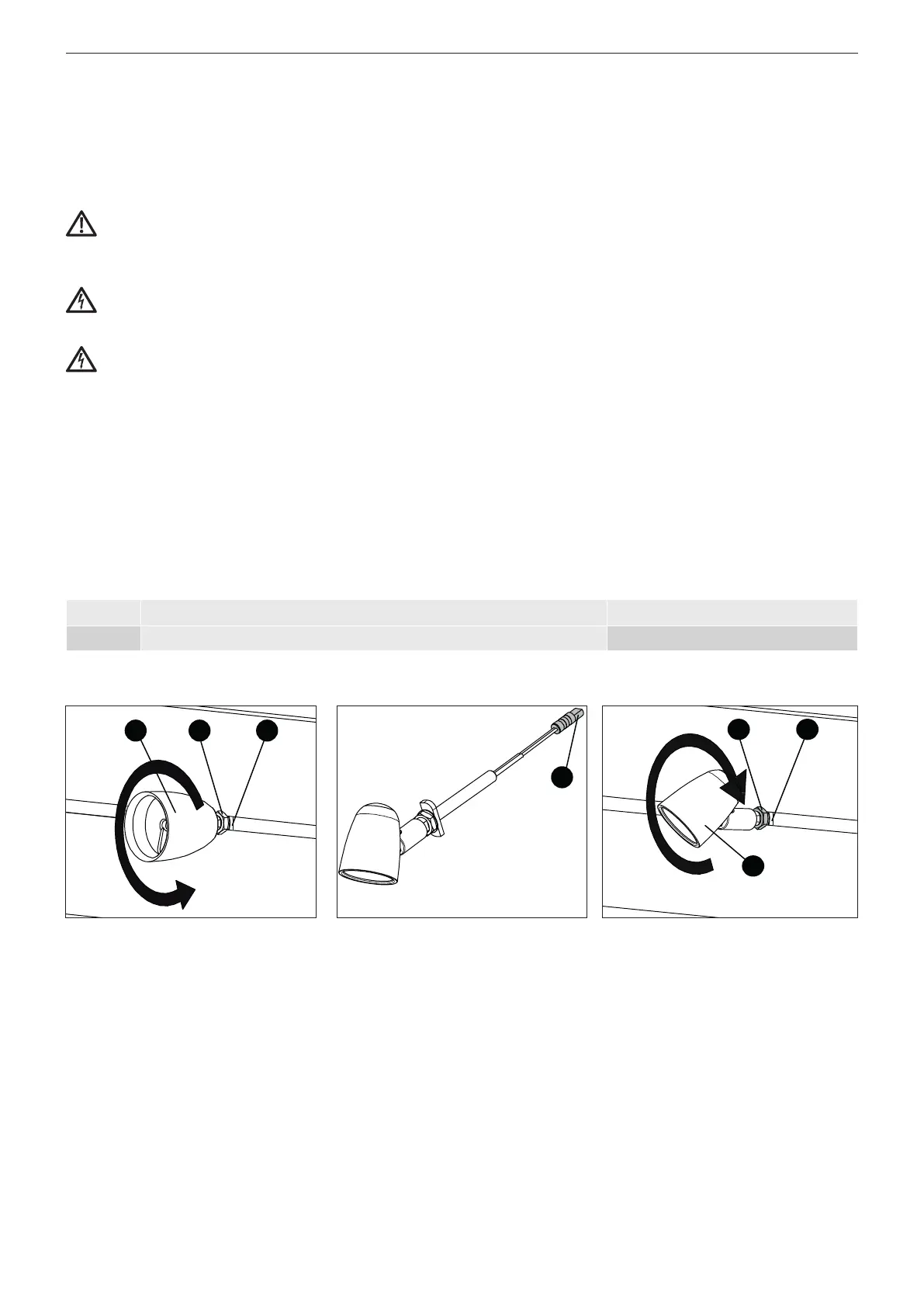

1. Loosen the hexagon nut (2) with a SW 13
spanner. Aerwards turn the defective LED
spotlight (1) by 90° to the le to bring the
pincher carriage (3) direction of the groove
and pull it out.
2. Disconnect the plug (4) of the defective
spot light from the mains and plug in the new
spot light.
Item no. new LED spotlight with plug: 714881
3. Insert the new LED spotlight (1) into the
track and turn by 90° clockwise to hook
the pincher carriage (3) into the groove.
Subsequently retighten the hexagon nut (2).
7.2 LED spotlights in the cover support tube
The following replacement parts are available via your markilux specialist dealer:
Repair and maintenance jobs such as the replacement of spare parts, a damaged outer flexible line or other electrical components, must be
carried out exclusively by the specialist dealer.
7 Replacement of a faulty illuminant for lighting
7.1 Overview spare parts lighting LED-Spots
7.2 LED line
markilux 779 tracfix / 879 tracfix
