10
1. Safety Information 10
2. Connecting the Transformer 11
3. Technical Data 11
4. Short Circuit or Overload 12
5. Connections for the Controler 12
6. Operation 13
1. Safety Information
Read the following safety information before using a
Märklin transformer for the first time:
• All transformers must be plugged only into an outlet
with the household current indicated on the face
plate of the transformer.
• This transformer is not a toy. It is designed for the
control of a model railroad layout.
• The transformer must be unplugged from the electri-
cal outlet before being moved. If the transformer has
been in operation, let it cool off before moving it.
• Inspect the condition of the power cord and the
transformer housing at regular intervals for damage.
This visual inspection should only be done when the
power cords for all of the transformers being used
are unplugged from the household current. If you
have the least suspicion that the transformer is dam-
aged, you should not use it again until it has been
thoroughly inspected and repaired by an authorized
service organization (example: Märklin Service
Department). The power cord for the transformer
must never be replaced. In this instance dispose of
the transformer in an authorized manner, or send it to
the Märklin Service Department for exchange.
• The permanently attached connector cable from the
power pack to the layout may not be changed. The
use of an extension cable or a distribution strip is not
permitted.

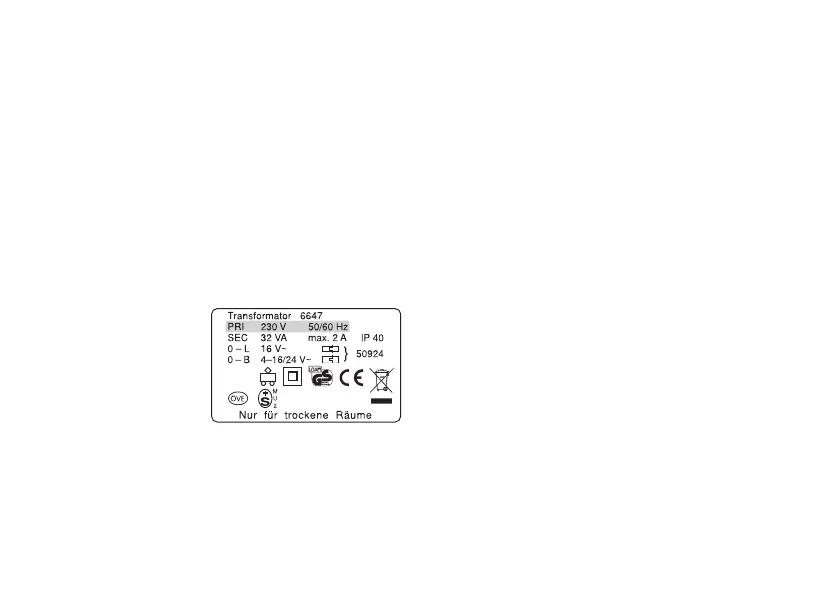

Example:
Identification plate for
the 230 volt transformer.
• This transformer is designed exclusively to be used
indoors.
• Mount the transformer on a sturdy base. Never oper-
ate the transformer on a base that is wet or that is
readily flammable.
