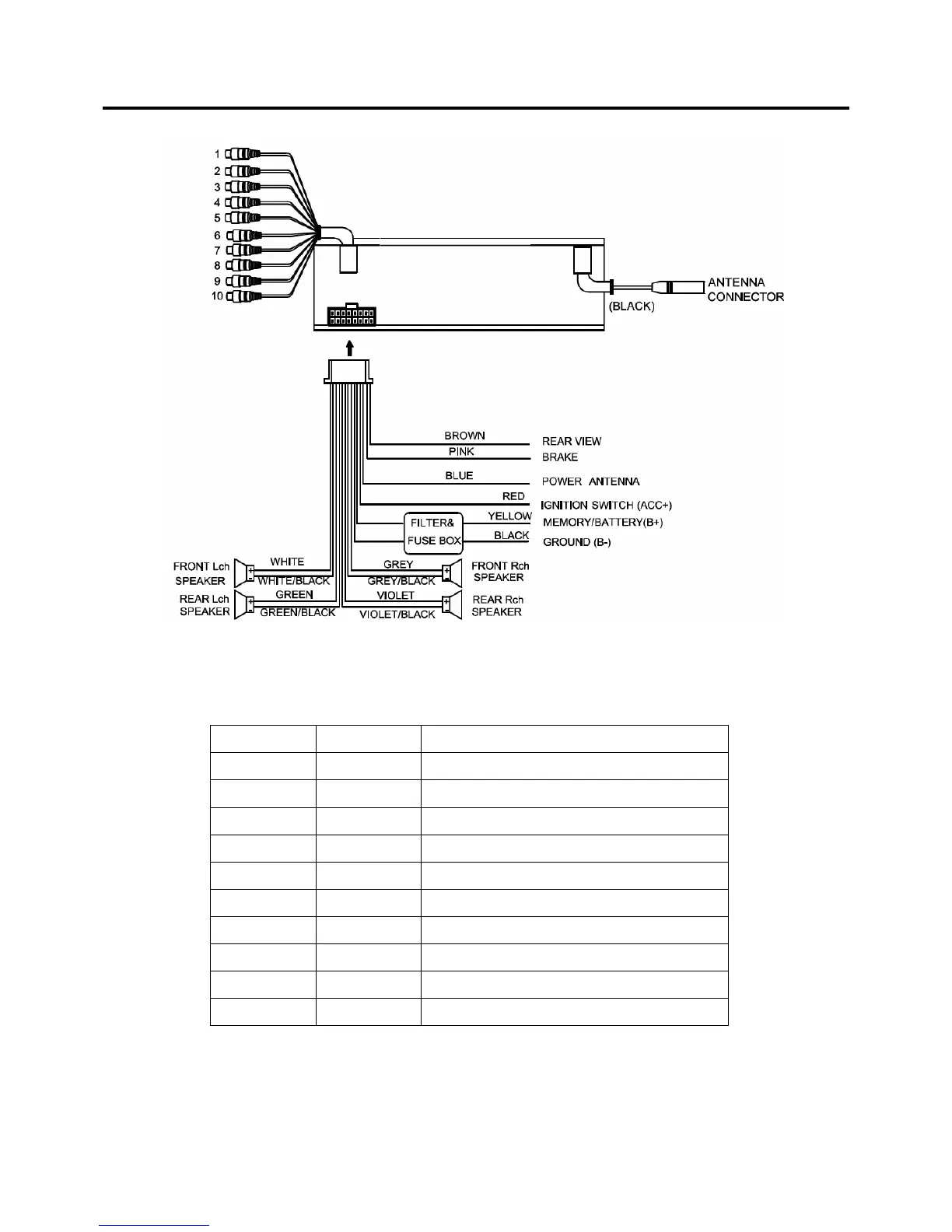

CONNECTIONS
Line No.
Line color Function (terminal color)
1 Black Auxiliary input right (RED)
2 Black Auxiliary input left (WHITE)
3 Black Auxiliary video input (YELLOW)
4 Green Rearview input (YELLOW)
5 Grey Video output 1 (YELLOW)
6 Grey Video output 2 (YELLOW)
7 Grey Rear RCA out right (RED)
8 Grey Rear RCA out left (WHITE)
9 Brown Front RCA out right (RED)
10 Brown Front RCA out left (WHITE)
11
