Marshall Amplification CV630-IP Manual

CV630-IP RS-232 Command Set
www.marshall-usa.com1 2
No Issue Date Description Apply Firmware
1 2020/02/13 First version. NA
2 2020/04/14
Add command:
1. CAM_Audio_Encode_Sample_
Rate
2. CAM_Audio_Delay_Enable
3. CAM_Audio_Delay_Time
VSU100_VSV101_
VSX118_
VSW117_VSY105_
VAA137_VAB110
*Notice:
1. The RS-232 command list is for CV630-IP
2. The yellow highlight means the latest update.
3. The blue highlight
means the deleted item.
3. ACK & Completion message
Reply Packet Note
Ack
X0 4Y FF Y = socket number
Completion (commands)
X0 5Y FF Y = socket number
Completion (Inquiries)
X0 50 ... FF
X = 9 to F==>camera address + 8 , Y=1 to 2
4. Error message
Error Packet Description
X0 60 02 FF
Syntax Error
X0 60 03 FF
Command buffer full
X0 6Y 04 FF
Command cancelled
X0 6Y 05 FF
No socket (to be cancelled)
X0 6Y 41 FF
Command not executable
X = 9 to F==>camera address + 8, Y = socket number, Y=0 to 2, 0: Inqurity not
execution
1. Communication Protocol
Transmit Method: Asynchronous Interface Half
Duplex Serial Communication
Transmit Speed: 9600bps or 38400bps
Start bit: 1Bit
Parity Check: NA
Data Bit: 8Bit
Stop Bit: 1Bit

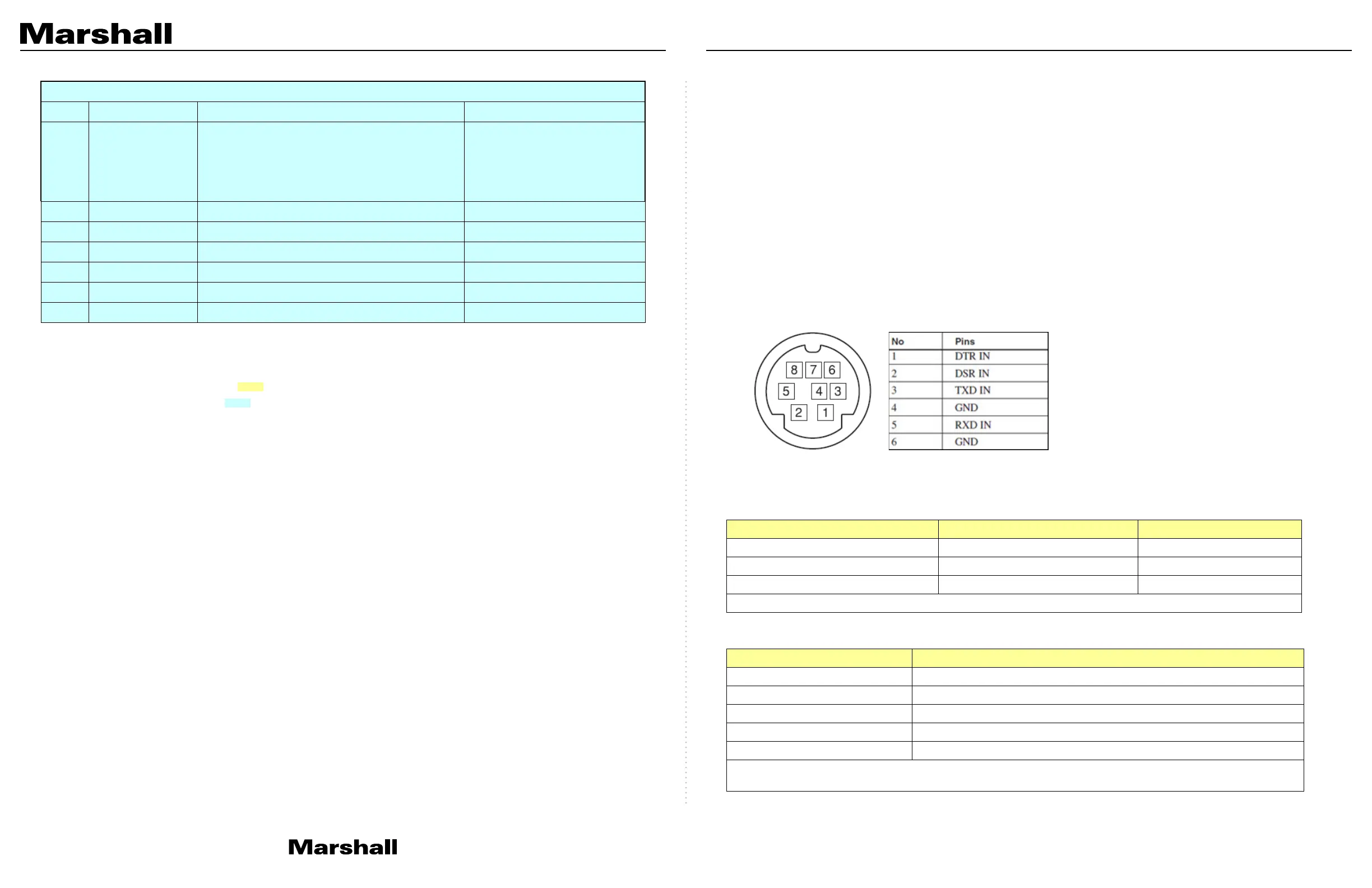

2. The Wire Diagram
The RS232 wire diagram between presenter
and remote controller as below
