Marshall Amplification CV630-IP - RS-232 Communication Setup; RS-422 Communication Setup

English - 17
4.3.5 Connecting RS-232
Up to 7 Marshall PTZ cameras can be connected with RS232 daisy chain

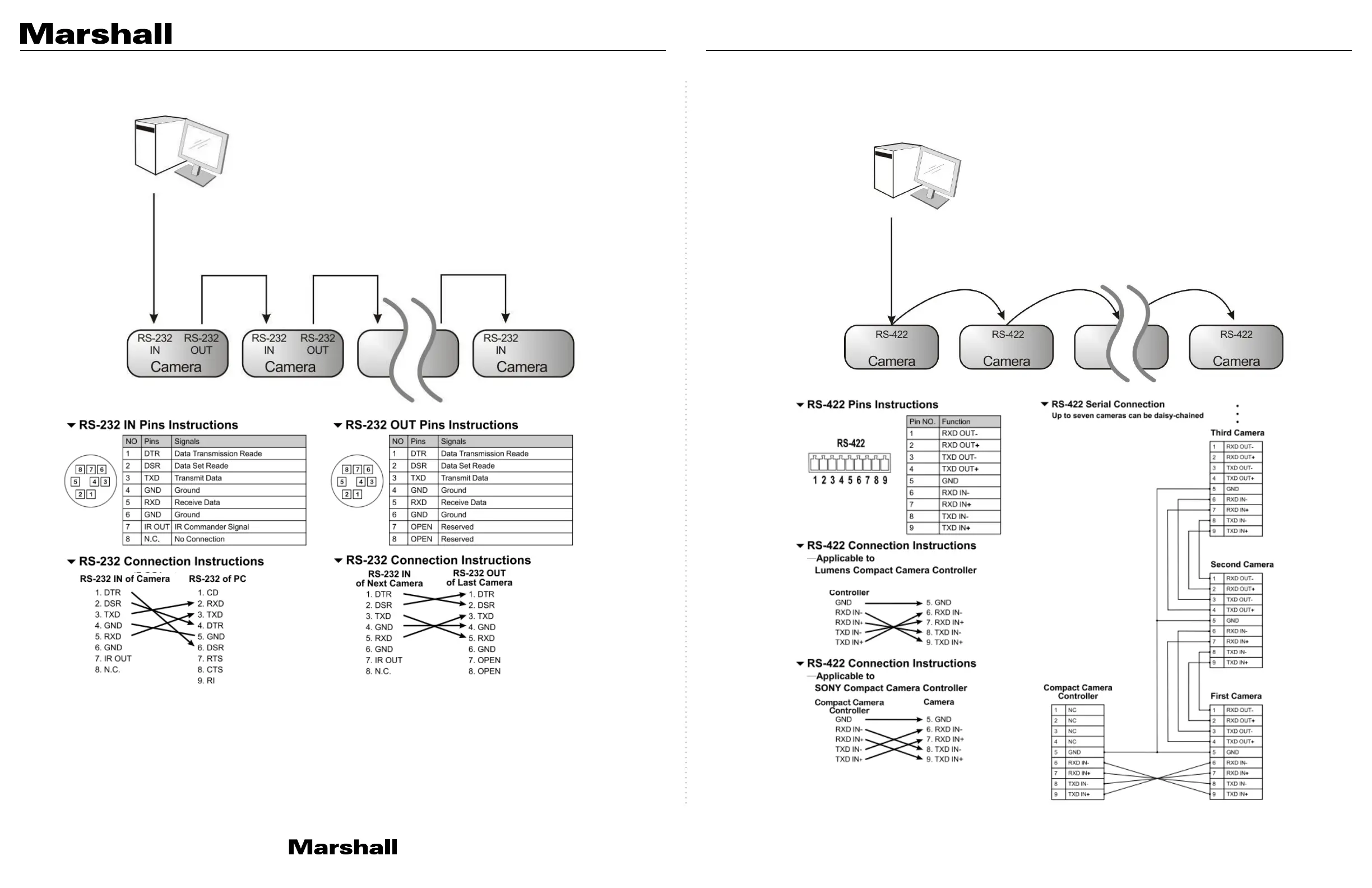

■ RS-232 pins definition instructions
English - 17
4.3.5 Connecting RS-232
Up to 7 Marshall PTZ cameras can be connected with RS232 daisy chain
■ RS-232 pins definition instructions
English - 17
4.3.5 Connecting RS-232
Up to 7 Marshall PTZ cameras can be connected with RS232 daisy chain
■ RS-232 pins definition instructions
English - 18
4.3.6 Connecting RS-422
Up to 7 Marshall cameras can be connected via RS422 daisy chain method.
When RS-422 connection is being used, keep RS-232 connections vacant.
■ RS-422 pins definition instructions
