6. Panel Descriptions
1. IR: Remote Sensor
2. LED: Signal indicator
3. INPUT SELECTION BUTTON: Input source selection
4. LED: Power indicator
5. Power: +5V DC latch-locking power connector
6. OUTPUT: 3G/HD/SD-SDI output
7. INPUT: 3G/HD/SD-SDI input 1-4
8. RS-232: Serial channel control / FW update

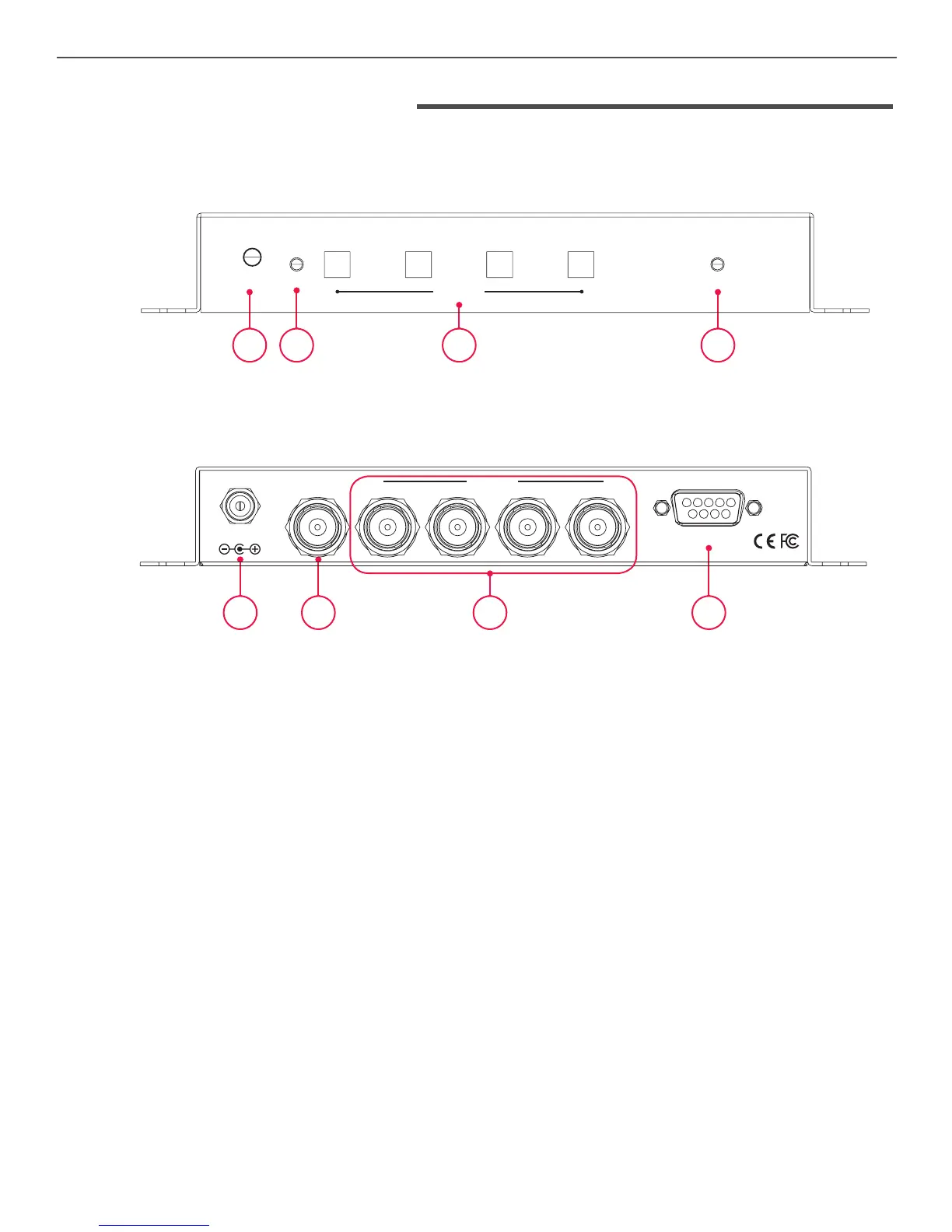

Front Panel
Rear Panel
1 32 4
Marshall
VSW-2000
5 6 7 8
SDI OUT
DC 5V
RS-232
Made in Taiwan
Marshall Electronics
SDI IN
VSW-2000 Manual
1
SIGNAL
IR RX
INPUTS
POWER
32 4
1 32 4
