12 /20
56208004-01
Installation instructions
The indoor unit is supplied with mains power cables pre-
connected.

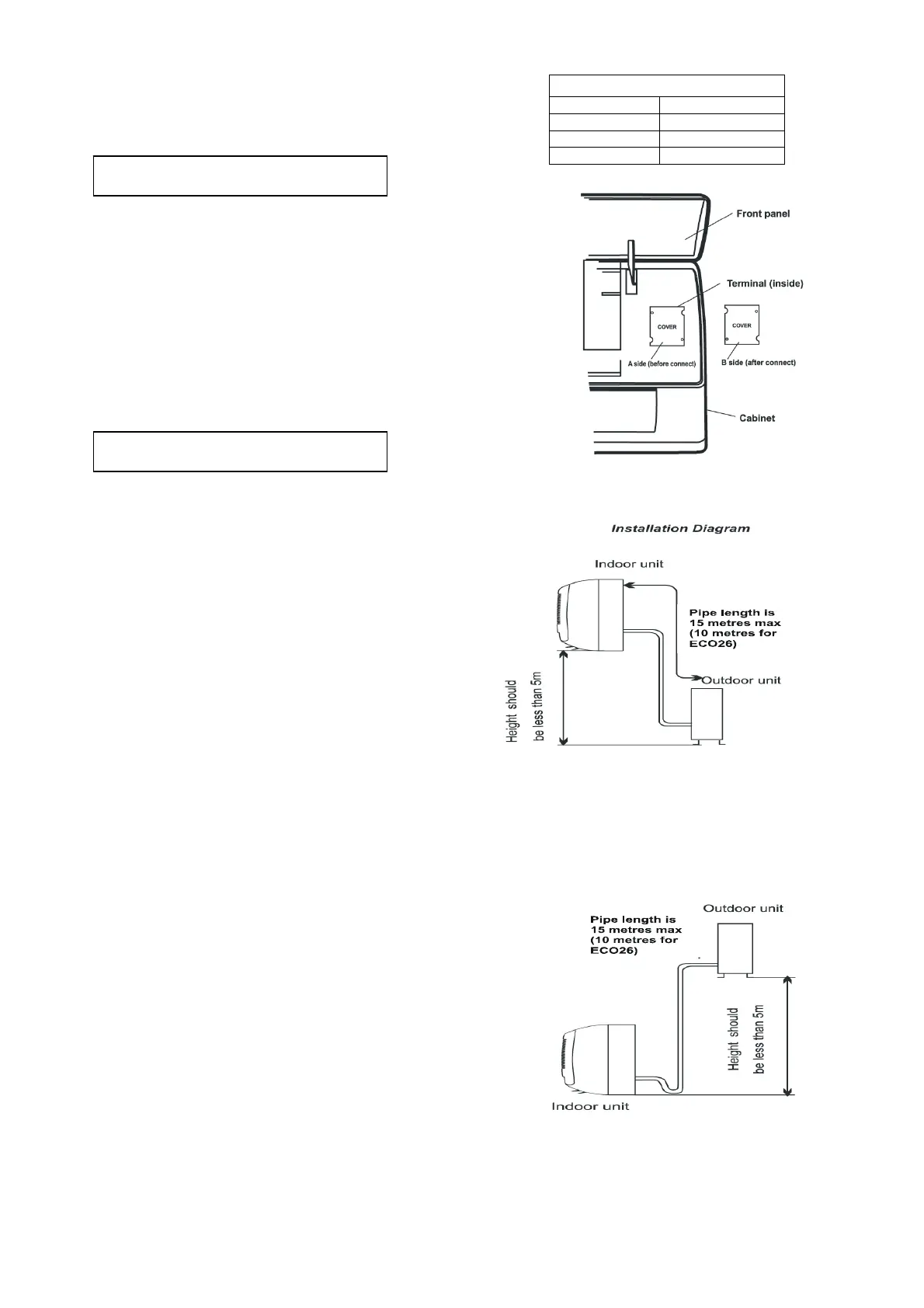

Remove cover to access the terminal block. Route
interconnecting cable through the rear of the unit and
connect to the terminal block as per table. Reverse cover
and fasten with screws provided.
Route all interconnecting cable along side the pipework to
the outdoor unit.
Indoor unit location.
• Ensure there is no obstruction to the air outlet
and air can be directed to all areas of the room.
• Ensure adequate access for pipe work.
• Space between ceilings and walls to be as in
the diagram on page 11.
• Ensure the air filter can be easily removed.
• Install more than 1m away from electronic
equipment such as televisions.
• Keep as far away as possible from
fluorescent light fittings.
• Do not obstruct the return air inlet.
• Ensure the wall is strong enough to support
the weight of the unit.
•
Mount level to ensure proper drainage.
Outdoor unit location.
• Install in a well-ventilated area with no obstructions
to the air outlet.
• Ensure the distance from the rear of the unit to the
wall is as per the diagram on Page 11.
• Install on a fixed base to prevent excessive vibration.
• If sited above the indoor unit fit an oil trap.
• Mount on a flat and level base.
Indoor
Brown Terminal L
Blue Terminal N
White Terminal 1
G/Yellow Earth Screw
Connecting the cable
Selecting the best location
