Installation instructions

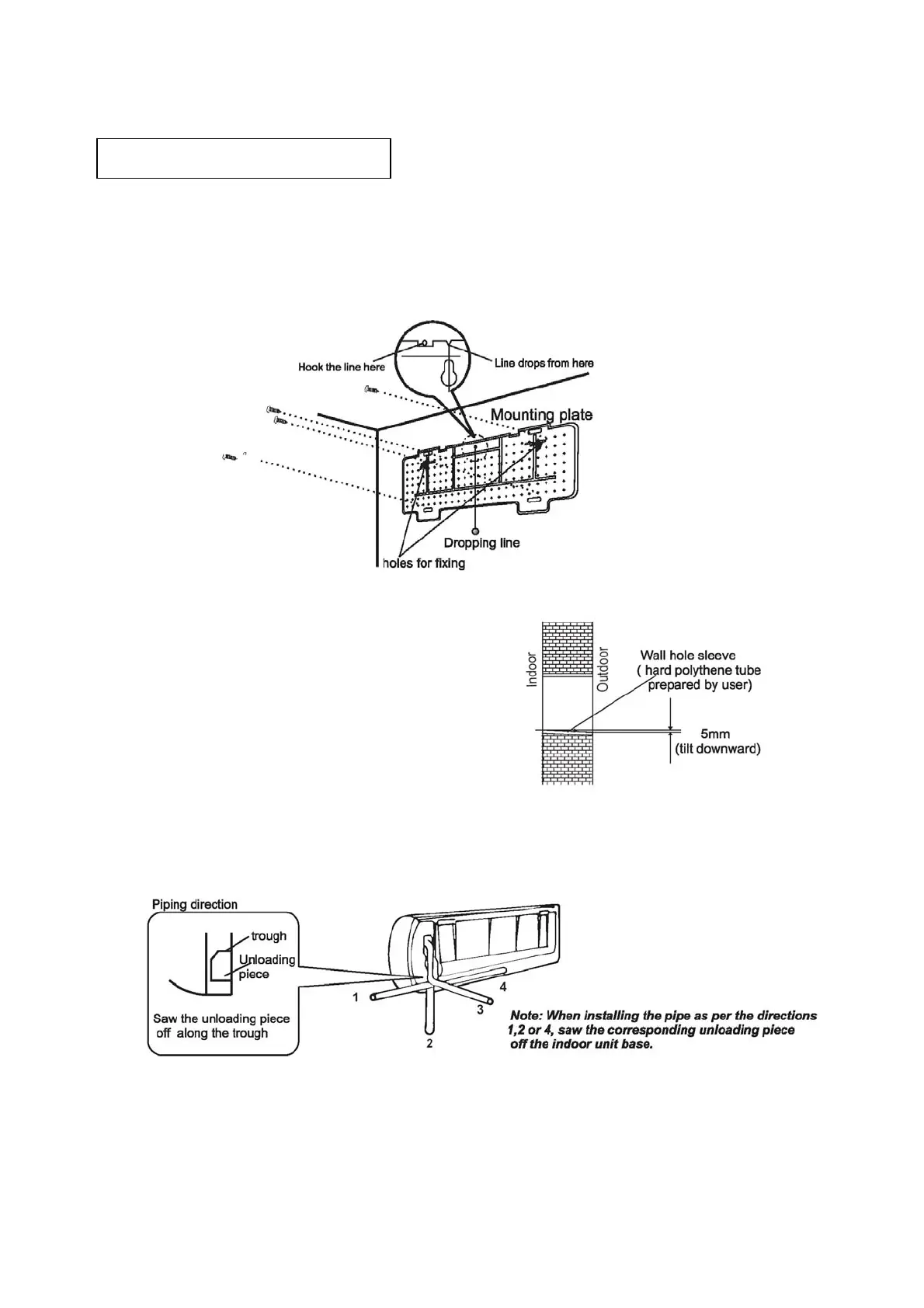

1. Installing the mounting plate
• Determine the location for the indoor unit.
• Place the mounting plate against the wall ensuring it is level.
• Mark the wall and drill holes to suit rawl plugs and screws to be used.
• Ensure the mounting plate is securely fixed then drill a hole through the wall for the pipes.
(Note: The shape of the mounting plate may differ from that shown in the diagram but installation is similar).
2. Drill a hole for the pipes for rear exit.
• Determine the position for the pipework
hole according to the location of the
mounting plate.
• Drill a hole through the wall
ø50-75mm. The hole
should slope down from inside to outside.
• Install a sleeve through the hole to protect
both the pipes and the wall.
3. Indoor unit pipework installation
• Run the pipework through the hole in the wall and connect to the outdoor unit.
• If the pipework is to exit the indoor unit through the side, cut the unloading piece to suit as in the
diagram below.
• After connecting the pipework, install and connect the drain hose, then connect the wiring.
• When all connections are made, wrap the pipes, cables and drain hose together with thermal
insulation tape.
Indoor unit installation
