— 12 —

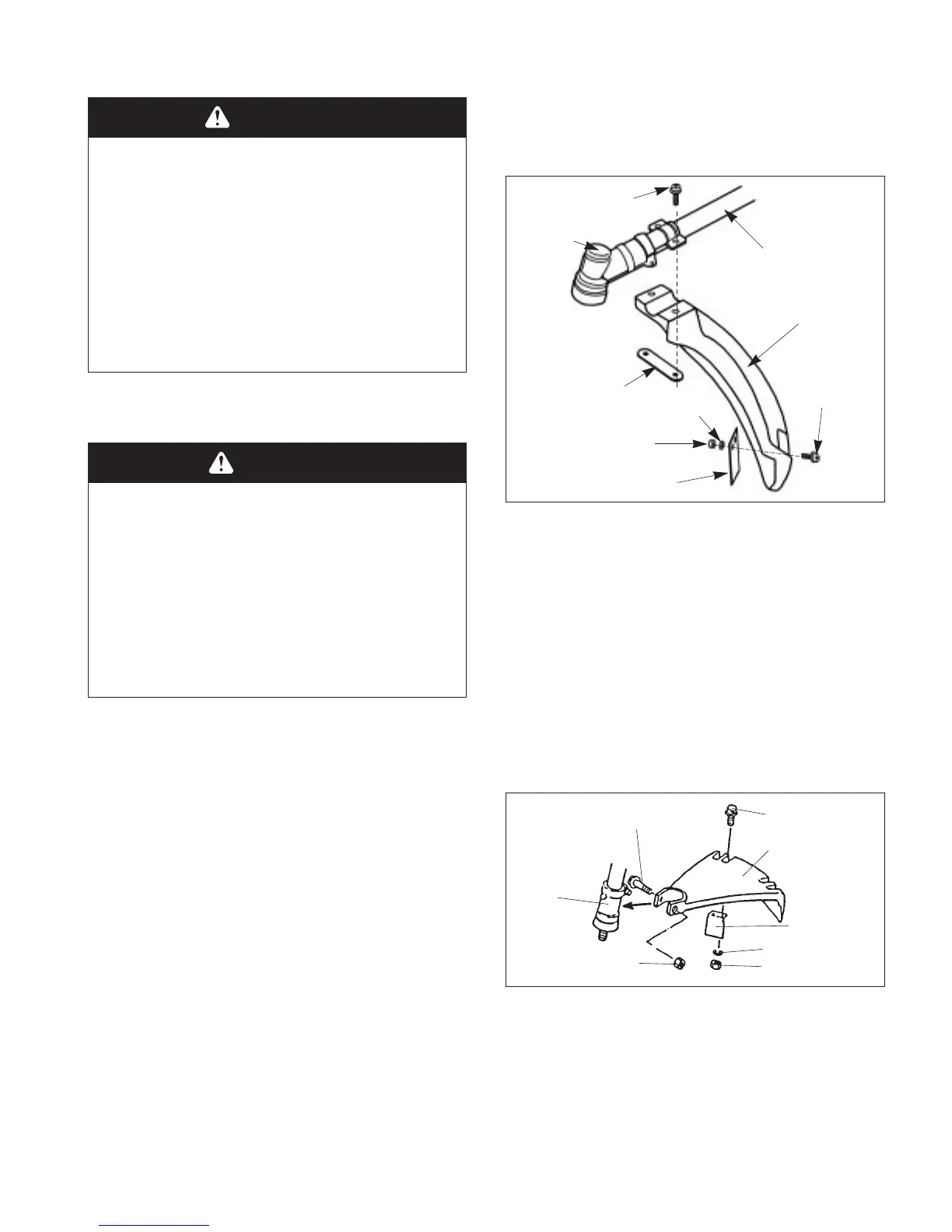

Installing Trimmer Head Shield
[Model: BST23]
1. Fasten the string cutoff blade to the trimmer head
shield with two M5 x 12 screws, lock washers and
hex nuts as shown.
2. Attach the trimmer head shield to the shaft with
the two M5 x 30 screws and plate as shown.
[Model BST23C]
1. Fasten the string cutoff blade to the trimmer head
shield with two M5 x 15 screws, hex nuts and lock
washers as shown.
2. Push the trimmer head shield onto the bearing
case. Install the M6 x 40 screw and nut, tighten
ONLY AS NEEDED.
CAUTION
POTENTIAL HAZARD
• The cutoff blade is sharp.
WHAT CAN HAPPEN
• Contact with cutoff blade could cause
serious cuts or personal injury.
HOW TO AVOID THE HAZARD
• Keep hands, feet and clothing away from
cutoff blade.
WARNING
POTENTIAL HAZARD
• Foreign objects can be thrown by
Trimmer.
WHAT CAN HAPPEN
• Contact with thrown objects can cause
personal injury.
HOW TO AVOID THE HAZARD
• Never operate the Trimmer without the
trimmer head shield in place.
Gearcase
Trimmer Head Shield
M5 x 30
Screw (2)
Shaft
Plate
Hex Nut
String Cutoff Blade
M5 x 12
Screw (2)
Lock Washer
M5 x 15 Screw (2)
Trimmer Head
Shield
String Cutoff
Blade
Lock Washer (2)
Hex Nut (2)
Hex Nut
Bearing Case
M6 x 40 Screw
To Next Page
