MASCOT 2015 - Technical Data and Connections

10

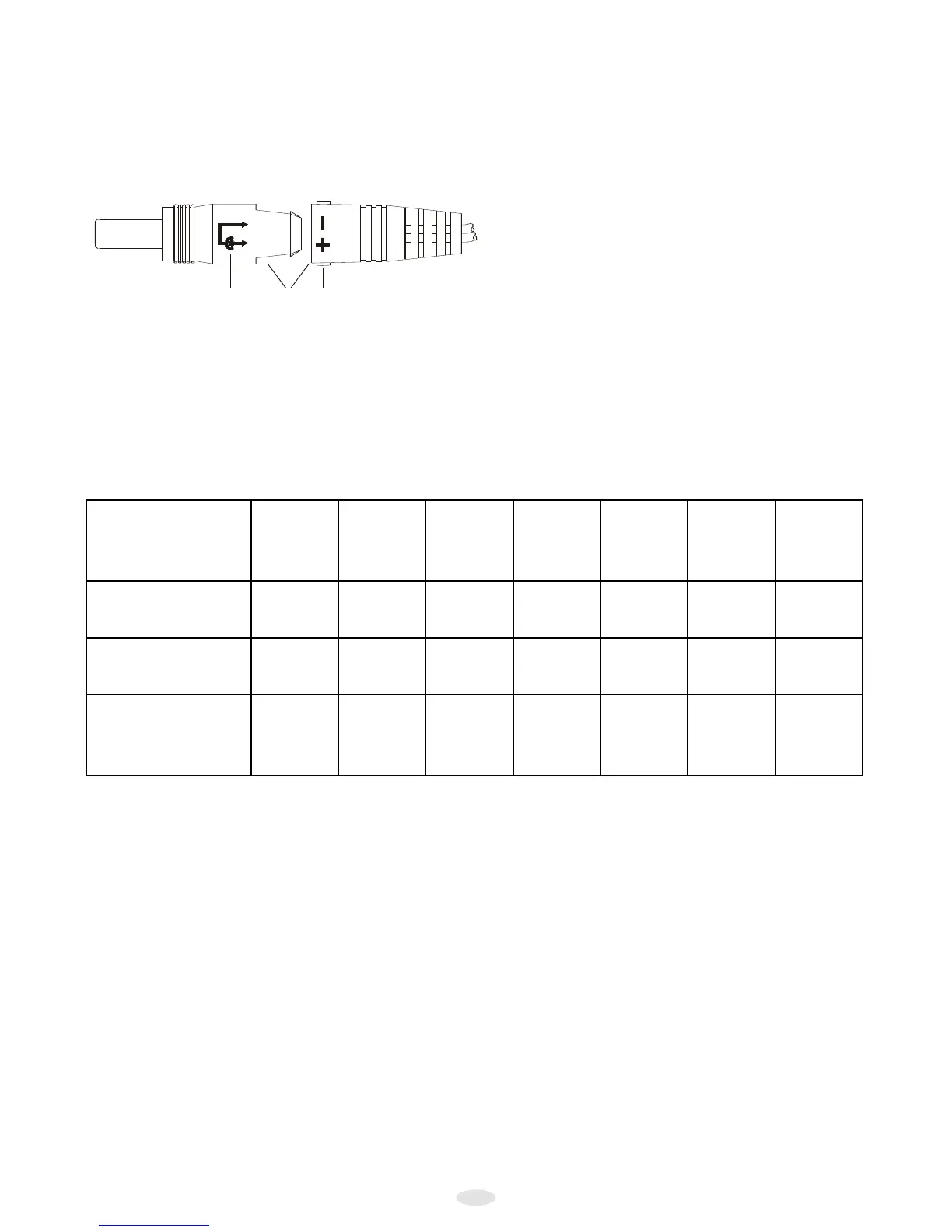

1. To connect for desired polarity, both plug ends
are clearly marked.
2. When connected, the female plug is also mar-
ked on each side to identify plug polarity.
3. Shows the center polarity of the plug.
3 1
2
3 1 2
How to connect exchangeable
DC-output plugs
Common technical data
NiCd/NiMH
versions:
(cells in series):
3-6
cell
4-8
cell
5-10
cell
6-12
cell
10-20
cell
12-25
cell
15-30
cell
No-Load Voltage
12.8 V
± 0.7 V
16.5 V
± 1.0 V
21.0 V
± 1.2 V
24.7 V
± 1.5 V
41.0 V
± 2.0 V
51 V
± 2 V
55 V
± 3 V
Min. output voltage
for -ΔV detection
3.7 V 5.0 V 6.2 V 7.5 V 12.5 V 15 V 19 V
Max. output
voltage for -ΔV
detection
10.8 V 14.4 V 18.0 V 21.6 V 36.0 V 45 V 49.5 V
