Start
timer
Safety timer (running out if no -dV detection)
Trickle charge
Charge current
Battery Voltage
Initiation*
(Yellow LED)
Fast charge
(Orange LED)
Trickle charge
(Green LED)
-dV
Top-off charge
(Green LED
w. yellow flash)
Start timer prevents
premature –dV
Sudden –dV not caused
by fully charged battery
is disregarded
• NiCd/NiMH chargers are designed for charging
NiCd and NiMH batteries only.
• Make sure you have the correct battery charger
for the battery you wish to charge. The number
of cells must correspond to the output indicated
on the charger. Never charge more battery
cells than the charger is made for.
• When charging separate battery cells, avoid
charging cells with different rest capacities at
the same time.
A new charge cycle starts by reconnecting battery at output or connecting/reconnecting mains
Cautions before charging NiCd
and NiMH batteries

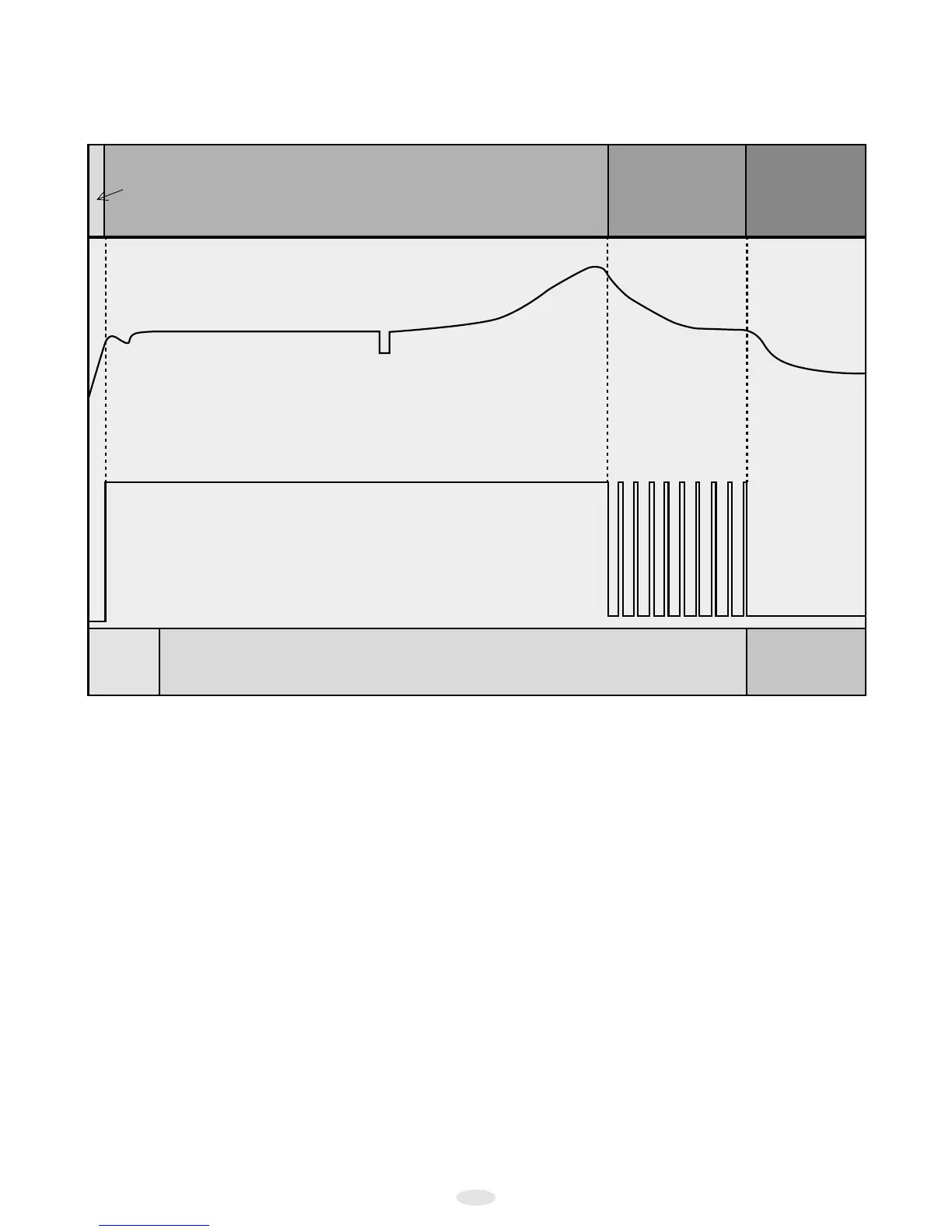

Mascot CPM charge diagram
