Mase IS 2.6 - 3 Typical Installation with the Generator below the Waterline; 4 Typical Installation with the Generator above the Waterline

IS 2.6
- 22
GB
GB

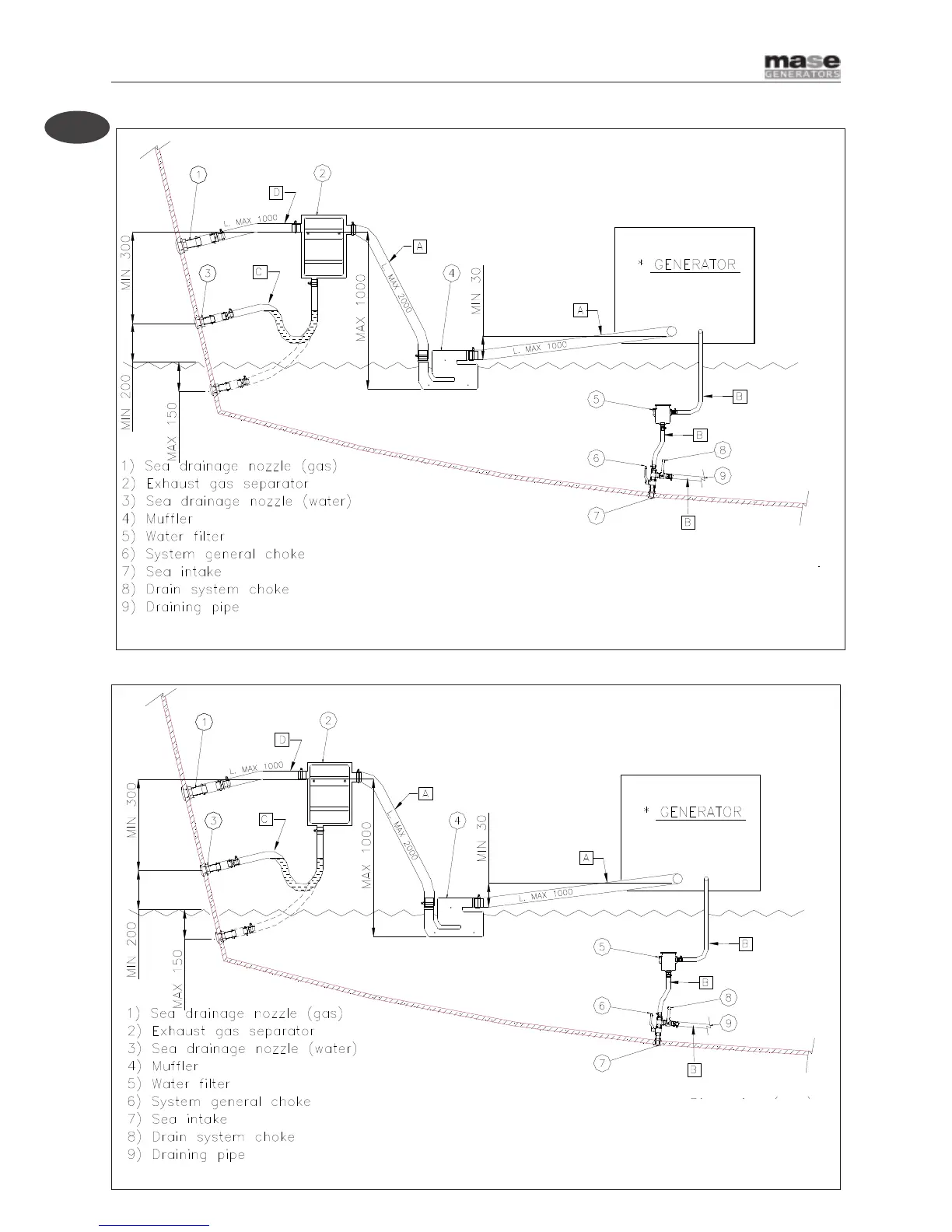

3.5.3 TYPICAL INSTALLATION WITH GENERATOR BELOW THE WATERLINE
3.5.4 TYPICAL INSTALLATION WITH GENERATOR ABOVE THE WATERLINE
Water/gas separator
Water/gas separator
IMPORTANT
A - Internal diameter pipe 45 mm.
B - Neoprene rubber pipe, internal diameter 16 mm.
C - Internal diameter pipe 40 mm.
D - Internal diameter pipe 25 mm.
IMPORTANT
A - Internal diameter pipe 45 mm.
B - Neoprene rubber pipe, internal diameter 16 mm.
C - Internal diameter pipe 40 mm.
D - Internal diameter pipe 25 mm.
Dimension (mm)
Dimension (mm)
