Masport F38-NG1 Owners & Installation

10 Masport F38-1 Freestanding Gas Stove
Notch
E)02-45
Bracket
A)02-65
The bottom right edge of Log G)02-48 must
sit snugly against the bracket
Side View
G)02-48
E)02-45
F)02-47
10)Position notch in Front Right Log G)02-48
on Log F)02-47 and push the bottom right
edge against the bracket on the burner
tray.
G)02-48
11)Test fire to ensure proper light off (make
sure flame flows smoothly from one end of
burner to the other. If there is any flame
hesitation, check that area for any block-
age of the burner port.
F)02-47
E)02-45
A)02-65
G)02-48
D)02-46
B)02-56
C)02-44
Cutout
Pin
D)02-46
B)02-56
A)02-65

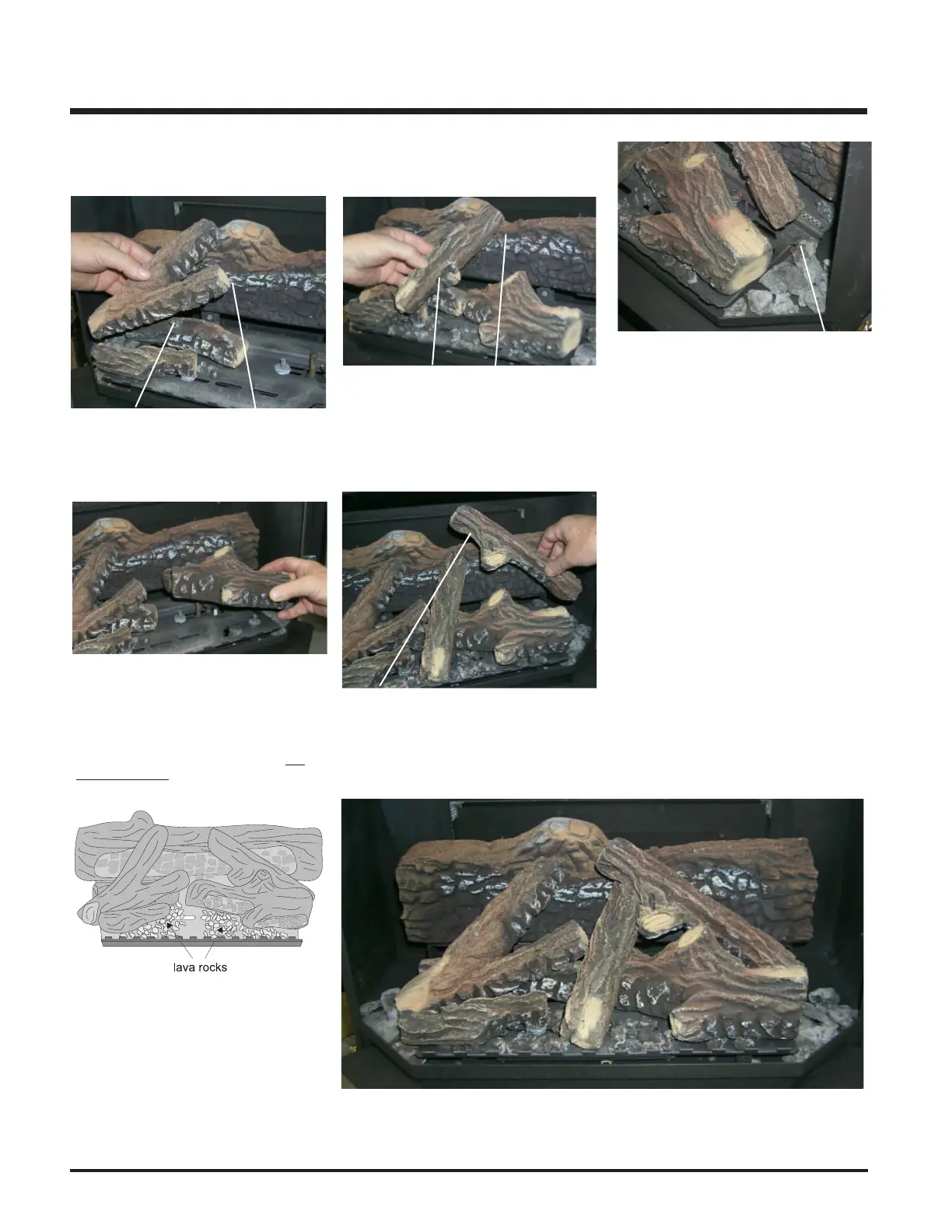

6) Place the Left Top Log D)02-46 on the pin
on Log B)02-56 and on top of the cutout on
Log A)02-65.
E)02-45
C)02-44
7) Place Front Right Log E)02-45 on the two
pins as shown.
8) Place the lava rock in the area between the
left and right logs, leaving a space in the
middle for log (F) 02-47.
CutoutNotch
F)02-47
E)02-45
A)02-65
9) Place the notch in Center Log F)02-47 over
Log E)02-45 and across the cutout on Log
A)02-65.
INSTALLATION
Ensure that the lava rocks are not
placed directly over the burner ports.
